TFF cassettes Vivaflow® SU, serial run
For the serial run of both cassettes with 500 to 1000 ml volume.

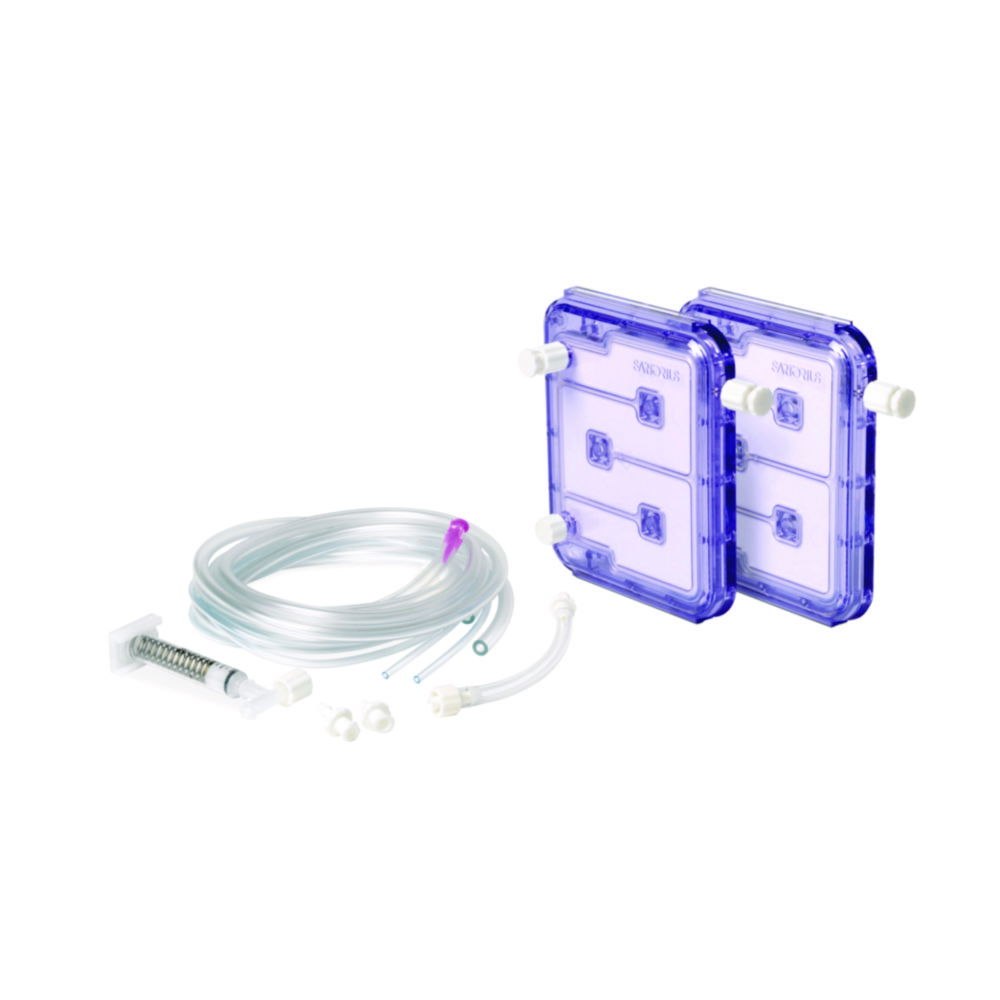

Scope of supply: 2 x cassettes, 1 x feed tubing, 1 x serial connector, 2 x permeate tubing, 1 x pressure indicator, 1 x retentate tubing with restrictor
Toote variatsioonid
| Depth | Height | Material membrane | Max. MWCO | Catalog number | Width | PK | Dimensions (WxDxH) | MWCO | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| 13 mm | 116 mm | PES | 5 kD | 4.704 905 | 98 mm | 2.00 | 98 x 13 x 116 mm | 5 kD | ||
| 13 mm | 116 mm | PES | 10 kD | 4.704 907 | 98 mm | 2.00 | 98 x 13 x 116 mm | 10 kD | ||
| 13 mm | 116 mm | PES | 50 kD | 4.704 911 | 98 mm | 2.00 | 98 x 13 x 116 mm | 50 kD | ||
| 13 mm | 116 mm | PES | 300 kD | 4.704 915 | 98 mm | 2.00 | 98 x 13 x 116 mm | 300 kD | ||
| 13 mm | 116 mm | PES | 100 kD | 4.704 913 | 98 mm | 2.00 | 98 x 13 x 116 mm | 100 kD | ||
| 13 mm | 116 mm | Regenerated cellulose (RC) | 2 kD | 4.704 921 | 98 mm | 2.00 | 98 x 13 x 116 mm | 2 kD | ||
| 13 mm | 116 mm | PES | 1000 kD | 4.704 917 | 98 mm | 2.00 | 98 x 13 x 116 mm | 1000 kD | ||
| 13 mm | 116 mm | Regenerated cellulose (RC) | 5 kD | 4.704 923 | 98 mm | 2.00 | 98 x 13 x 116 mm | 5 kD | ||
| 13 mm | 116 mm | Regenerated cellulose (RC) | 10 kD | 4.704 925 | 98 mm | 2.00 | 98 x 13 x 116 mm | 10 kD | ||
| 13 mm | 116 mm | Regenerated cellulose (RC) | 30 kD | 4.704 927 | 98 mm | 2.00 | 98 x 13 x 116 mm | 30 kD | ||
| 13 mm | 116 mm | PES | 30 kD | 4.704 909 | 98 mm | 2.00 | 98 x 13 x 116 mm | 30 kD | ||
| 13 mm | 116 mm | Regenerated cellulose (RC) | 300 kD | 4.704 931 | 98 mm | 2.00 | 98 x 13 x 116 mm | 300 kD | ||
| 13 mm | 116 mm | Regenerated cellulose (RC) | 100 kD | 4.704 929 | 98 mm | 2.00 | 98 x 13 x 116 mm | 100 kD |
