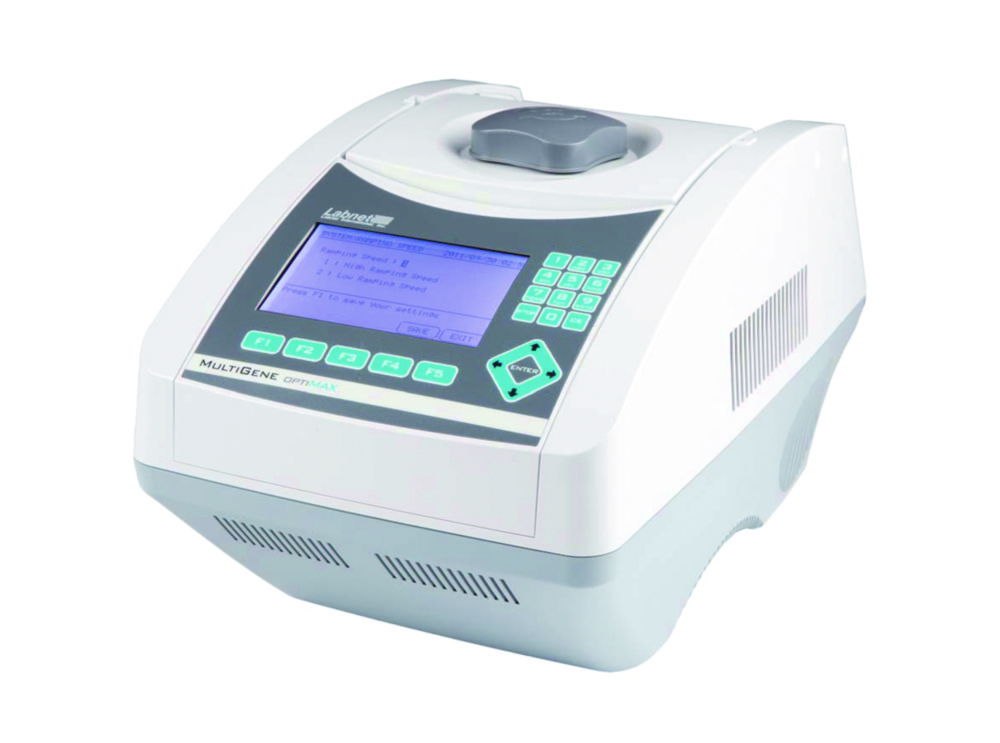

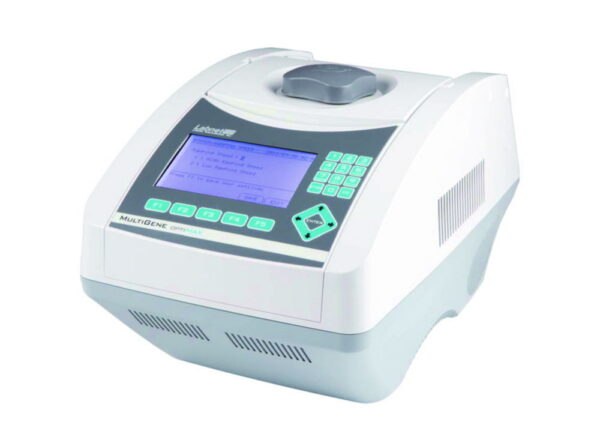

Thermocycler MultiGene™ OptiMax

This simple to program PCR thermocycler unit is compact in design, programming is intuitive with the large display and multiple pre-programmed templates supplied with the unit. The OptiMax comes with standard built in 2-step, temperature optimization, touchdown and time increment protocols that are easy to adjust to meet cycling needs. Select lid temperature or turn it off.

• Flexible Programming with FlexTemp™ technology
• Fast ramp rates 5 °C heating / 3.5 °C cooling
• No condensation after overnight cooling at 4 °C
• Individual temperature setting for each block
• Password protected programs
• Simple user interface
• With USB and RS232 interface

• Specifications:
• Sample capacity: 1 x 96 well plate, 12 x strip tubes (8 x 0.2 ml), 96 x 0.2 ml tubes
• Programmable temperature range: 4 °C … 99.9 °C
• Temperature control: Calculated or block
• Temperature accuracy/uniformity: ±0.5 °C/±0.5 °C
• Heating/cooling method: Peltier
• Max. heating/cooling rate: ±5 °C/±3.5 °C per second
• Temperature range of 6-segment blocks: 30 °C … 99 °C (can be set independently)
• Maximum temperature difference between 6-segment blocks:
  ±24 °C
• Programmable lid temperature: 60 °C … 65 °C, 100 °C … 115 °C
• Program memory:
  User program folders: 200 complete programs
  50 sets
• Dimensions (W x D x H): 240 x 420 x 250 mm
• Weight: 9 kg
• Supply requirements: 230 V, 50/60 Hz*
