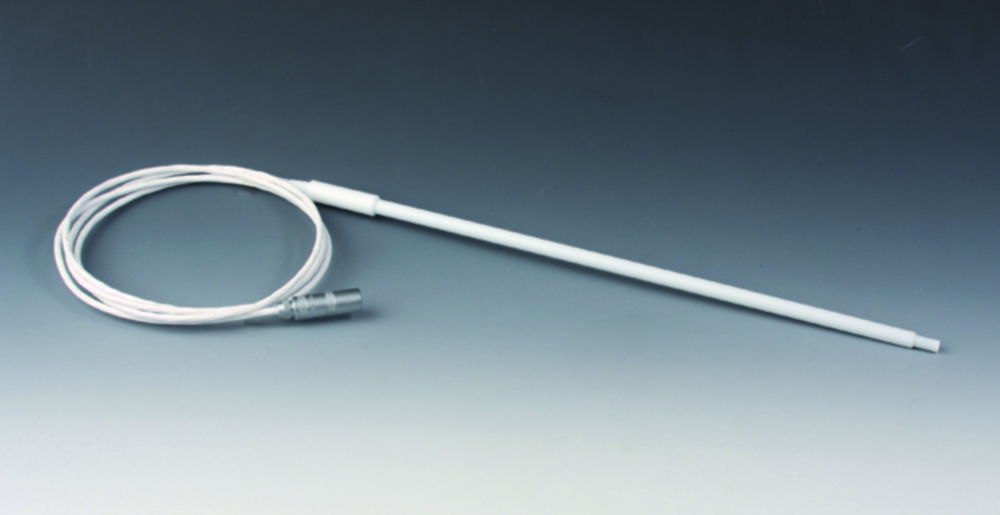

Thermoprobe Bola – Lemo Type Pt100
Ideal for measuring temperature in agressive media. The probe is housed in a stainless steel tube and therefore still has the necessary flexiblity. It can be gently manoeuvred into the right direction. The additional PTFE-coating gives the important chemical resistance. For a direct and quick measurement the PTFE-coating is reduced at the measuring tip (5.5 mm diameter). The connector is a size 1 Lemo-type, with 4-lead cable. The cable has a total length of 1500 mm and is also well coated with PTFE. Temperature resistance maximum +300°C and minimum -70°C, without charge.
Toote variatsioonid
| Catalog number | PK | Cable length | Connection plug | Ø | Length | Material | Max. temperature | Min. temperature | Temperature | Type of probe | Usable length | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.243 231 | 1.00 | 1.5 m | Lemo | 8 mm | 260 mm | PTFE | 250 °C | -50 °C | -50 ... 250 °C | Pt 100 | 200 mm | ||
| 9.243 234 | 1.00 | 1.5 m | Lemo | 8 mm | 660 mm | PTFE | 250 °C | -50 °C | -50 ... 250 °C | Pt 100 | 600 mm | ||
| 9.243 232 | 1.00 | 1.5 m | Lemo | 8 mm | 360 mm | PTFE | 250 °C | -50 °C | -50 ... 250 °C | Pt 100 | 300 mm | ||
| 9.243 230 | 1.00 | 1.5 m | Lemo | 8 mm | 160 mm | PTFE | 250 °C | -50 °C | -50 ... 250 °C | Pt 100 | 100 mm | ||
| 9.243 233 | 1.00 | 1.5 m | Lemo | 8 mm | 560 mm | PTFE | 250 °C | -50 °C | -50 ... 250 °C | Pt 100 | 500 mm |
