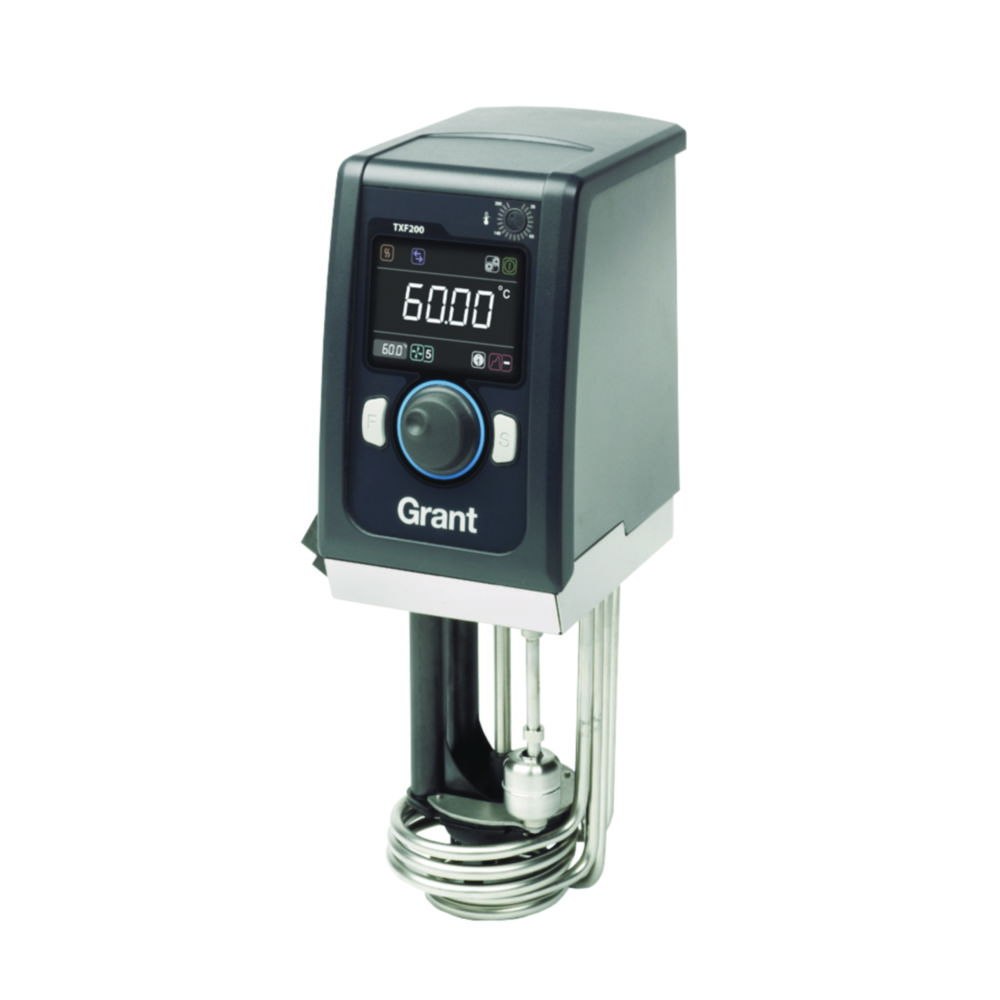

Thermostatic controller Optima™ TXF200

Combine with a plastic or stainless steel tank or with an accessory T-clamp for independent use. The advanced heating circulator features a modern, icon driven programming interface and full colour display.

• Large, bright full colour display
• Visual and audible alarm
• Timer from 1 min to 99 h 59 min
• 5 point recalibration
• Adjustable over temperature cut-out
• Pump for external circulation
• External temperature probe
• Progammable: Direct via user interface or remote via PC/labtop, 10 programs/100 segments
• Relay output to enable control of an external device
• USB and RS232 interface

For use at temperatures below RT, the C1G or C2G cooler must be ordered additionally.

Models with clamps available on request.

• Specifications
  Temperature range with stainless steel tank
• TX150:
  TXF200: RT + 5 °C … 150 °C
  RT + 5 °C … 200 °C
• Stability / Uniformity (DIN 12876) at 70 °C: ±0.01 °C / ±0.05 °C
• Setting resolution: 0.1 °C (0.01 °C with Labwise)
• Display: QVGA TFT
• Timer: 1 min to 99 hrs 59 mins
• No. of pre-set temperatures: 3
• Recalibration points: 5
• Heating power (230 V):
  Power supply (230 V / 50-60 Hz): 1.9 kW
  2.0 kW
• Interface: USB and RS232
• Pump max. pressure
• TX150: 310 mbar
• TXF200: 530 mbar
• Flow rate max.
• TX150:
  TXF200: 18 l/min
  22 l/min (adjustable)
