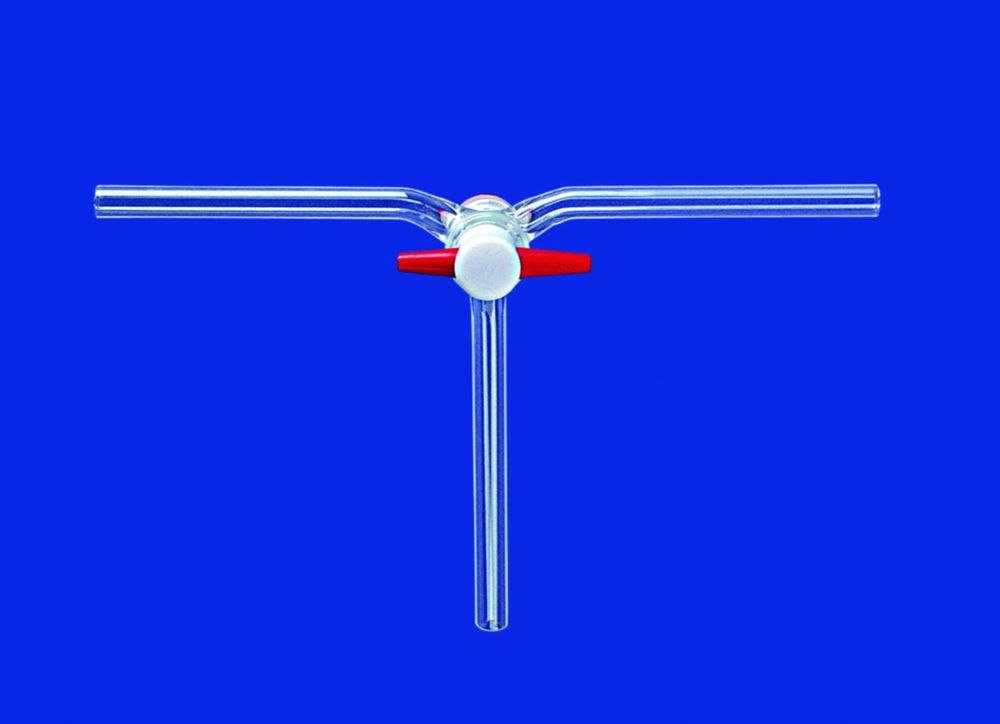

Three-way stopcocks acc. to Czako, borosilicate glass 3.3
Three-way stopcocks (Czako) acc. to DIN 12563. Angled bore 120°, with solid glass or PTFE plug. Leakage rate to DIN 12540-1.
Toote variatsioonid
| Bore | Ground size | Material | Stopcock with | Catalog number | Shape (Stopcocks) | Standard | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| 4.0 mm | NS 18,8 | Boro 3.3 | PTFE key | 9.116 135 | 3-way, 120° | DIN 12563 | 1.00 | ||
| 2.5 mm | NS 14,5 | Boro 3.3 | Glass key | 9.116 113 | 3-way, 120° | DIN 12563 | 1.00 | ||
| 2.5 mm | NS 14,5 | Boro 3.3 | PTFE key | 9.116 133 | 3-way, 120° | DIN 12563 | 1.00 |
