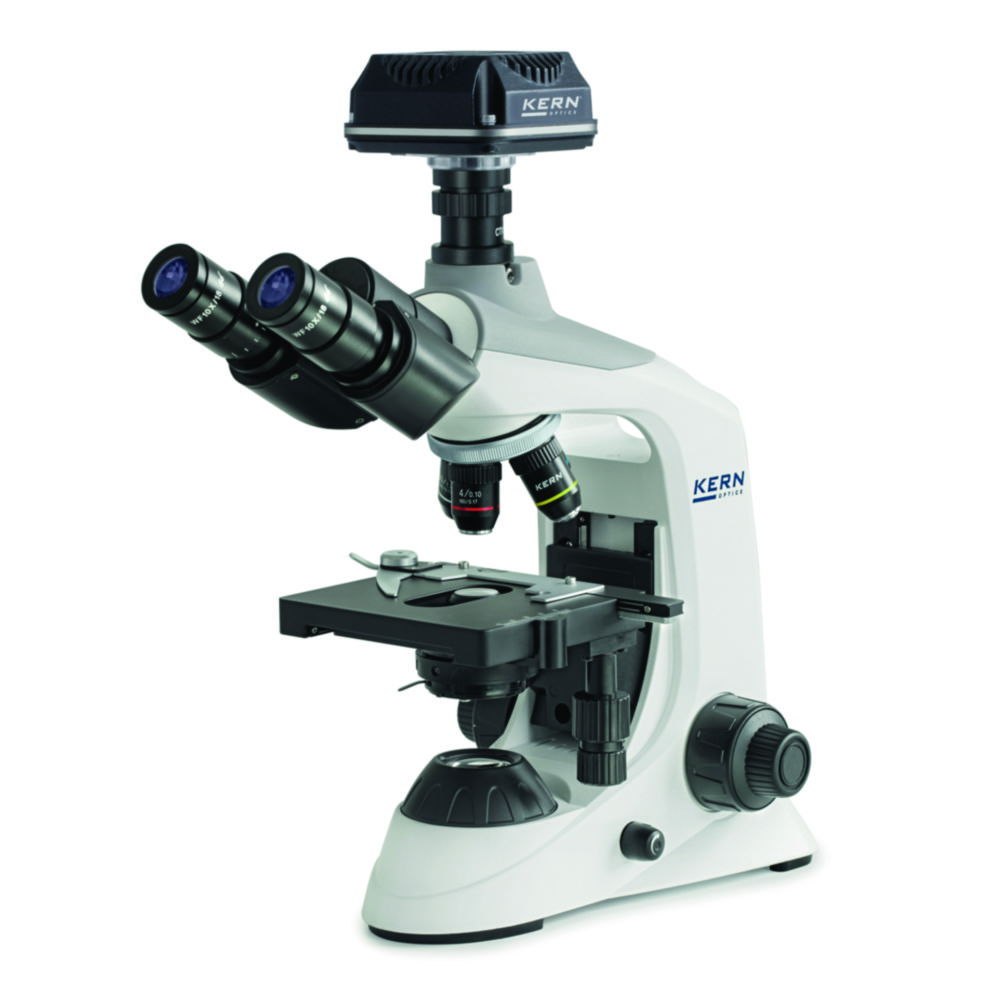

Transmitted light microscope-digital set OBE, with C-mount camera
The set is the comprehensive digital solution for school, training and laboratory.
- Tube 30° inclined, 360° rotatable
- Diopter adjustment at one eyepiece tube
- Coaxial pre-and fine focussing
- ABBE 1,25 N.A. condensor focussed with aperture diaphragm
- Dimmable 3 W LED illumination
Scope of supply:
Transmitted light microscope, camera, C-Mount adapter, dust cover, eye cups, manual instruction
Toote variatsioonid
| Condenser | Depth | Depth stage | Dimensions (WxDxH) | Height | Interfaces | Light type | Max. voltage | Catalog number | Plug type | Power supply | Revolving nosepiece | Sensor | Stage (WxD) | Tube | Type | Weight | Width | Width stage | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Abbe N.A. 1,25 | 180 mm | 115 mm | 320 x 180 x 365 mm | 365 mm | USB 3.0 (14,2 ... 101,2 FPS) | LED | 230 V | 6.324 983 | EU | 230 V, 50 Hz | 4-fold | CMOS 1/2,5" | 125 x 115 mm | Trinocular | OBE 134C832 | 5.5 kg | 320 mm | 125 mm | 1.00 | ||
| Abbe N.A. 1,25 | 180 mm | 115 mm | 320 x 180 x 365 mm | 365 mm | USB 2.0 (6,8 ... 55 FPS) | LED | 230 V | 4.691 071 | EU | 230 V, 50 Hz | 4-fold | CMOS 1/2,5" | 125 x 115 mm | Trinocular | OBE 134C825 | 5.5 kg | 320 mm | 125 mm | 1.00 | ||
| Abbe N.A. 1,25 | 180 mm | 115 mm | 320 x 180 x 365 mm | 365 mm | USB 3.0 (14,2 ... 101,2 FPS) | LED | 230 V | 4.691 069 | EU | 230 V, 50 Hz | 4-fold | CMOS 1/2,5" | 125 x 115 mm | Trinocular | OBE 124C832 | 5.5 kg | 320 mm | 125 mm | 1.00 | ||
| Abbe N.A. 1,25 | 180 mm | 115 mm | 320 x 180 x 365 mm | 365 mm | USB 2.0 (6,8 ... 55 FPS) | LED | 230 V | 4.691 068 | EU | 230 V, 50 Hz | 4-fold | CMOS 1/2,5" | 125 x 115 mm | Trinocular | OBE 124C825 | 5.5 kg | 320 mm | 125 mm | 1.00 |
