Tube Furnaces

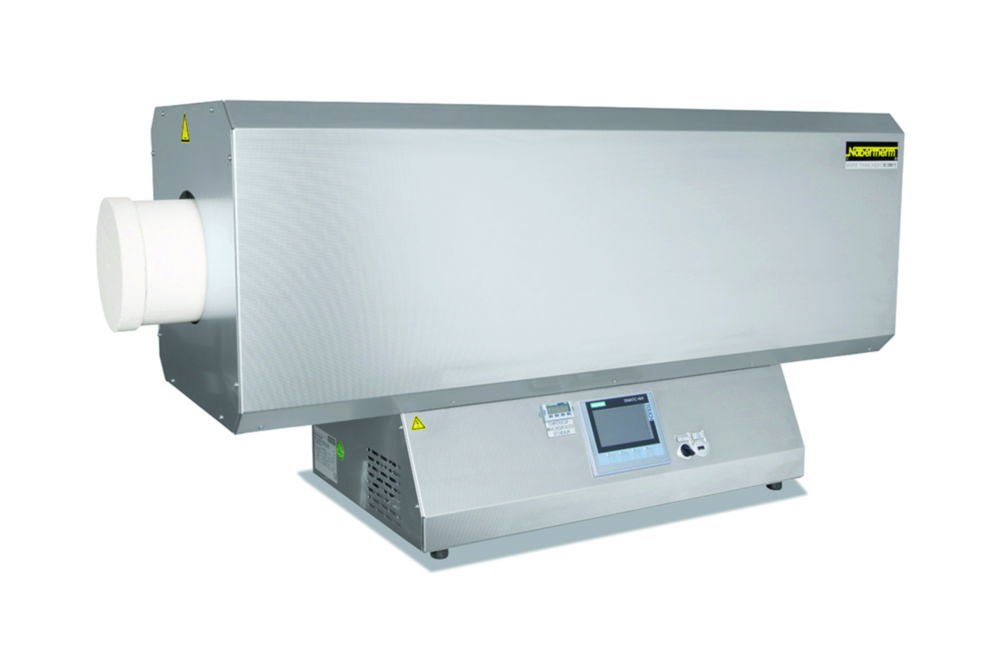

These compact tube furnaces with integrated control systems can be used universally for many processes. Equipped with a standard working tube of C 530 ceramic and two fiber plugs, these tube furnaces have an unbeatable price/performance ratio.
- Tmax 1200 °C or 1300 °C
- Single-zoned design as standard
- Dual shell housing made of sheets of textured stainless steel
- Outer tube diameter of 50 to 170 mm, heated length from 250 to 1000 mm
- Working tube of C 530 ceramic including two fiber plugs as standard equipment
- Solid state relays provide for lownoise operation
- Available with the programmable controllers B 510, C 550 and P 580 (for three-zoned design) with adjustable ramps and hold times
- Standard power supply 400 V 3/N/PE 50/60 Hz (R 50/250 und R 50/500: 220 V, 1/N/PE, 50/60 Hz)
Option:
- Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load
- Charge control with temperature measurement in the working tube and in the furnace chamber outside the tube
- Three-zoned design (heated length from 500 mm)
- Working tubes
- Gas supply systems for protective gas or vacuum operation
- Process control and documentation with VCD software package
Toote variatsioonid
| PK | Dimensions (WxDxH) | Height | Length tube | Max. ext. tube Ø | Max. temperature | Rated capacity | Catalog number | Depth | Type | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.00 | 670 x 410 x 578 mm | 578 mm | 700 mm | 120 mm | 1200 °C | 6.5 W | 4.660 556 | 410 mm | R 120/500/12/P580 | 670 mm | ||
| 1.00 | 670 x 340 x 508 mm | 508 mm | 700 mm | 50 mm | 1200 °C | 2.3 W | 4.660 555 | 340 mm | R 50/500/12/P580 | 670 mm | ||
| 1.00 | 920 x 460 x 628 mm | 628 mm | 1070 mm | 170 mm | 1200 °C | 10.0 W | 4.660 557 | 460 mm | R 170/750/12/P580 | 920 mm | ||
| 1.00 | 434 x 340 x 508 mm | 508 mm | 450 mm | 50 mm | 1300 °C | 1.6 W | 4.660 559 | 340 mm | R 50/250/13/C550 | 434 mm | ||
| 1.00 | 670 x 340 x 508 mm | 508 mm | 700 mm | 50 mm | 1300 °C | 2.3 W | 4.660 561 | 340 mm | R 50/500/13/C550 | 670 mm | ||
| 1.00 | 670 x 410 x 578 mm | 578 mm | 700 mm | 120 mm | 1300 °C | 6.5 W | 4.660 564 | 410 mm | R 120/500/13/C550 | 670 mm | ||
| 1.00 | 670 x 340 x 508 mm | 508 mm | 700 mm | 50 mm | 1300 °C | 2.3 W | 4.660 562 | 340 mm | R 50/500/13/P580 | 670 mm | ||
| 1.00 | 670 x 410 x 578 mm | 578 mm | 700 mm | 120 mm | 1300 °C | 6.5 W | 4.660 565 | 410 mm | R 120/500/13/P580 | 670 mm | ||
| 1.00 | 920 x 460 x 628 mm | 628 mm | 1070 mm | 170 mm | 1300 °C | 10.0 W | 4.660 566 | 460 mm | R 170/750/13/P580 | 920 mm | ||
| 1.00 | 1,170 x 460 x 628 mm | 628 mm | 1400 mm | 170 mm | 1300 °C | 11.5 W | 4.660 567 | 460 mm | R 170/1000/13/P580 | 1170 mm | ||
| 1.00 | 670 x 410 x 578 mm | 578 mm | 700 mm | 120 mm | 1200 °C | 6.5 W | 4.661 500 | 410 mm | R 120/500/12/C550 | 670 mm | ||
| 1.00 | 920 x 460 x 628 mm | 628 mm | 1070 mm | 170 mm | 1200 °C | 10.0 W | 4.661 501 | 460 mm | R 170/750/12/C550 | 920 mm | ||
| 1.00 | 670 x 340 x 508 mm | 508 mm | 700 mm | 50 mm | 1200 °C | 2.3 W | 4.661 499 | 340 mm | R 50/500/12/C550 | 670 mm | ||
| 1.00 | 920 x 460 x 628 mm | 628 mm | 1070 mm | 170 mm | 1300 °C | 10.0 W | 4.661 502 | 460 mm | R 170/750/13/C550 | 920 mm | ||
| 1.00 | 1,170 x 460 x 628 mm | 628 mm | 1400 mm | 170 mm | 1300 °C | 11.5 W | 4.661 503 | 460 mm | R 170/1000/13/C550 | 1170 mm | ||
| 1.00 | 1,170 x 460 x 628 mm | 628 mm | 1400 mm | 170 mm | 1200 °C | 11.5 W | 4.661 504 | 460 mm | R 170/1000/12/C550 | 1170 mm | ||
| 1.00 | 1,170 x 460 x 628 mm | 628 mm | 1400 mm | 170 mm | 1200 °C | 11.5 W | 4.661 505 | 460 mm | R 170/1000/12/P580 | 1170 mm | ||
| 1.00 | 670 x 340 x 508 mm | 508 mm | 700 mm | 40 mm | 1200 °C | 2.3 W | 9.764 653 | 340 mm | R 50/500/12/B510 | 670 mm | ||
| 1.00 | 434 x 340 x 508 mm | 508 mm | 450 mm | 40 mm | 1200 °C | 1.6 W | 9.764 651 | 340 mm | R 50/250/12/B510 | 434 mm | ||
| 1.00 | 670 x 410 x 578 mm | 578 mm | 850 mm | 100 mm | 1200 °C | 6.5 W | 9.764 655 | 410 mm | R 120/500/12/B510 | 670 mm | ||
| 1.00 | 1,170 x 460 x 628 mm | 628 mm | 1350 mm | 150 mm | 1200 °C | 11.5 W | 9.764 661 | 460 mm | R 170/1000/12/B510 | 1170 mm | ||
| 1.00 | 670 x 340 x 508 mm | 508 mm | 700 mm | 40 mm | 1300 °C | 2.3 W | 9.764 665 | 340 mm | R 50/500/13/B510 | 670 mm | ||
| 1.00 | 434 x 340 x 508 mm | 508 mm | 450 mm | 40 mm | 1300 °C | 1.6 W | 9.764 663 | 340 mm | R 50/250/13/B510 | 434 mm | ||
| 1.00 | 670 x 410 x 578 mm | 578 mm | 850 mm | 100 mm | 1300 °C | 6.5 W | 9.764 667 | 410 mm | R 120/500/13/B510 | 670 mm | ||
| 1.00 | 434 x 340 x 508 mm | 508 mm | 450 mm | 50 mm | 1200 °C | 1.6 W | 4.661 498 | 340 mm | R 50/250/12/C550 | 434 mm | ||
| 1.00 | 920 x 460 x 628 mm | 628 mm | 1100 mm | 150 mm | 1200 °C | 11.5 W | 9.764 659 | 460 mm | R 170/750/12/B510 | 920 mm | ||
| 1.00 | 920 x 460 x 628 mm | 628 mm | 1100 mm | 150 mm | 1300 °C | 11.5 W | 9.764 671 | 460 mm | R 170/750/13/B510 | 920 mm | ||
| 1.00 | 1,170 x 460 x 628 mm | 628 mm | 1350 mm | 150 mm | 1300 °C | 11.5 W | 9.764 673 | 460 mm | R 170/1000/13/B510 | 1170 mm |
