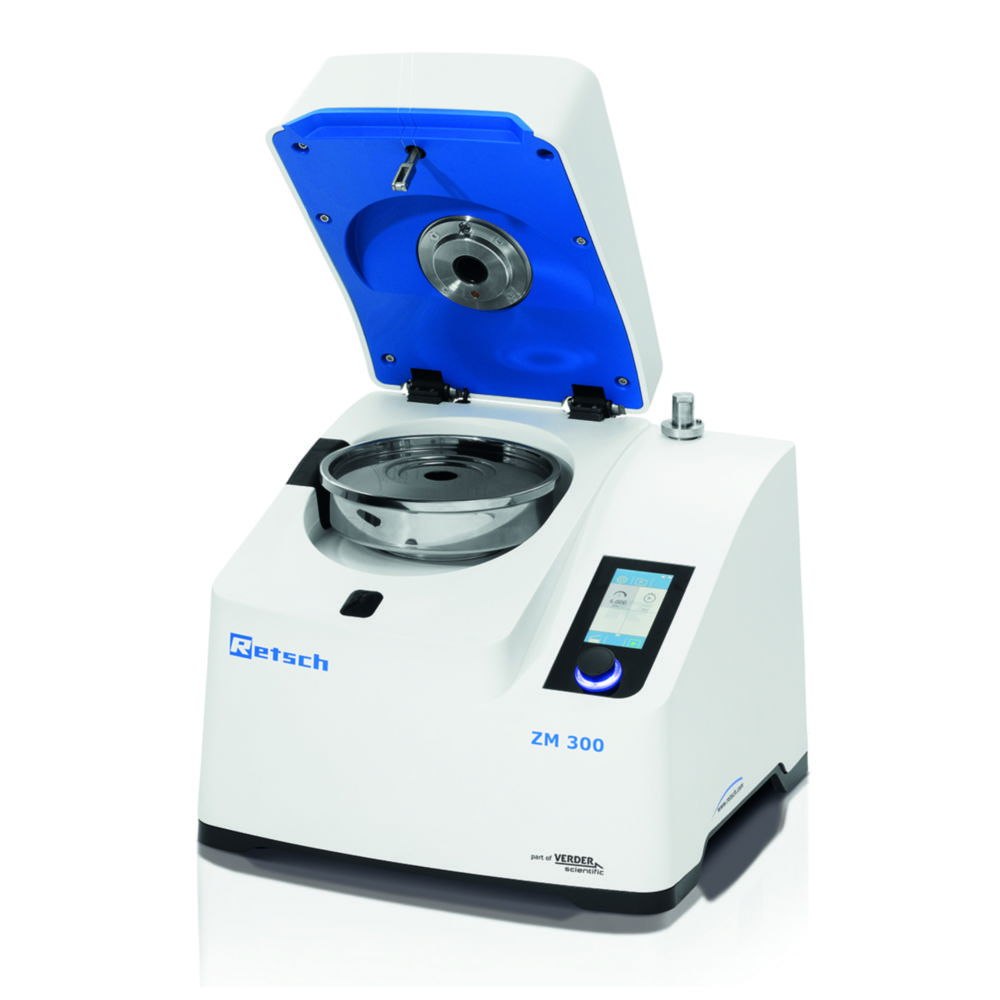

Ultra centrifugal mill ZM 300
The ultra centrifugal mill is used for high-speed size reduction of soft to medium-hard, as well as temperature-sensitive or fibrous materials. Thanks to the Push-Fit system and the patented cassette principle, the accessory components can be changed without tools.
- Touch display with rotary knob
- Integrated temperature sensor
- Very short grinding time
- Prevention of overloads by feeding the sample too quickly
- Two-stage pre- and fine grinding in one working run
Scope of supply:
Ultra-centrifugal mill ZM 300, 900 ml cassette
Please order rotors and sieves separately.
Toote variatsioonid
| Depth | Ø rotor | Dimensions (WxDxH) | Height | IP code | atr_llg_max_final_fineness | Max. speed | Max. voltage | Min. speed | Min. voltage | Catalog number | Power supply | Speed | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 426 mm | 99 mm | 452 x 426 x 431 mm | 431 mm | IP 20 | 40 µm | 6000 1/min | 120 V | 2300 1/min | 110 V | 4.685 120 | 110 ... 120 V, 50/60 Hz | 2,300 ... 6000 1/min | ZM 300 | 38 kg | 452 mm | 1.00 | ||
| 426 mm | 99 mm | 452 x 426 x 431 mm | 431 mm | IP 20 | 40 µm | 6000 1/min | 240 V | 2300 1/min | 200 V | 4.685 119 | 200 ... 240 V, 50/60 Hz | 2,300 ... 6000 1/min | ZM 300 | 38 kg | 452 mm | 1.00 |
