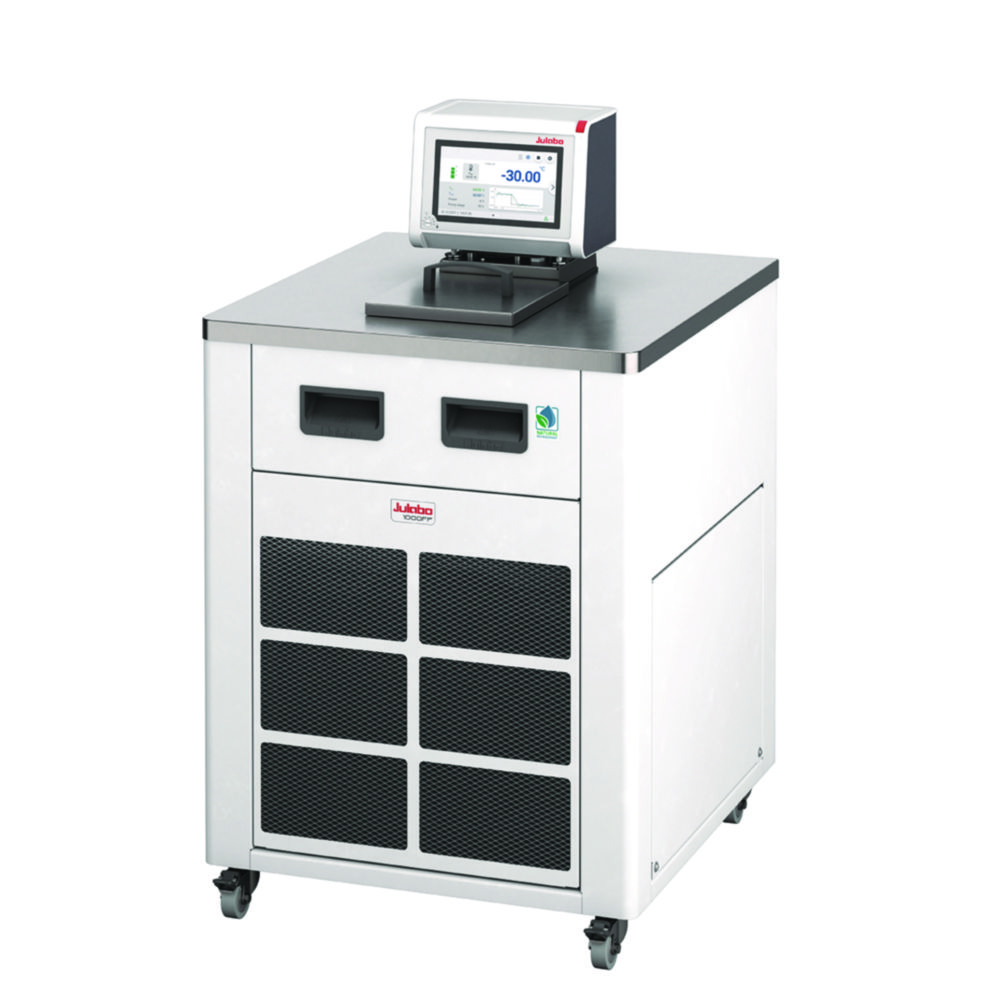

Ultra-low refrigerated circulator MAGIO MS
The ultra-low refrigerated circulator covers a wide working temperature range and offers a continuously adjustable, powerful pressure and suction pump to fulfil the high requirements for temperature control of demanding external applications. The cooling machine is equipped with sustainable, natural refrigerant in both cooling stages. The tool-free removable venting grid facilitates cleaning of the condenser and the heated bath cover plate prevents the condensation and ice build-up.
- Large, high-resolution TFT touch display with multilingual user interface
- Integrated programmer for automatically running of temperature-time profiles
- Flow rate 16 to 31 l /min, delivery pressure 0.24 to 0.92 bar, suction pressure 0.03 to 0.4 bar
- Parts in contact with the medium made of stainless steel
- USB and external Pt100 connection
- Ethernet and RS232 interface
- Modbus TCP/IP
- Stakei sockets for cooling water solenoid valve
- Integrated pump connections M16×1
- 2 barbed fittings each suitable for tubing inner diameters of 8 and 12 mm included
- Class III (FL) acc. to DIN 12876-1
Toote variatsioonid
| Bath depth | Depth opening | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Material bath | Max. flow rate | atr_llg_max_suction_pressure | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | atr_llg_min_volume_bath | Catalog number | Power supply | Programmable | Temp. Stability | Temperature | Type | Volume bath | Weight | Width opening | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 mm | 150 mm | 550 x 600 x 940 mm | 600 mm | 940 mm | 550 mm | 1.8 kW | IP 20 | Stainless steel | 0.4 bar | 100 °C | 230 V | 10 l | -90 °C | 7.5 l | 6.523 407 | 230 V | Yes | ±0,02 °C | -90 ... 100 °C | MAGIO MS-1000FF | 7.5 ... 10 l | 108 kg | 130 mm | Yes | 1.00 |
