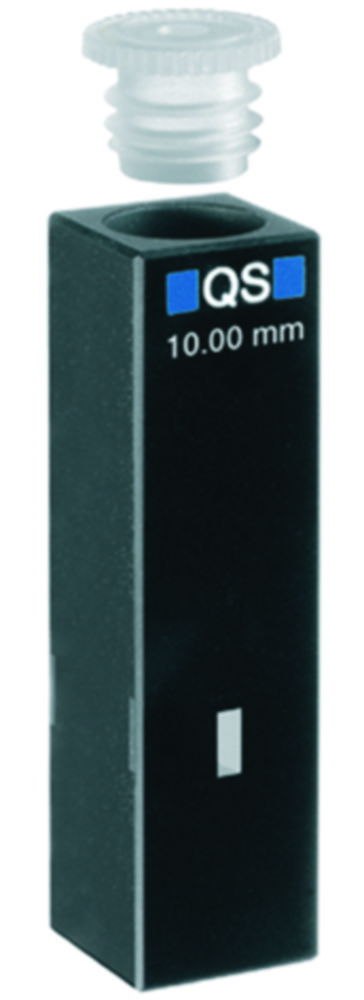

Ultra micro cells for absorption measurement, UV-range, quartz glass High Performance
Quartz glass High Performance 200 – 2500 nm.
Type A: with PE stopper
Type B: open pipette tips
Toote variatsioonid
| Type | Aperture mm | External dimensions (W x D x H) mm | Path length mm | Capacity µl | Centre height mm | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| b | Ø 0.8 | 12.5 x 12.5 x 40 | 10 | 5 | 8.5 | 9.144 157 | 1.00 | ||
| a | 5x2 | 12.5 x 12.5 x 45 | 10 | 100 | 8.5 | 9.190 965 | 1.00 | ||
| a | 2.5x2 | 12.5 x 12.5 x 45 | 10 | 50 | 15 | 9.190 967 | 1.00 | ||
| a | 2.5x2 | 12.5 x 12.5 x 45 | 10 | 50 | 8.5 | 9.190 964 | 1.00 | ||
| b | Ø 0.8 | 12.5 x 12.5 x 40 | 10 | 5 | 15 | 9.144 156 | 1.00 | ||
| a | 5x2 | 12.5 x 12.5 x 45 | 10 | 100 | 15 | 9.190 968 | 1.00 | ||
| a | 8x2 | 12.5 x 12.5 x 45 | 10 | 160 | 8.5 | 9.190 966 | 1.00 | ||
| a | 8x2 | 12.5 x 12.5 x 45 | 10 | 160 | 15 | 9.190 969 | 1.00 |
