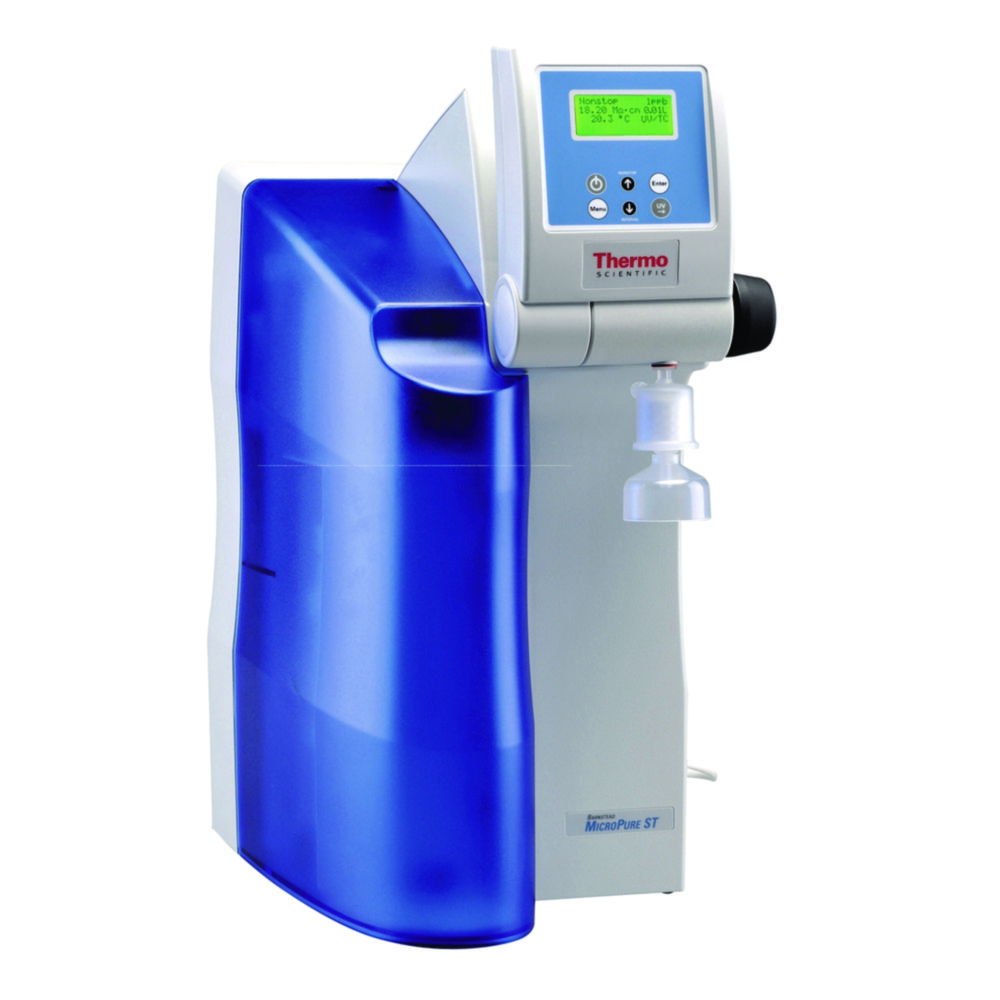

Ultrapure water purification system Barnstead™ MicroPure™, ASTM I

The Thermo Scientific Barnstead MicroPure system provides ultrapure water (18.2 MO, 0.055 µS/cm) ASTM type I, for typical demand up to 15 l/day. All MicroPure systems meet the requirements of the international standards ASTM (type I), ISO 3696 (type 1), ASTM D1193 and CLSI-CLRW. A variety of innovative expansion options, such as UV-lamp with wavelenghts 185/254 nm and a backwashable ultrafilter with a flow rate up to 0.6 l/min, ensure optimal supply for all analytical and life science applications.

MicroPure systems are supplied for immediate use with: pressure reducer, end filter, ultrapure water cartridge

Product features:

• Pre-cleaned feed water (e.g. reverse osmosis, destillation, demineralised water) is treated by a filtration cartridge and optional UV / UF units to produce ultrapure water
• Compact laboratory system for optional mounting on the laboratory bench or on the wall
• Simple and economical change of consumables due to easily accessible service hood and cartrige with quick release fasteners and AquaStopp
• Swivel-mounted display/keypad unit for setting and querying all operating and performance parameters such as limit values for ultrapure water quality
• MicroPure ST systems supplied with integrated 6 l tank for mobile use in the laboratory. Feed water supply with pre-cleaned water is provied by this tank

• Specifications
• Flow rate, max.:
  Operating pressure:
  Temperature:
  Conductivity: 1L/min
  2 to 6 bar
  +2 °C to +35 °C
  0.055 µS/cm
• Resistance at 25°C: 18.2 MΩxcm
• TOC value (models with UV):
  TOC value (models without UV): 1 to 5 ppb
  < 10 ppb
• Bacterial content:
  Particles >0.2 µm/mL: <1cfu/ml
  <1
• Endotoxins (Models with UF): <0.001EU/ml
• Power consumption: 0.06 kW
• Power supply: 90-240 V, 50/60 Hz, automatic voltage regulation to 24 V
• Dimensions (W x D x H):
  Dimensions models with reservoir (W x D x H): 305 x 300 x 545 mm
  305 x 400 x 545 mm
