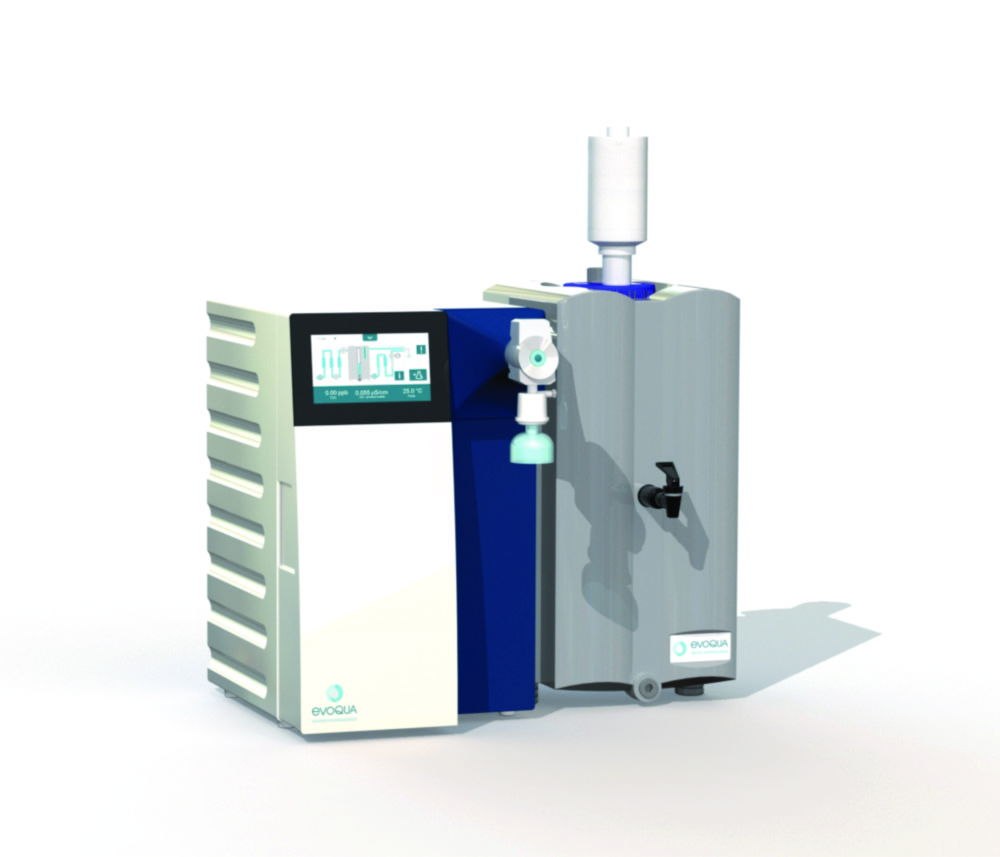

Ultrapure water system Ultra Clear™ TP ED TWF
The Ultra Clear™ TP ED TWF ultrapure water systems can be connected directly to the drinking water network (Tap Water Feed) and are supplied with a 30 l or 60 l storage tank for type II water. The built-in reverse osmosis system has a recovery rate of > 30 % to conserve water. An ion exchange module (DI) provides water with < 2 µS/cm from the tank.
- 7″ Multi-color touch display
- For tap water
- TOC monitoring (TM)
- User-guided disinfection mode
- Energy saving mode
- Wall mounting possible
- Modbus connectivity
- USB, printer and SD card connection
Scope of supply: ultrapure water system, 1 set of modules and filters
Toote variatsioonid
| PK | Depth | Catalog number | Dimensions (WxDxH) | Height | Max. pressure | Max. voltage | Min. pressure | Min. voltage | Power supply | Pressure | Resistivity | Tank volume | TOC value | Type | Weight | Width | Withdrawal capacity | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.00 | 550 mm | 4.683 657 | 340 x 550 x 535 mm | 535 mm | 5 bar | 240 V | 0.1 bar | 100 V | 100 ... 240 V, 50/60 Hz | 0.1 ... 5 bar | 60 l | Ultra Clear™ TP ED 10 TWF 60 UV UF | 31.5 kg | 340 mm | |||||
| 1.00 | 550 mm | 4.683 656 | 340 x 550 x 535 mm | 535 mm | 5 bar | 240 V | 0.1 bar | 100 V | 100 ... 240 V, 50/60 Hz | 0.1 ... 5 bar | 60 l | Ultra Clear™ TP ED 10 TWF 60 UV | 31.5 kg | 340 mm | |||||
| 1.00 | 550 mm | 4.683 655 | 340 x 550 x 535 mm | 535 mm | 5 bar | 240 V | 0.1 bar | 100 V | 100 ... 240 V, 50/60 Hz | 0.1 ... 5 bar | 30 l | Ultra Clear™ TP ED 10 TWF 30 UV UF | 30.5 kg | 340 mm | |||||
| 1.00 | 550 mm | 4.683 654 | 340 x 550 x 535 mm | 535 mm | 5 bar | 240 V | 0.1 bar | 100 V | 100 ... 240 V, 50/60 Hz | 0.1 ... 5 bar | 30 l | Ultra Clear™ TP ED 10 TWF 30 UV | 30.5 kg | 340 mm |
