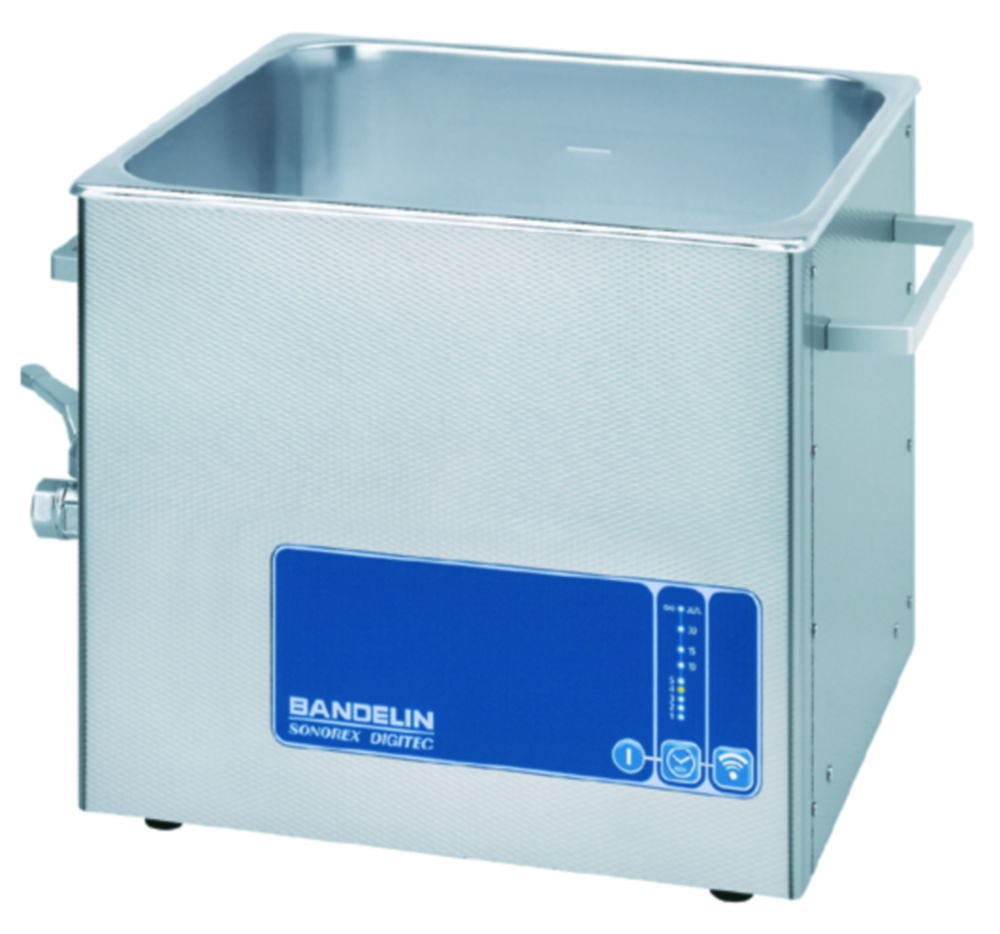

Ultrasonic Baths SONOREX DIGITEC, without heating
Ultrasonic baths in stainless steel housing, time setting 1, 2, 3, 4, 5, 10, 15, 30 min and continuous, warning LED at excess temperature, degassing of liquids (DEGAS), Pulse function, SweepTec®.
Toote variatsioonid
| Catalog number | PK | Depth int. | Ext. depth | Ext. height | Ext. width | Height int. | Int. width | Nominal capacity | Ultrasonic power | Weight | IP code | Max. voltage | Plug type | Type | With stopcock | External dimensions (WxDxH) | Internal dimensions (WxDxH) | Power supply | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.877 830 | 1.00 | 85 mm | 100 mm | 180 mm | 205 mm | 60 mm | 190 mm | 0.9 l | 40 W | 1.8 kg | IP 33 | 230 V | EU | DT 31 | No | 205 x 100 x 180 mm | 190 x 85 x 60 mm | 230 V, 50/60 Hz Hz | ||
| 9.877 841 | 1.00 | 240 mm | 265 mm | 305 mm | 325 mm | 150 mm | 300 mm | 9.7 l | 160 W | 7.0 kg | IP 33 | 230 V | EU | DT 510 | Yes | 325 x 265 x 305 mm | 300 x 240 x 150 mm | 230 V, 50/60 Hz Hz | ||
| 9.877 834 | 1.00 | 140 mm | 160 mm | 250 mm | 260 mm | 100 mm | 240 mm | 3.0 l | 80 W | 3.4 kg | IP 33 | 230 V | EU | DT 100 | No | 260 x 160 x 250 mm | 240 x 140 x 100 mm | 230 V, 50/60 Hz Hz | ||
| 9.877 839 | 1.00 | 150 mm | 175 mm | 295 mm | 325 mm | 150 mm | 300 mm | 5.5 l | 160 W | 5.2 kg | IP 33 | 230 V | EU | DT 255 | Yes | 325 x 175 x 295 mm | 300 x 150 x 150 mm | 230 V, 50/60 Hz Hz | ||
| 9.877 832 | 1.00 | 140 mm | 165 mm | 230 mm | 175 mm | 100 mm | 150 mm | 1.8 l | 60 W | 2.6 kg | IP 33 | 230 V | EU | DT 52 | No | 175 x 165 x 230 mm | 150 x 140 x 100 mm | 230 V, 50/60 Hz Hz | ||
| 9.877 851 | 1.00 | 300 mm | 325 mm | 305 mm | 355 mm | 150 mm | 325 mm | 13.5 l | 215 W | 8.2 kg | IP 33 | 230 V | EU | DT 514 | Yes | 355 x 325 x 305 mm | 325 x 300 x 150 mm | 230 V, 50/60 Hz Hz | ||
| 9.877 838 | 1.00 | 140 mm | 165 mm | 245 mm | 530 mm | 100 mm | 500 mm | 6.0 l | 160 W | 6.1 kg | IP 33 | 230 V | EU | DT 156 | Yes | 530 x 165 x 245 mm | 500 x 140 x 100 mm | 230 V, 50/60 Hz Hz | ||
| 9.877 854 | 1.00 | 300 mm | 325 mm | 400 mm | 535 mm | 200 mm | 500 mm | 28.0 l | 300 W | 14.3 kg | IP 33 | 230 V | EU | DT 1028 | Yes | 535 x 325 x 400 mm | 500 x 300 x 200 mm | 230 V, 50/60 Hz Hz | ||
| 6.280 703 | 1.00 | 300 mm | 325 mm | 400 mm | 535 mm | 200 mm | 500 mm | 28.0 l | 300 W | 14.3 kg | IP 33 | 230 V | UK | DT 1028 | Yes | 535 x 325 x 400 mm | 500 x 300 x 200 mm | 230 V, 50/60 Hz Hz |
