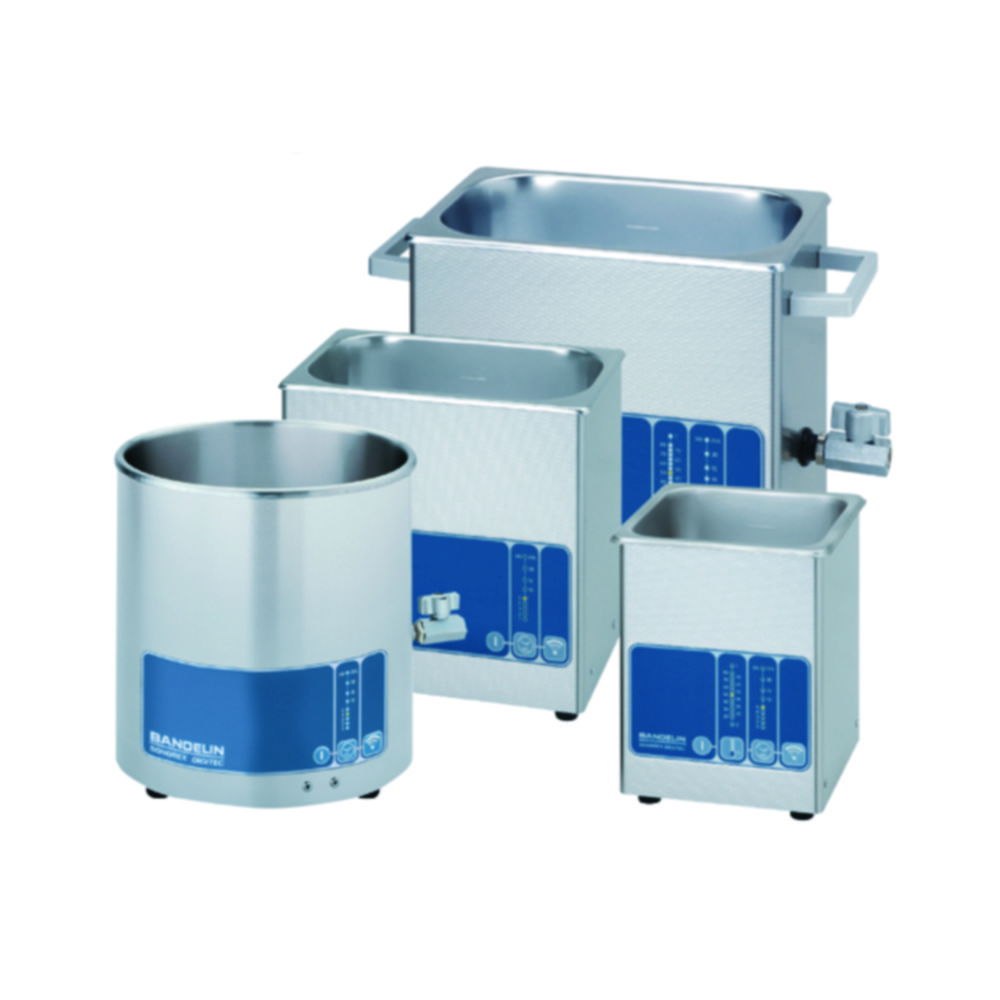

Ultrasonic Baths SONOREX DIGITEC, with heating
With heating, adjustable temperature range from 20 to 80 °C.
Toote variatsioonid
| Depth int. | Ext. depth | Ext. height | Ext. width | Heating capacity | Height int. | Int. width | IP code | Max. temperature | Max. voltage | Min. temperature | Nominal capacity | Catalog number | Plug type | Type | Ultrasonic power | Weight | With stopcock | PK | External dimensions (WxDxH) | Internal dimensions (WxDxH) | Power supply | Temperature | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 240 mm | 265 mm | 305 mm | 325 mm | 400 W | 150 mm | 300 mm | IP 33 | 80 °C | 230 V | -20 °C | 9.7 l | 9.877 842 | EU | DT 510 H | 160 W | 7.6 kg | Yes | 1.00 | 325 x 265 x 305 mm | 300 x 240 x 150 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 140 mm | 160 mm | 250 mm | 260 mm | 140 W | 100 mm | 240 mm | IP 33 | 80 °C | 230 V | -20 °C | 3.0 l | 9.877 835 | EU | DT 100 H | 80 W | 3.6 kg | No | 1.00 | 260 x 160 x 250 mm | 240 x 140 x 100 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 85 mm | 100 mm | 180 mm | 205 mm | 70 W | 60 mm | 190 mm | IP 33 | 80 °C | 230 V | -20 °C | 0.9 l | 9.877 831 | EU | DT 31 H | 40 W | 1.9 kg | No | 1.00 | 205 x 100 x 180 mm | 190 x 85 x 60 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 140 mm | 160 mm | 250 mm | 260 mm | 140 W | 100 mm | 240 mm | IP 33 | 80 °C | 230 V | -20 °C | 3.0 l | 9.877 836 | EU | DT 102 H | 120 W | 4.3 kg | Yes | 1.00 | 260 x 160 x 250 mm | 240 x 140 x 100 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 140 mm | 165 mm | 300 mm | 530 mm | 600 W | 150 mm | 500 mm | IP 33 | 80 °C | 230 V | -20 °C | 9.0 l | 9.877 849 | EU | DT 156 BH | 215 W | 7.3 kg | Yes | 1.00 | 530 x 165 x 300 mm | 500 x 140 x 150 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 300 mm | 340 mm | 500 mm | 540 mm | 1450 W | 300 mm | 500 mm | IP 33 | 80 °C | 230 V | -20 °C | 45.0 l | 9.877 857 | EU | DT 1028 CH | 300 W | 23.7 kg | Yes | 1.00 | 540 x 340 x 500 mm | 500 x 300 x 300 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 300 mm | 325 mm | 385 mm | 355 mm | 600 W | 200 mm | 325 mm | IP 33 | 80 °C | 230 V | -20 °C | 18.7 l | 9.877 853 | EU | DT 514 BH | 215 W | 9.8 kg | Yes | 1.00 | 355 x 325 x 385 mm | 325 x 300 x 200 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 140 mm | 160 mm | 310 mm | 260 mm | 200 W | 150 mm | 240 mm | IP 33 | 80 °C | 230 V | -20 °C | 4.0 l | 6.290 060 | UK | DT 103 H | 140 W | 4.6 kg | Yes | 1.00 | 260 x 160 x 310 mm | 240 x 140 x 150 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 300 mm | 325 mm | 400 mm | 535 mm | 1300 W | 200 mm | 500 mm | IP 33 | 80 °C | 230 V | -20 °C | 28.0 l | 9.877 855 | EU | DT 1028 H | 300 W | 14.7 kg | Yes | 1.00 | 535 x 325 x 400 mm | 500 x 300 x 200 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 300 mm | 325 mm | 305 mm | 355 mm | 600 W | 150 mm | 325 mm | IP 33 | 80 °C | 230 V | -20 °C | 13.5 l | 9.877 852 | EU | DT 514 H | 215 W | 8.8 kg | Yes | 1.00 | 355 x 325 x 305 mm | 325 x 300 x 150 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 500 mm | 540 mm | 530 mm | 640 mm | 1950 W | 300 mm | 600 mm | IP 33 | 80 °C | 230 V | -20 °C | 90.0 l | 9.877 860 | EU | DT 1050 CH | 600 W | 37.0 kg | Yes | 1.00 | 640 x 540 x 530 mm | 600 x 500 x 300 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 150 mm | 175 mm | 295 mm | 325 mm | 280 W | 150 mm | 300 mm | IP 33 | 80 °C | 230 V | -20 °C | 5.5 l | 9.877 840 | EU | DT 255 H | 160 W | 5.3 kg | Yes | 1.00 | 325 x 175 x 295 mm | 300 x 150 x 150 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 300 mm | 325 mm | 305 mm | 355 mm | 600 W | 150 mm | 325 mm | IP 33 | 80 °C | 230 V | -20 °C | 13.5 l | 4.679 291 | UK | DT 514 H | 215 W | 8.8 kg | Yes | 1.00 | 355 x 325 x 305 mm | 325 x 300 x 150 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 140 mm | 160 mm | 310 mm | 260 mm | 200 W | 150 mm | 240 mm | IP 33 | 80 °C | 230 V | -20 °C | 4.0 l | 9.877 837 | EU | DT 103 H | 140 W | 4.6 kg | Yes | 1.00 | 260 x 160 x 310 mm | 240 x 140 x 150 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 85 mm | 100 mm | 180 mm | 205 mm | 70 W | 60 mm | 190 mm | IP 33 | 80 °C | 230 V | -20 °C | 0.9 l | 6.317 023 | UK | DT 31 H | 40 W | 1.9 kg | No | 1.00 | 205 x 100 x 180 mm | 190 x 85 x 60 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 140 mm | 165 mm | 180 mm | 205 mm | 70 W | 60 mm | 190 mm | IP 33 | 80 °C | 230 V | -20 °C | 1.8 l | 9.877 833 | EU | DT 52 H | 60 W | 1.9 kg | No | 1.00 | 205 x 165 x 180 mm | 190 x 140 x 60 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 240 mm | 265 mm | 350 mm | 325 mm | 400 W | 200 mm | 300 mm | IP 33 | 80 °C | 230 V | -20 °C | 13.0 l | 9.877 850 | EU | DT 512 H | 215 W | 8.0 kg | Yes | 1.00 | 325 x 265 x 350 mm | 300 x 240 x 200 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 500 mm | 540 mm | 530 mm | 640 mm | 1950 W | 300 mm | 600 mm | IP 33 | 80 °C | 230 V | -20 °C | 90.0 l | 6.521 764 | UK | DT 1050 CH | 600 W | 37.0 kg | Yes | 1.00 | 640 x 540 x 530 mm | 600 x 500 x 300 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 140 mm | 160 mm | 310 mm | 260 mm | 200 W | 150 mm | 240 mm | IP 33 | 80 °C | 230 V | -20 °C | 4.0 l | 4.720 027 | CH | DT 103 H | 140 W | 4.6 kg | Yes | 1.00 | 260 x 160 x 310 mm | 240 x 140 x 150 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 240 mm | 265 mm | 305 mm | 325 mm | 400 W | 150 mm | 300 mm | IP 33 | 80 °C | 115 V | -20 °C | 9.7 l | 4.720 030 | US | DT 510 H | 160 W | 7.6 kg | Yes | 1.00 | 325 x 265 x 305 mm | 300 x 240 x 150 mm | 115 V, 50/60 Hz | 20 ... 80 °C | ||
| 240 mm | 265 mm | 305 mm | 325 mm | 400 W | 150 mm | 300 mm | IP 33 | 80 °C | 230 V | -20 °C | 9.7 l | 4.720 031 | CH | DT 510 H | 160 W | 7.6 kg | Yes | 1.00 | 325 x 265 x 305 mm | 300 x 240 x 150 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 240 mm | 265 mm | 305 mm | 325 mm | 400 W | 150 mm | 300 mm | IP 33 | 80 °C | 230 V | -20 °C | 9.7 l | 4.720 032 | UK | DT 510 H | 160 W | 7.6 kg | Yes | 1.00 | 325 x 265 x 305 mm | 300 x 240 x 150 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 300 mm | 325 mm | 305 mm | 355 mm | 600 W | 150 mm | 325 mm | IP 33 | 80 °C | 115 V | -20 °C | 13.5 l | 4.720 038 | US | DT 514 H | 215 W | 8.8 kg | Yes | 1.00 | 355 x 325 x 305 mm | 325 x 300 x 150 mm | 115 V, 50/60 Hz | 20 ... 80 °C | ||
| 300 mm | 325 mm | 305 mm | 355 mm | 600 W | 150 mm | 325 mm | IP 33 | 80 °C | 230 V | -20 °C | 13.5 l | 4.720 039 | CH | DT 514 H | 215 W | 8.8 kg | Yes | 1.00 | 355 x 325 x 305 mm | 325 x 300 x 150 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 300 mm | 325 mm | 385 mm | 355 mm | 600 W | 200 mm | 325 mm | IP 33 | 80 °C | 115 V | -20 °C | 18.7 l | 4.720 044 | US | DT 514 BH | 215 W | 9.8 kg | Yes | 1.00 | 355 x 325 x 385 mm | 325 x 300 x 200 mm | 115 V, 50/60 Hz | 20 ... 80 °C | ||
| 300 mm | 325 mm | 385 mm | 355 mm | 600 W | 200 mm | 325 mm | IP 33 | 80 °C | 230 V | -20 °C | 18.7 l | 4.720 045 | CH | DT 514 BH | 215 W | 9.8 kg | Yes | 1.00 | 355 x 325 x 385 mm | 325 x 300 x 200 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 300 mm | 325 mm | 385 mm | 355 mm | 600 W | 200 mm | 325 mm | IP 33 | 80 °C | 230 V | -20 °C | 18.7 l | 4.720 046 | UK | DT 514 BH | 215 W | 9.8 kg | Yes | 1.00 | 355 x 325 x 385 mm | 325 x 300 x 200 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 85 mm | 100 mm | 180 mm | 205 mm | 70 W | 60 mm | 190 mm | IP 33 | 80 °C | 115 V | -20 °C | 0.9 l | 4.720 052 | US | DT 31 H | 40 W | 1.9 kg | No | 1.00 | 205 x 100 x 180 mm | 190 x 85 x 60 mm | 115 V, 50/60 Hz | 20 ... 80 °C | ||
| 85 mm | 100 mm | 180 mm | 205 mm | 70 W | 60 mm | 190 mm | IP 33 | 80 °C | 230 V | -20 °C | 0.9 l | 4.720 053 | CH | DT 31 H | 40 W | 1.9 kg | No | 1.00 | 205 x 100 x 180 mm | 190 x 85 x 60 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 140 mm | 165 mm | 300 mm | 530 mm | 600 W | 150 mm | 500 mm | IP 33 | 80 °C | 115 V | -20 °C | 9.0 l | 4.720 054 | US | DT 156 BH | 215 W | 7.3 kg | Yes | 1.00 | 530 x 165 x 300 mm | 500 x 140 x 150 mm | 115 V, 50/60 Hz | 20 ... 80 °C | ||
| 140 mm | 165 mm | 300 mm | 530 mm | 600 W | 150 mm | 500 mm | IP 33 | 80 °C | 230 V | -20 °C | 9.0 l | 4.720 055 | CH | DT 156 BH | 215 W | 7.3 kg | Yes | 1.00 | 530 x 165 x 300 mm | 500 x 140 x 150 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 140 mm | 165 mm | 300 mm | 530 mm | 600 W | 150 mm | 500 mm | IP 33 | 80 °C | 230 V | -20 °C | 9.0 l | 4.720 056 | UK | DT 156 BH | 215 W | 7.3 kg | Yes | 1.00 | 530 x 165 x 300 mm | 500 x 140 x 150 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 140 mm | 165 mm | 180 mm | 205 mm | 70 W | 60 mm | 190 mm | IP 33 | 80 °C | 115 V | -20 °C | 1.8 l | 4.720 061 | US | DT 52 H | 60 W | 1.9 kg | No | 1.00 | 205 x 165 x 180 mm | 190 x 140 x 60 mm | 115 V, 50/60 Hz | 20 ... 80 °C | ||
| 140 mm | 165 mm | 180 mm | 205 mm | 70 W | 60 mm | 190 mm | IP 33 | 80 °C | 230 V | -20 °C | 1.8 l | 4.720 062 | UK | DT 52 H | 60 W | 1.9 kg | No | 1.00 | 205 x 165 x 180 mm | 190 x 140 x 60 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 240 mm | 265 mm | 350 mm | 325 mm | 400 W | 200 mm | 300 mm | IP 33 | 80 °C | 115 V | -20 °C | 13.0 l | 4.720 063 | US | DT 512 H | 215 W | 8.0 kg | Yes | 1.00 | 325 x 265 x 350 mm | 300 x 240 x 200 mm | 115 V, 50/60 Hz | 20 ... 80 °C | ||
| 240 mm | 265 mm | 350 mm | 325 mm | 400 W | 200 mm | 300 mm | IP 33 | 80 °C | 230 V | -20 °C | 13.0 l | 4.720 064 | CH | DT 512 H | 215 W | 8.0 kg | Yes | 1.00 | 325 x 265 x 350 mm | 300 x 240 x 200 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 140 mm | 160 mm | 250 mm | 260 mm | 140 W | 100 mm | 240 mm | IP 33 | 80 °C | 115 V | -20 °C | 3.0 l | 4.720 068 | US | DT 100 H | 80 W | 3.6 kg | No | 1.00 | 260 x 160 x 250 mm | 240 x 140 x 100 mm | 115 V, 50/60 Hz | 20 ... 80 °C | ||
| 140 mm | 160 mm | 250 mm | 260 mm | 140 W | 100 mm | 240 mm | IP 33 | 80 °C | 230 V | -20 °C | 3.0 l | 4.720 069 | CH | DT 100 H | 80 W | 3.6 kg | No | 1.00 | 260 x 160 x 250 mm | 240 x 140 x 100 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 140 mm | 160 mm | 250 mm | 260 mm | 140 W | 100 mm | 240 mm | IP 33 | 80 °C | 230 V | -20 °C | 3.0 l | 4.720 070 | UK | DT 100 H | 80 W | 3.6 kg | No | 1.00 | 260 x 160 x 250 mm | 240 x 140 x 100 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 300 mm | 325 mm | 400 mm | 535 mm | 1300 W | 200 mm | 500 mm | IP 33 | 80 °C | 115 V | -20 °C | 28.0 l | 4.720 071 | US | DT 1028 H | 300 W | 14.7 kg | Yes | 1.00 | 535 x 325 x 400 mm | 500 x 300 x 200 mm | 115 V, 50/60 Hz | 20 ... 80 °C | ||
| 300 mm | 325 mm | 400 mm | 535 mm | 1300 W | 200 mm | 500 mm | IP 33 | 80 °C | 230 V | -20 °C | 28.0 l | 4.720 072 | CH | DT 1028 H | 300 W | 14.7 kg | Yes | 1.00 | 535 x 325 x 400 mm | 500 x 300 x 200 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 300 mm | 325 mm | 400 mm | 535 mm | 1300 W | 200 mm | 500 mm | IP 33 | 80 °C | 230 V | -20 °C | 28.0 l | 4.720 073 | UK | DT 1028 H | 300 W | 14.7 kg | Yes | 1.00 | 535 x 325 x 400 mm | 500 x 300 x 200 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 140 mm | 160 mm | 250 mm | 260 mm | 140 W | 100 mm | 240 mm | IP 33 | 80 °C | 115 V | -20 °C | 3.0 l | 4.720 078 | US | DT 102 H | 120 W | 4.3 kg | Yes | 1.00 | 260 x 160 x 250 mm | 240 x 140 x 100 mm | 115 V, 50/60 Hz | 20 ... 80 °C | ||
| 140 mm | 160 mm | 250 mm | 260 mm | 140 W | 100 mm | 240 mm | IP 33 | 80 °C | 230 V | -20 °C | 3.0 l | 4.720 079 | CH | DT 102 H | 120 W | 4.3 kg | Yes | 1.00 | 260 x 160 x 250 mm | 240 x 140 x 100 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 140 mm | 160 mm | 250 mm | 260 mm | 140 W | 100 mm | 240 mm | IP 33 | 80 °C | 230 V | -20 °C | 3.0 l | 4.720 080 | UK | DT 102 H | 120 W | 4.3 kg | Yes | 1.00 | 260 x 160 x 250 mm | 240 x 140 x 100 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 150 mm | 175 mm | 295 mm | 325 mm | 280 W | 150 mm | 300 mm | IP 33 | 80 °C | 115 V | -20 °C | 5.5 l | 4.720 083 | US | DT 255 H | 160 W | 5.3 kg | Yes | 1.00 | 325 x 175 x 295 mm | 300 x 150 x 150 mm | 115 V, 50/60 Hz | 20 ... 80 °C | ||
| 150 mm | 175 mm | 295 mm | 325 mm | 280 W | 150 mm | 300 mm | IP 33 | 80 °C | 230 V | -20 °C | 5.5 l | 4.720 084 | CH | DT 255 H | 160 W | 5.3 kg | Yes | 1.00 | 325 x 175 x 295 mm | 300 x 150 x 150 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 150 mm | 175 mm | 295 mm | 325 mm | 280 W | 150 mm | 300 mm | IP 33 | 80 °C | 230 V | -20 °C | 5.5 l | 4.720 085 | UK | DT 255 H | 160 W | 5.3 kg | Yes | 1.00 | 325 x 175 x 295 mm | 300 x 150 x 150 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 300 mm | 340 mm | 500 mm | 540 mm | 1450 W | 300 mm | 500 mm | IP 33 | 80 °C | 115 V | -20 °C | 45.0 l | 4.720 102 | US | DT 1028 CH | 300 W | 23.7 kg | Yes | 1.00 | 540 x 340 x 500 mm | 500 x 300 x 300 mm | 115 V, 50/60 Hz | 20 ... 80 °C | ||
| 300 mm | 340 mm | 500 mm | 540 mm | 1450 W | 300 mm | 500 mm | IP 33 | 80 °C | 230 V | -20 °C | 45.0 l | 4.720 103 | CH | DT 1028 CH | 300 W | 23.7 kg | Yes | 1.00 | 540 x 340 x 500 mm | 500 x 300 x 300 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 300 mm | 340 mm | 500 mm | 540 mm | 1450 W | 300 mm | 500 mm | IP 33 | 80 °C | 230 V | -20 °C | 45.0 l | 4.720 104 | UK | DT 1028 CH | 300 W | 23.7 kg | Yes | 1.00 | 540 x 340 x 500 mm | 500 x 300 x 300 mm | 230 V, 50...60 Hz | 20 ... 80 °C | ||
| 500 mm | 540 mm | 530 mm | 640 mm | 1950 W | 300 mm | 600 mm | IP 33 | 80 °C | 115 V | -20 °C | 90.0 l | 4.720 109 | US | DT 1050 CH | 600 W | 37.0 kg | Yes | 1.00 | 640 x 540 x 530 mm | 600 x 500 x 300 mm | 115 V, 50/60 Hz | 20 ... 80 °C | ||
| 400 mm | 440 mm | 400 mm | 640 mm | 1450 W | 200 mm | 600 mm | IP 33 | 80 °C | 230 V | -20 °C | 48 l | 4.729 847 | EU | DT 1048 H | 320 W | 52 kg | Yes | 1.00 | 640 x 440 x 400 mm | 600 x 400 x 200 mm | 230 V, 50...60 Hz | 20 ... 80 °C |
