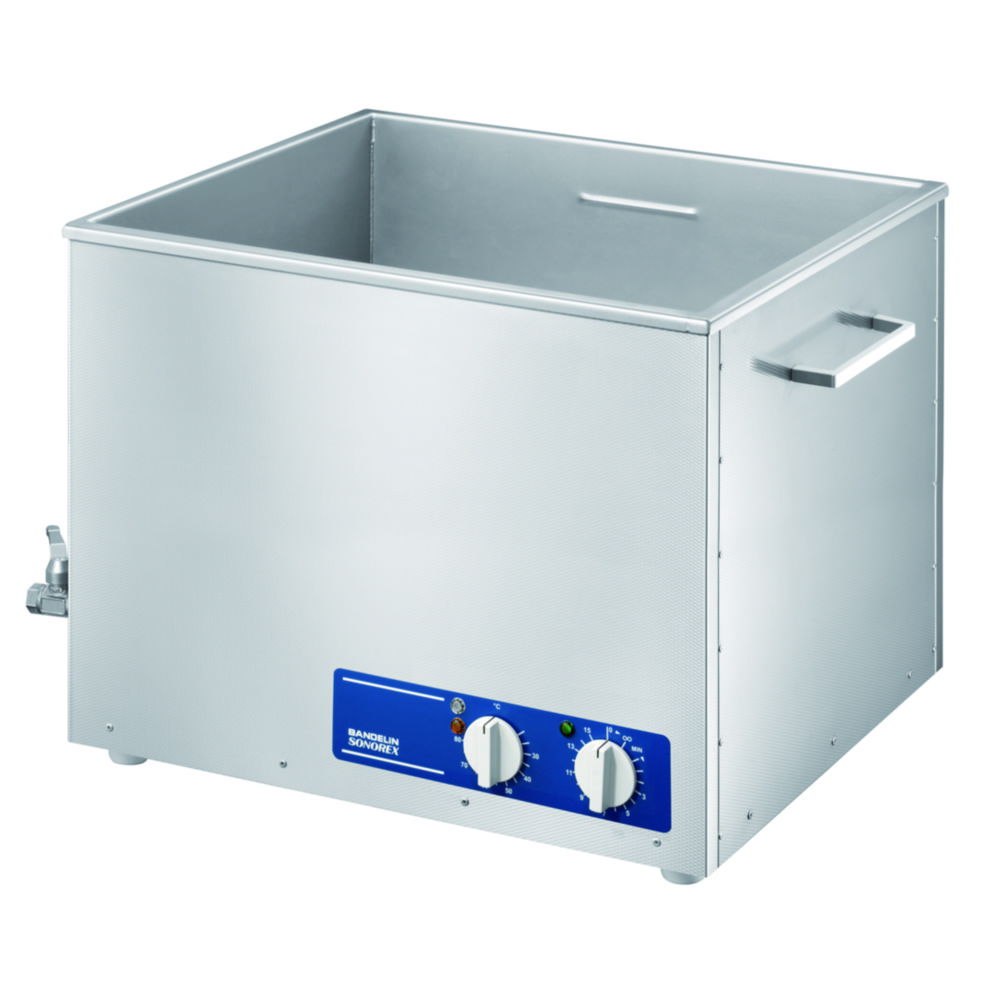

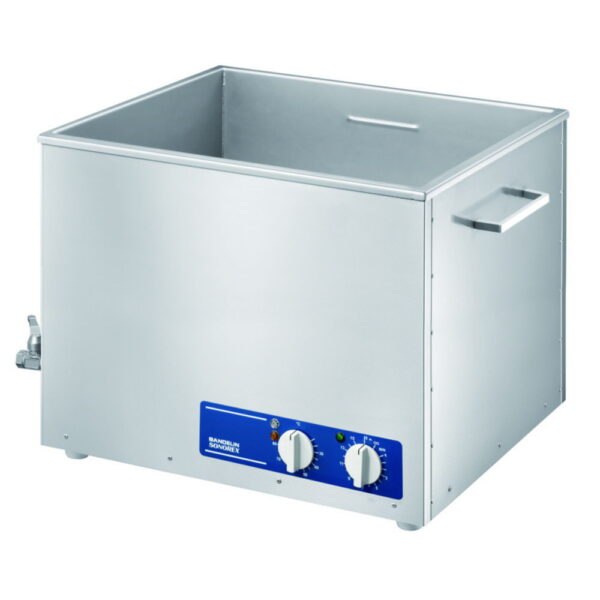

Ultrasonic Baths, SONOREX SUPER with heating

These devices work at 35 kHz and have transducers for maximum cleaning power. SweepTec^® for permanent sound field oscillation ensures even and gentle cleaning. All models are spill-proof with stainless steel tanks (RK 102H hard-chromium plated) and outer cases, drip proof (IP32).

For cleaning of technical glassware like burettes, pipettes, petri dishes and laboratory flasks, metal parts of all kinds, electronic components. Also suitable for cleaning and disinfection of medical instruments and acceleration of suspending processes, production of emulsions.

Toote variatsioonid

Depth int.	Ext. depth	Ext. height	Ext. width	Heating capacity	Height int.	Int. width	IP code	Max. temperature	Max. voltage	Min. temperature	Nominal capacity	Catalog number	Type	Ultrasonic power	Weight	With stopcock	PK	External dimensions (WxDxH)	Internal dimensions (WxDxH)	Power supply	Temperature	Plug type
85 mm	100 mm	180 mm	205 mm	70 W	60 mm	190 mm	IP 32	40 °C	230 V	5 °C	0.9 l	6.200 370	RK 31 H	40 W	2.3 kg	No	1.00	205 x 100 x 180 mm	190 x 85 x 60 mm	230 V, 50...60 Hz	5 ... 40 °C	EU
140 mm	165 mm	225 mm	175 mm	140 W	100 mm	150 mm	IP 32	40 °C	230 V	5 °C	1.8 l	9.877 051	RK 52 H	60 W	2.9 kg	No	1.00	175 x 165 x 225 mm	150 x 140 x 100 mm	230 V, 50...60 Hz	5 ... 40 °C	EU
140 mm	160 mm	250 mm	260 mm	140 W	100 mm	240 mm	IP 32	40 °C	230 V	5 °C	3.0 l	9.877 101	RK 100 H	80 W	3.6 kg	No	1.00	260 x 160 x 250 mm	240 x 140 x 100 mm	230 V, 50...60 Hz	5 ... 40 °C	EU
140 mm	160 mm	250 mm	260 mm	140 W	100 mm	240 mm	IP 32	40 °C	230 V	5 °C	3.0 l	9.877 103	RK 102 H	120 W	4.1 kg	Yes	1.00	260 x 160 x 250 mm	240 x 140 x 100 mm	230 V, 50...60 Hz	5 ... 40 °C	EU
140 mm	160 mm	310 mm	260 mm	200 W	150 mm	240 mm	IP 32	40 °C	230 V	5 °C	4.0 l	9.877 114	RK 103 H	140 W	4.6 kg	Yes	1.00	260 x 160 x 310 mm	240 x 140 x 150 mm	230 V, 50...60 Hz	5 ... 40 °C	EU
140 mm	165 mm	300 mm	500 mm	600 W	150 mm	500 mm	IP 32	40 °C	230 V	5 °C	9.0 l	9.877 155	RK 156 BH	215 W	7.1 kg	Yes	1.00	500 x 165 x 300 mm	500 x 140 x 150 mm	230 V, 50...60 Hz	5 ... 40 °C	EU
150 mm	175 mm	305 mm	325 mm	280 W	150 mm	300 mm	IP 32	40 °C	230 V	5 °C	5.5 l	9.877 256	RK 255 H	160 W	5.3 kg	Yes	1.00	325 x 175 x 305 mm	300 x 150 x 150 mm	230 V, 50...60 Hz	5 ... 40 °C	EU
240 mm	265 mm	305 mm	325 mm	400 W	150 mm	300 mm	IP 32	40 °C	230 V	5 °C	9.7 l	9.877 511	RK 510 H	160 W	7.6 kg	Yes	1.00	325 x 265 x 305 mm	300 x 240 x 150 mm	230 V, 50...60 Hz	5 ... 40 °C	EU
240 mm	265 mm	350 mm	325 mm	400 W	200 mm	300 mm	IP 32	40 °C	230 V	5 °C	13.0 l	9.877 512	RK 512 H	215 W	8.0 kg	Yes	1.00	325 x 265 x 350 mm	300 x 240 x 200 mm	230 V, 50...60 Hz	5 ... 40 °C	EU
300 mm	325 mm	385 mm	355 mm	600 W	200 mm	325 mm	IP 32	40 °C	230 V	5 °C	18.7 l	9.877 515	RK 514 BH	215 W	9.8 kg	Yes	1.00	355 x 325 x 385 mm	325 x 300 x 200 mm	230 V, 50...60 Hz	5 ... 40 °C	EU
300 mm	325 mm	305 mm	355 mm	600 W	150 mm	325 mm	IP 32	40 °C	230 V	5 °C	13.5 l	9.877 516	RK 514 H	215 W	8.8 kg	Yes	1.00	355 x 325 x 305 mm	325 x 300 x 150 mm	230 V, 50...60 Hz	5 ... 40 °C	EU
300 mm	325 mm	400 mm	535 mm	1300 W	200 mm	500 mm	IP 32	40 °C	230 V	5 °C	28.0 l	9.877 529	RK 1028 H	300 W	14.2 kg	Yes	1.00	535 x 325 x 400 mm	500 x 300 x 200 mm	230 V, 50...60 Hz	5 ... 40 °C	EU
500 mm	540 mm	530 mm	640 mm	1950 W	300 mm	600 mm	IP 32	40 °C	230 V	5 °C	90.0 l	9.877 552	RK 1050 CH	600 W	35.9 kg	Yes	1.00	640 x 540 x 530 mm	600 x 500 x 300 mm	230 V, 50...60 Hz	5 ... 40 °C	EU
500 mm	540 mm	530 mm	640 mm	1950 W	300 mm	600 mm	IP 32	40 °C	115 V	5 °C	90.0 l	9.877 553	RK 1050 CH	600 W	35.9 kg	Yes	1.00	640 x 540 x 530 mm	600 x 500 x 300 mm	115 V, 50/60 Hz	5 ... 40 °C	US
300 mm	325 mm	400 mm	535 mm	1300 W	200 mm	500 mm	IP 32	40 °C	230 V	5 °C	28.0 l	4.665 267	RK 1028 H	300 W	14.2 kg	Yes	1.00	535 x 325 x 400 mm	500 x 300 x 200 mm	230 V, 50...60 Hz	5 ... 40 °C	UK
140 mm	160 mm	250 mm	260 mm	140 W	100 mm	240 mm	IP 32	40 °C	230 V	5 °C	3.0 l	4.665 835	RK 102 H	120 W	4.1 kg	Yes	1.00	260 x 160 x 250 mm	240 x 140 x 100 mm	230 V, 50...60 Hz	5 ... 40 °C	UK
240 mm	265 mm	305 mm	325 mm	400 W	150 mm	300 mm	IP 32	40 °C	115 V	5 °C	9.7 l	6.206 566	RK 510 H	160 W	7.6 kg	Yes	1.00	325 x 265 x 305 mm	300 x 240 x 150 mm	115 V, 50/60 Hz	5 ... 40 °C	US
240 mm	265 mm	305 mm	325 mm	400 W	150 mm	300 mm	IP 32	40 °C	230 V	5 °C	9.7 l	6.253 890	RK 510 H	160 W	7.6 kg	Yes	1.00	325 x 265 x 305 mm	300 x 240 x 150 mm	230 V, 50...60 Hz	5 ... 40 °C	UK
150 mm	175 mm	305 mm	325 mm	280 W	150 mm	300 mm	IP 32	40 °C	230 V	5 °C	5.5 l	6.253 891	RK 255 H	160 W	5.3 kg	Yes	1.00	325 x 175 x 305 mm	300 x 150 x 150 mm	230 V, 50...60 Hz	5 ... 40 °C	UK
240 mm	265 mm	350 mm	325 mm	400 W	200 mm	300 mm	IP 32	40 °C	230 V	5 °C	13.0 l	6.263 371	RK 512 H	215 W	8.0 kg	Yes	1.00	325 x 265 x 350 mm	300 x 240 x 200 mm	230 V, 50...60 Hz	5 ... 40 °C	UK
140 mm	160 mm	310 mm	260 mm	200 W	150 mm	240 mm	IP 32	40 °C	230 V	5 °C	4.0 l	6.290 059	RK 103 H	140 W	4.6 kg	Yes	1.00	260 x 160 x 310 mm	240 x 140 x 150 mm	230 V, 50...60 Hz	5 ... 40 °C	UK
500 mm	540 mm	530 mm	640 mm	1950 W	300 mm	600 mm	IP 32	40 °C	230 V	5 °C	90.0 l	6.313 216	RK 1050 CH	600 W	35.9 kg	Yes	1.00	640 x 540 x 530 mm	600 x 500 x 300 mm	230 V, 50...60 Hz	5 ... 40 °C	UK
140 mm	160 mm	250 mm	260 mm	140 W	100 mm	240 mm	IP 32	40 °C	115 V	5 °C	3.0 l	6.313 547	RK 102 H	120 W	4.1 kg	Yes	1.00	260 x 160 x 250 mm	240 x 140 x 100 mm	115 V, 50/60 Hz	5 ... 40 °C	US
200 mm	250 mm	385 mm	1050 mm	1600 W	200 mm	1000 mm	IP 32	40 °C	230 V	5 °C	39.0 l	9.877 171	RK 170 H	380 W	26.2 kg	Yes	1.00	1,050 x 250 x 385 mm	1,000 x 200 x 200 mm	230 V, 50...60 Hz	5 ... 40 °C	EU
240 mm	265 mm	305 mm	325 mm	400 W	150 mm	300 mm	IP 32	40 °C	230 V	5 °C	9.7 l	6.322 020	RK 510 H	160 W	7.6 kg	Yes	1.00	325 x 265 x 305 mm	300 x 240 x 150 mm	230 V, 50...60 Hz	5 ... 40 °C	CH
140 mm	165 mm	225 mm	175 mm	140 W	100 mm	150 mm	IP 32	40 °C	115 V	5 °C	1.8 l	4.719 967	RK 52 H	60 W	2.9 kg	No	1.00	175 x 165 x 225 mm	150 x 140 x 100 mm	115 V, 50/60 Hz	5 ... 40 °C	US
140 mm	165 mm	225 mm	175 mm	140 W	100 mm	150 mm	IP 32	40 °C	230 V	5 °C	1.8 l	4.719 968	RK 52 H	60 W	2.9 kg	No	1.00	175 x 165 x 225 mm	150 x 140 x 100 mm	230 V, 50...60 Hz	5 ... 40 °C	CH
140 mm	165 mm	225 mm	175 mm	140 W	100 mm	150 mm	IP 32	40 °C	230 V	5 °C	1.8 l	4.719 969	RK 52 H	60 W	2.9 kg	No	1.00	175 x 165 x 225 mm	150 x 140 x 100 mm	230 V, 50...60 Hz	5 ... 40 °C	UK
500 mm	540 mm	530 mm	640 mm	1950 W	300 mm	600 mm	IP 32	40 °C	230 V	5 °C	90.0 l	4.719 970	RK 1050 CH	600 W	35.9 kg	Yes	1.00	640 x 540 x 530 mm	600 x 500 x 300 mm	230 V, 50...60 Hz	5 ... 40 °C	CH
300 mm	325 mm	305 mm	355 mm	600 W	150 mm	325 mm	IP 32	40 °C	115 V	5 °C	13.5 l	4.719 973	RK 514 H	215 W	8.8 kg	Yes	1.00	355 x 325 x 305 mm	325 x 300 x 150 mm	115 V, 50/60 Hz	5 ... 40 °C	US
300 mm	325 mm	305 mm	355 mm	600 W	150 mm	325 mm	IP 32	40 °C	230 V	5 °C	13.5 l	4.719 974	RK 514 H	215 W	8.8 kg	Yes	1.00	355 x 325 x 305 mm	325 x 300 x 150 mm	230 V, 50...60 Hz	5 ... 40 °C	CH
300 mm	325 mm	305 mm	355 mm	600 W	150 mm	325 mm	IP 32	40 °C	230 V	5 °C	13.5 l	4.719 975	RK 514 H	215 W	8.8 kg	Yes	1.00	355 x 325 x 305 mm	325 x 300 x 150 mm	230 V, 50...60 Hz	5 ... 40 °C	UK
300 mm	325 mm	385 mm	355 mm	600 W	200 mm	325 mm	IP 32	40 °C	115 V	5 °C	18.7 l	4.719 980	RK 514 BH	215 W	9.8 kg	Yes	1.00	355 x 325 x 385 mm	325 x 300 x 200 mm	115 V, 50/60 Hz	5 ... 40 °C	US
300 mm	325 mm	385 mm	355 mm	600 W	200 mm	325 mm	IP 32	40 °C	230 V	5 °C	18.7 l	4.719 981	RK 514 BH	215 W	9.8 kg	Yes	1.00	355 x 325 x 385 mm	325 x 300 x 200 mm	230 V, 50...60 Hz	5 ... 40 °C	CH
300 mm	325 mm	385 mm	355 mm	600 W	200 mm	325 mm	IP 32	40 °C	230 V	5 °C	18.7 l	4.719 982	RK 514 BH	215 W	9.8 kg	Yes	1.00	355 x 325 x 385 mm	325 x 300 x 200 mm	230 V, 50...60 Hz	5 ... 40 °C	UK
140 mm	160 mm	250 mm	260 mm	140 W	100 mm	240 mm	IP 32	40 °C	230 V	5 °C	3.0 l	4.719 990	RK 102 H	120 W	4.1 kg	Yes	1.00	260 x 160 x 250 mm	240 x 140 x 100 mm	230 V, 50...60 Hz	5 ... 40 °C	CH
140 mm	160 mm	250 mm	260 mm	140 W	100 mm	240 mm	IP 32	40 °C	115 V	5 °C	3.0 l	4.720 016	RK 100 H	80 W	3.6 kg	No	1.00	260 x 160 x 250 mm	240 x 140 x 100 mm	115 V, 50/60 Hz	5 ... 40 °C	US
140 mm	160 mm	250 mm	260 mm	140 W	100 mm	240 mm	IP 32	40 °C	230 V	5 °C	3.0 l	4.720 017	RK 100 H	80 W	3.6 kg	No	1.00	260 x 160 x 250 mm	240 x 140 x 100 mm	230 V, 50...60 Hz	5 ... 40 °C	CH
140 mm	160 mm	250 mm	260 mm	140 W	100 mm	240 mm	IP 32	40 °C	230 V	5 °C	3.0 l	4.720 018	RK 100 H	80 W	3.6 kg	No	1.00	260 x 160 x 250 mm	240 x 140 x 100 mm	230 V, 50...60 Hz	5 ... 40 °C	UK
150 mm	175 mm	305 mm	325 mm	280 W	150 mm	300 mm	IP 32	40 °C	115 V	5 °C	5.5 l	4.720 020	RK 255 H	160 W	5.3 kg	Yes	1.00	325 x 175 x 305 mm	300 x 150 x 150 mm	115 V, 50/60 Hz	5 ... 40 °C	US
150 mm	175 mm	305 mm	325 mm	280 W	150 mm	300 mm	IP 32	40 °C	230 V	5 °C	5.5 l	4.720 021	RK 255 H	160 W	5.3 kg	Yes	1.00	325 x 175 x 305 mm	300 x 150 x 150 mm	230 V, 50...60 Hz	5 ... 40 °C	CH
300 mm	325 mm	400 mm	535 mm	1300 W	200 mm	500 mm	IP 32	40 °C	115 V	5 °C	28.0 l	4.720 081	RK 1028 H	300 W	14.2 kg	Yes	1.00	535 x 325 x 400 mm	500 x 300 x 200 mm	115 V, 50/60 Hz	5 ... 40 °C	US
300 mm	325 mm	400 mm	535 mm	1300 W	200 mm	500 mm	IP 32	40 °C	230 V	5 °C	28.0 l	4.720 082	RK 1028 H	300 W	14.2 kg	Yes	1.00	535 x 325 x 400 mm	500 x 300 x 200 mm	230 V, 50...60 Hz	5 ... 40 °C	CH
140 mm	160 mm	310 mm	260 mm	200 W	150 mm	240 mm	IP 32	40 °C	115 V	5 °C	4.0 l	4.720 100	RK 103 H	140 W	4.6 kg	Yes	1.00	260 x 160 x 310 mm	240 x 140 x 150 mm	115 V, 50/60 Hz	5 ... 40 °C	US
140 mm	160 mm	310 mm	260 mm	200 W	150 mm	240 mm	IP 32	40 °C	230 V	5 °C	4.0 l	4.720 101	RK 103 H	140 W	4.6 kg	Yes	1.00	260 x 160 x 310 mm	240 x 140 x 150 mm	230 V, 50...60 Hz	5 ... 40 °C	CH
140 mm	165 mm	300 mm	500 mm	600 W	150 mm	500 mm	IP 32	40 °C	115 V	5 °C	9.0 l	4.720 188	RK 156 BH	215 W	7.1 kg	Yes	1.00	500 x 165 x 300 mm	500 x 140 x 150 mm	115 V, 50/60 Hz	5 ... 40 °C	US
140 mm	165 mm	300 mm	500 mm	600 W	150 mm	500 mm	IP 32	40 °C	230 V	5 °C	9.0 l	4.720 189	RK 156 BH	215 W	7.1 kg	Yes	1.00	500 x 165 x 300 mm	500 x 140 x 150 mm	230 V, 50...60 Hz	5 ... 40 °C	CH
140 mm	165 mm	300 mm	500 mm	600 W	150 mm	500 mm	IP 32	40 °C	230 V	5 °C	9.0 l	4.720 190	RK 156 BH	215 W	7.1 kg	Yes	1.00	500 x 165 x 300 mm	500 x 140 x 150 mm	230 V, 50...60 Hz	5 ... 40 °C	UK
200 mm	250 mm	385 mm	1050 mm	1600 W	200 mm	1000 mm	IP 32	40 °C	115 V	5 °C	39.0 l	4.720 223	RK 170 H	380 W	26.2 kg	Yes	1.00	1,050 x 250 x 385 mm	1,000 x 200 x 200 mm	115 V, 50/60 Hz	5 ... 40 °C	US
200 mm	250 mm	385 mm	1050 mm	1600 W	200 mm	1000 mm	IP 32	40 °C	230 V	5 °C	39.0 l	4.720 224	RK 170 H	380 W	26.2 kg	Yes	1.00	1,050 x 250 x 385 mm	1,000 x 200 x 200 mm	230 V, 50...60 Hz	5 ... 40 °C	CH
200 mm	250 mm	385 mm	1050 mm	1600 W	200 mm	1000 mm	IP 32	40 °C	230 V	5 °C	39.0 l	4.720 225	RK 170 H	380 W	26.2 kg	Yes	1.00	1,050 x 250 x 385 mm	1,000 x 200 x 200 mm	230 V, 50...60 Hz	5 ... 40 °C	UK
85 mm	100 mm	180 mm	205 mm	70 W	60 mm	190 mm	IP 32	40 °C	115 V	5 °C	0.9 l	4.720 226	RK 31 H	40 W	2.3 kg	No	1.00	205 x 100 x 180 mm	190 x 85 x 60 mm	115 V, 50/60 Hz	5 ... 40 °C	US
85 mm	100 mm	180 mm	205 mm	70 W	60 mm	190 mm	IP 32	40 °C	230 V	5 °C	0.9 l	4.720 227	RK 31 H	40 W	2.3 kg	No	1.00	205 x 100 x 180 mm	190 x 85 x 60 mm	230 V, 50...60 Hz	5 ... 40 °C	CH
85 mm	100 mm	180 mm	205 mm	70 W	60 mm	190 mm	IP 32	40 °C	230 V	5 °C	0.9 l	4.720 228	RK 31 H	40 W	2.3 kg	No	1.00	205 x 100 x 180 mm	190 x 85 x 60 mm	230 V, 50...60 Hz	5 ... 40 °C	UK
240 mm	265 mm	350 mm	325 mm	400 W	200 mm	300 mm	IP 32	40 °C	115 V	5 °C	13.0 l	4.720 263	RK 512 H	215 W	8.0 kg	Yes	1.00	325 x 265 x 350 mm	300 x 240 x 200 mm	115 V, 50/60 Hz	5 ... 40 °C	US
240 mm	265 mm	350 mm	325 mm	400 W	200 mm	300 mm	IP 32	40 °C	230 V	5 °C	13.0 l	4.720 264	RK 512 H	215 W	8.0 kg	Yes	1.00	325 x 265 x 350 mm	300 x 240 x 200 mm	230 V, 50...60 Hz	5 ... 40 °C	CH
