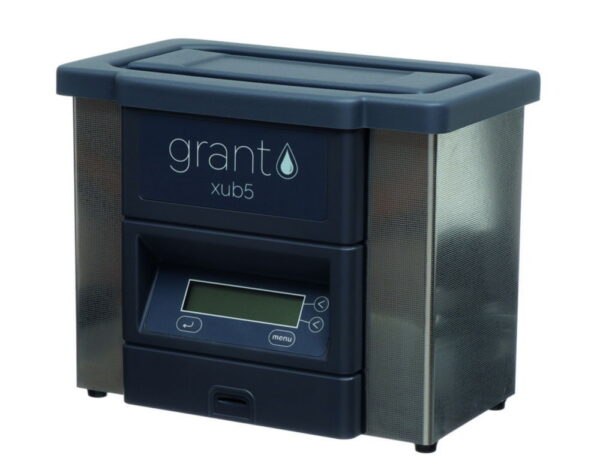

Ultrasonic baths XUB series, digital
The XUB range of digitally controlled benchtop ultrasonic baths offer consistent and reliable performance in a variety of environments. These baths offer high performance giving an accurate and precise ultrasonic process with a uniform level of ultrasonic activity.
- Frequency LEAP technology provides more homogeneous ultrasonic activity throughout the tank, reducing dead spots and standing waves
- Temperature range from ambient +5 to 70 °C
- Timer 0 to 99 min
- Drain outlet valve 3/8” BSP
- Accurate process control of time, temperature, ultrasonic activity, degas and power
- Degassing function to remove small bubbles from liquid, reducing the overall time needed for ultrasonic operation
- Adjustable power that can be reduced from 100 to 50 % in 5 % increments
- Suitable for sophisticated appliances in the scientific sector such as degassing, sonochemistry and fluid dissolution
Scope of supply: Ultrasonic bath with stainless steel basket, ABS plastic lid, M2 ultrasonic cleaning solution (1 bottle of 1 l), SD card and drain tap
Toote variatsioonid
| Depth int. | Ultrasonic power | Catalog number | Height int. | Int. width | Weight | Type | Power supply | Display | Heating capacity | Internal dimensions (WxDxH) | Max. temperature | Max. voltage | Min. temperature | Nominal capacity | Temperature | Temperature | With stopcock | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 200 mm | 100 W | 6.262 547 | 267 mm | 345 mm | 5.6 kg | XUB5 | 230 V, 50...60 Hz | Digital | 150 W | 345 x 200 x 267 mm | 70 °C | 230 V | 5 °C | 4.5 l | RT | RT+5 ... 70 °C | Yes | 1.00 | ||
| 288 mm | 200 W | 6.287 446 | 366 mm | 345 mm | 8.4 kg | XUB12 | 230 V, 50...60 Hz | Digital | 300 W | 345 x 288 x 366 mm | 70 °C | 230 V | 5 °C | 12.5 l | RT | RT+5 ... 70 °C | Yes | 1.00 | ||
| 347 mm | 300 W | 6.272 538 | 366 mm | 374 mm | 10.2 kg | XUB18 | 230 V, 50...60 Hz | Digital | 450 W | 374 x 347 x 366 mm | 70 °C | 230 V | 5 °C | 17.5 l | RT | RT+5 ... 70 °C | Yes | 1.00 | ||
| 347 mm | 400 W | 6.242 521 | 366 mm | 551 mm | 13.3 kg | XUB25 | 230 V, 50...60 Hz | Digital | 650 W | 551 x 347 x 366 mm | 70 °C | 230 V | 5 °C | 25.0 l | RT | RT+5 ... 70 °C | Yes | 1.00 |
