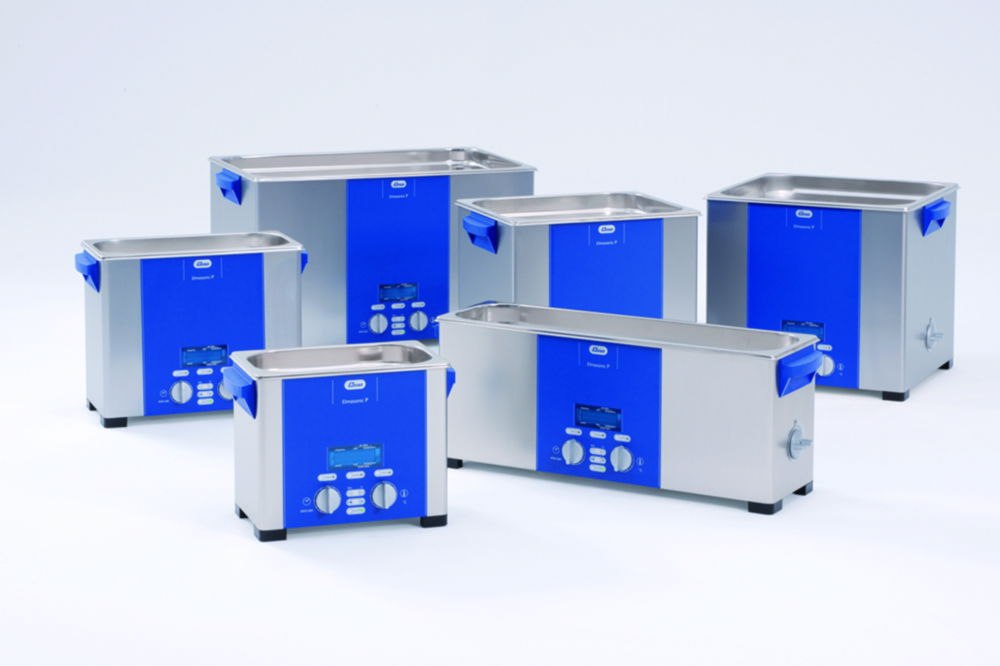

Ultrasonic Cleaning Units Elmasonic P

Professional ultrasonic cleaning devices with power-controlled ultrasound. Standard applications are carried out at 37 kHz. If the high energy density should prove too strong for individual cleaning jobs, it can be reduced electronically. Operating the unit at 80 kHz prolongs the cleaning time and is ideal for the treatment of very small and sensitive items. Even tiny capillaries are reached by the imploding microscopic cavitation bubbles. A positive side effect is the comfortably low noise level at this frequency.

Optimised power regulation for special cleaning and laboratory applications
Normal performance settings for laboratory applications, e.g. mixing, dissolving and dispersing
Pulse-function activatable for increased peak performance
Sweep-function for a uniform distribution of the ultrasonic power throughout the tank
Degas-function for the quick degassing of samples and HPLC solvents.
Pause-function interrupts the operation
Automatic start when set temperature is reached

Please order lids separately.

Toote variatsioonid

Depth int.	Ext. depth	Ext. height	Ext. width	Height int.	Int. width	IP code	Plug type	Type	Ultrasonic power	Waranty	Weight	Catalog number	External dimensions (WxDxH)	Heating capacity	Internal dimensions (WxDxH)	Max. temperature	Min. temperature	Nominal capacity	Operation	Temperature	With stopcock	PK
125 mm	186 mm	271 mm	365 mm	145 mm	275 mm	IP 20	EU	P 60 H	180 W	2 years	5.1 kg	6.250 079	365 x 186 x 271 mm	500 W	275 x 125 x 145 mm	80 °C	-30 °C	5.9 l	Push-buttons/rotary knobs	30 ... 80 °C	Yes	1.00
270 mm	340 mm	321 mm	568 mm	195 mm	475 mm	IP 20	EU	P 300 H	380 W	2 years	11.0 kg	7.653 627	568 x 340 x 321 mm	1250 W	475 x 270 x 195 mm	80 °C	-30 °C	27.5 l	Push-buttons/rotary knobs	30 ... 80 °C	Yes	1.00
270 mm	340 mm	321 mm	390 mm	195 mm	300 mm	IP 20	EU	P 180 H	330 W	2 years	8.5 kg	6.242 715	390 x 340 x 321 mm	1000 W	300 x 270 x 195 mm	80 °C	-30 °C	17.8 l	Push-buttons/rotary knobs	30 ... 80 °C	Yes	1.00
115 mm	179 mm	221 mm	568 mm	95 mm	485 mm	IP 20	EU	P 70 H	220 W	2 years	5.6 kg	6.240 062	568 x 179 x 221 mm	750 W	485 x 115 x 95 mm	80 °C	-30 °C	6.9 l	Push-buttons/rotary knobs	30 ... 80 °C	Yes	1.00
120 mm	179 mm	221 mm	300 mm	95 mm	220 mm	IP 20	EU	P 30 H	120 W	2 years	3.3 kg	6.240 431	300 x 179 x 221 mm	250 W	220 x 120 x 95 mm	80 °C	-30 °C	2.7 l	Push-buttons/rotary knobs	30 ... 80 °C	Yes	1.00
215 mm	278 mm	321 mm	365 mm	195 mm	275 mm	IP 20	EU	P 120 H	330 W	2 years	7.5 kg	6.240 091	365 x 278 x 321 mm	1000 W	275 x 215 x 195 mm	80 °C	-30 °C	12.9 l	Push-buttons/rotary knobs	30 ... 80 °C	Yes	1.00
