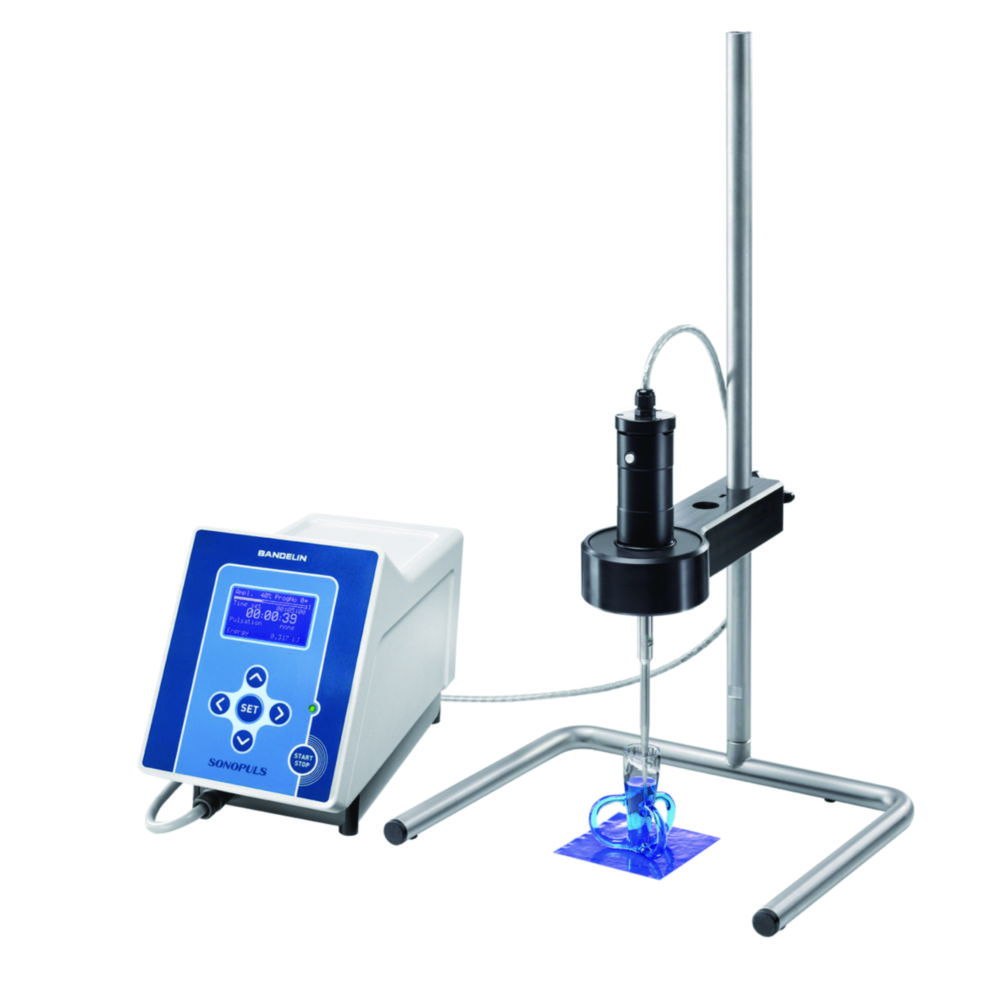

Ultrasonic homogeniser, SONOPULS HD 4050, set without stand and vessel
For volumes from 0.5 to 100 ml. Ready-to-operate set for volumes from 0.5 to 20 ml consisting of:
- HF generator GM 4200
- Ultrasonic converter UW 50
- Titanium probe TS 102, diam. 2 mm
Further Titanium probes with diam. 3 mm, 4.5 mm and 6 mm available on request.
Toote variatsioonid
| Working volume | Power setting range | Rated capacity | PK | Catalog number | Amplitude | Depth | Height | IP code | Max. amplitude | Max. voltage | Min. amplitude | Power supply | Type | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 ... 20 ml | 30...150 W | 50 W | 1.00 | 9.650 151 | 10 ... 100 % | 335 mm | 230 mm | IP 30 | 100 % | 230 V | 10 % | 230 V, 50...60 Hz | SONOPULS HD 4050 | 150 mm |
