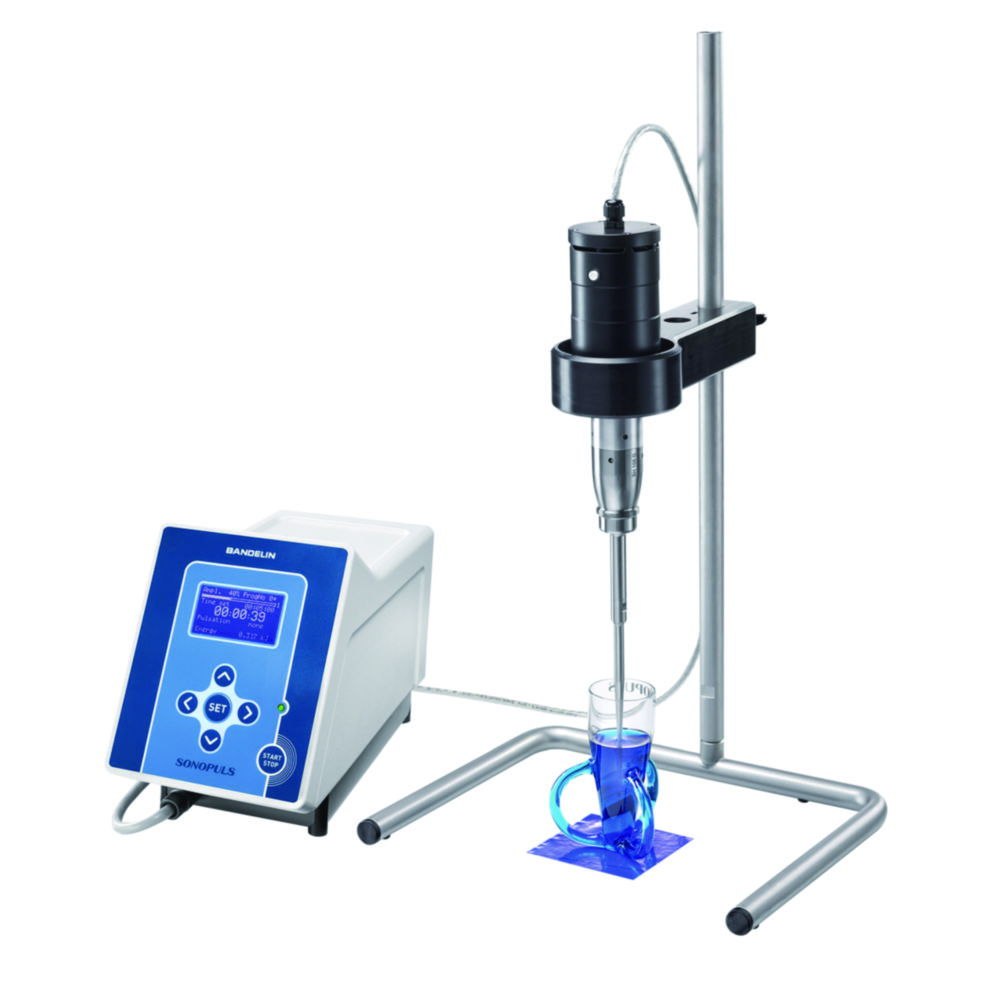

Ultrasonic homogeniser, SONOPULS HD 4100, set without stand annd vessel
For volumes 2 to 200 ml. Ready-to-operate set for volumes from 3 to 50 ml consisting of:
- HF generator GM 4200
- Ultrasonic converter UW 100
- Standard horn SH 100 G
- Titanium probe TS 103, diam. 3 mm
Further Titanium probes with diam. 2 mm, 4.5 mm, 6 mm, 9 mm and 13 mm available on request.
Toote variatsioonid
| Working volume | Catalog number | PK | Depth | Amplitude | Max. amplitude | Height | IP code | Max. voltage | Min. amplitude | Plug type | Power setting range | Power supply | Rated capacity | Type | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 ... 50 ml | 9.650 152 | 1.00 | 335 mm | 10 ... 100 % | 100 % | 230 mm | IP 30 | 230 V | 10 % | EU | 30...150 W | 230 V, 50...60 Hz | 100 W | SONOPULS HD 4100 | 150 mm |
