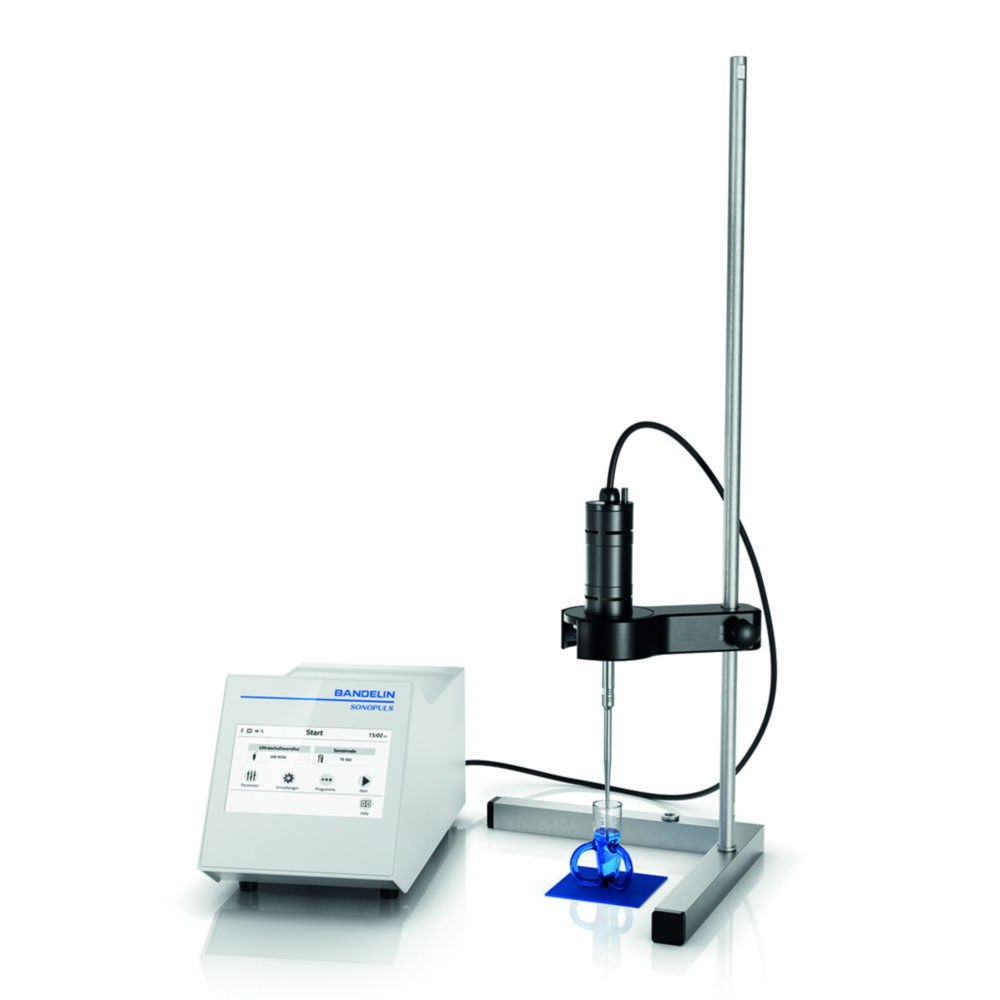

Ultrasonic homogeniser SONOPULS HD 5050, set without stand annd vessel
For volumes from 0.5 to 100 ml (depending on the sonotrode used).
Ready-to-operate set for volumes from 0.5 to 20 ml consisting of:
- Ultrasound generator GM 5000
- Ultrasonic converter UW 5050
- Titanium sonotrode TS 102, Ø 2 mm
Optional temperature sensor and further titanium sonotrodes with Ø 3 mm, 4.5 mm, 6 mm and 9 mm available separately.
Toote variatsioonid
| Working volume | Power supply | Type | PK | Depth | Rated capacity | Catalog number | Amplitude | Height | IP code | Max. amplitude | Max. voltage | Min. amplitude | Min. voltage | Plug type | Power setting range | Weight | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 ... 100 ml | 100 ... 240 V, 50/60 Hz | SONOPULS HD 5050 | 1.00 | 380 mm | 50 W | 4.686 324 | 10 ... 100 % | 215 mm | IP 30 | 100 % | 240 V | 10 % | 100 V | CH | 2...20 W | 3.1 kg | 195 mm | ||
| 0.5 ... 100 ml | 100 ... 240 V, 50/60 Hz | SONOPULS HD 5050 | 1.00 | 380 mm | 50 W | 4.686 325 | 10 ... 100 % | 215 mm | IP 30 | 100 % | 240 V | 10 % | 100 V | UK | 2...20 W | 3.1 kg | 195 mm | ||
| 0.5 ... 100 ml | 100 ... 240 V, 50/60 Hz | SONOPULS HD 5050 | 1.00 | 380 mm | 50 W | 4.686 326 | 10 ... 100 % | 215 mm | IP 30 | 100 % | 240 V | 10 % | 100 V | US | 2...20 W | 3.1 kg | 195 mm | ||
| 0.5 ... 100 ml | 100 ... 240 V, 50/60 Hz | SONOPULS HD 5050 | 1.00 | 380 mm | 50 W | 4.686 323 | 10 ... 100 % | 215 mm | IP 30 | 100 % | 240 V | 10 % | 100 V | EU | 2...20 W | 3.1 kg | 195 mm |
