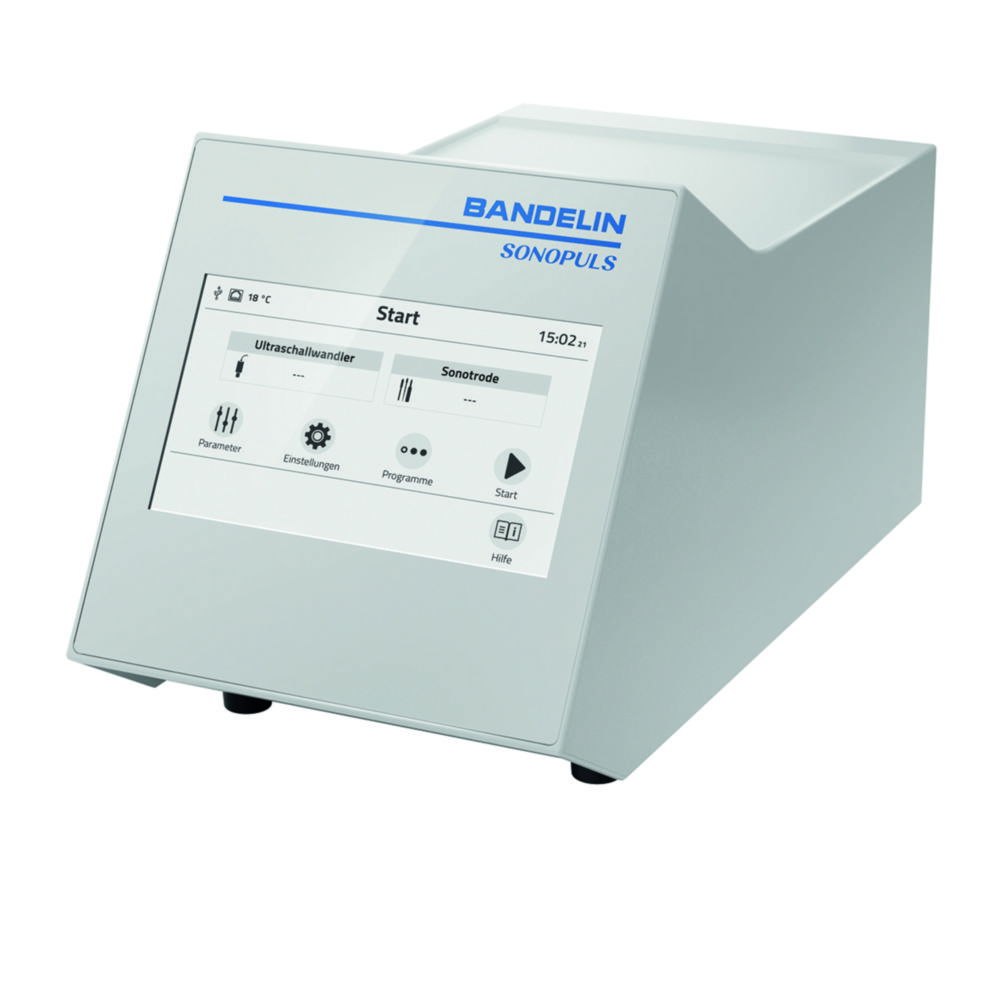

Ultrasound generator GM 5200
The ultrasound generator converts the low-frequency mains voltage into a high-frequency voltage. In combination with a compatible ultrasonic transducer and sonotrode, suitable for homogenisation, deagglomeration, emulsification, suspension, acceleration of chemical reactions or disruption of cells, bacteria, fungi or spores.
- Sturdy plastic housing
- 7″ colour touch display with intuitive, user-friendly operation
- Display and control of all set parameters of the running programme
- Amplitude and pulse interval individual adjustable
- 8 programmes can be stored
- Timer or continuos operation
- USB and Ethernet interface
- For SONOPULS ultrasonic transducer of the UW 5100/ UW 5200
Please order compatible ultrasonic transducer and sonotrodes separately.
Toote variatsioonid
| Amplitude | Depth | Dimensions (WxDxH) | Height | IP code | Max. amplitude | Max. voltage | Min. amplitude | Catalog number | Plug type | Power supply | Rated capacity | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 ... 100 % | 380 mm | 195 x 380 x 215 mm | 215 mm | IP 30 | 100 % | 230 V | 10 % | 4.686 327 | EU | 230 V, 50...60 Hz | 200 W | GM 5200 | 3.1 kg | 195 mm | 1.00 |
