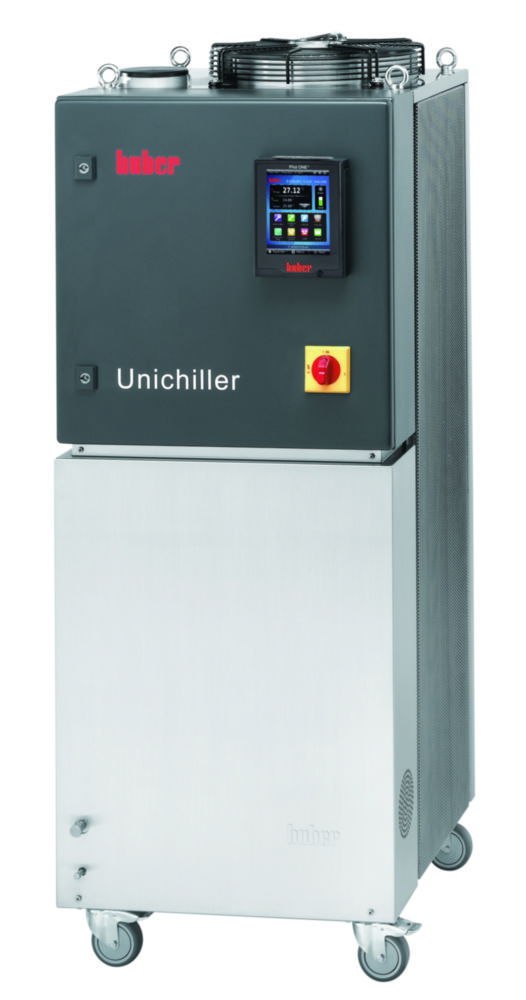

Unichiller® (tower housing) with air cooled refrigeration

Many applications depend on a reliable source of cooling. Circulating chillers in the Unichiller range offer an ideal solution for environmentally friendly and economical cooling in laboratory and industry. There are over 50 air and water cooled models to choose from, with cooling powers from 0.3 to 50 kW. Efficient energy management in all Huber chillers ensures low operating costs and reduced usage of valuable fresh water. Huber circulating chillers are a resource saving solution with a quick return on investment.
Options on request: heating, natural refrigerant, externally open applications, winter option, outdoor setup.

Toote variatsioonid

Catalog number	Type	PK	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	IP code	Max. temperature	Max. voltage	Min. temperature	Operation	Power supply	Refrigerant	Temp. Stability	Temperature	Type of display	Weight
9.859 304	Unichiller® 040T	1.00	500 x 552 x 1,451 mm	552 mm	1451 mm	500 mm	IP 20	40 °C	400 V	-10 °C	Touchscreen	400 V, 50 Hz	R449A	±0,5 K	-10 ... 40 °C	TFT	167 kg
9.859 302	Unichiller® 020T	1.00	450 x 510 x 1,230 mm	510 mm	1230 mm	450 mm	IP 20	40 °C	230 V	-20 °C	Touchscreen	230 V, 50 Hz	R449A	±0,5 K	-20 ... 40 °C	TFT	143 kg
4.687 691	Unichiller® 017T	1.00	450 x 510 x 1,231 mm	510 mm	1231 mm	450 mm	IP 20	40 °C	230 V	-10 °C	Touchscreen	230 V, 50 Hz	R449A	±0,5 K	-10 ... 40 °C	TFT	131 kg
4.687 692	Unichiller® 025T	1.00	450 x 510 x 1,230 mm	510 mm	1230 mm	450 mm	IP 20	40 °C	230 V	-10 °C	Touchscreen	230 V, 50 Hz	R449A	±0,5 K	-10 ... 40 °C	TFT	144 kg
9.859 305	Unichiller® 045T	1.00	500 x 552 x 1,451 mm	552 mm	1451 mm	500 mm	IP 20	40 °C	400 V	-20 °C	Touchscreen	400 V, 50 Hz	R449A	±0,5 K	-20 ... 40 °C	TFT	183 kg
