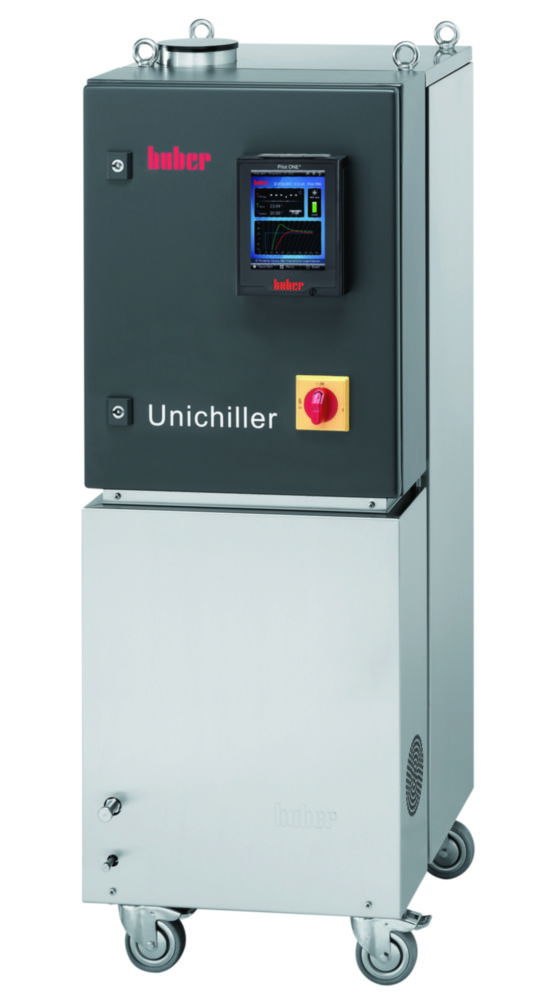

Unichiller® (tower housing) with water cooled refrigeration

Many applications depend on a reliable source of cooling. Circulating chillers in the Unichiller range offer an ideal solution for environmentally friendly and economical cooling in laboratory and industry. There are over 50 air and water cooled models to choose from, with cooling powers from 0.3 to 50 kW. Efficient energy management in all Huber chillers ensures low operating costs and reduced usage of valuable fresh water. Huber circulating chillers are a resource saving solution with a quick return on investment.
Options on request: heating, natural refrigerant, externally open applications, winter option, outdoor setup.

Toote variatsioonid

External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	IP code	Max. temperature	Max. voltage	Max. volume bath	Min. temperature	Operation	Catalog number	Power supply	Refrigerant	Temp. Stability	Temperature	Type	Volume bath	PK
400 x 440 x 1230 mm	440 mm	1230 mm	400 mm	IP 20	40 °C	230 V	2.5 l	-10 °C	Touchscreen	4.687 693	230 V, 50 Hz	R449A	0,5 K	-10 ... 40 °C	Unichiller® 017Tw	2.5 l	1.00
400 x 440 x 1230 mm	440 mm	1230 mm	400 mm	IP 20	40 °C	400 V	2.5 l	-10 °C	Touchscreen	9.859 321	400 V, 50 Hz	R449A	0,5 K	-10 ... 40 °C	Unichiller® 040Tw	2.5 l	1.00
400 x 440 x 1230 mm	440 mm	1230 mm	400 mm	IP 20	40 °C	230 V	2.5 l	-10 °C	Touchscreen	4.687 694	230 V, 50 Hz	R449A	0,5 K	-10 ... 40 °C	Unichiller® 025Tw	2.5 l	1.00
400 x 440 x 1230 mm	440 mm	1230 mm	400 mm	IP 20	40 °C	230 V	2.5 l	-20 °C	Touchscreen	9.859 318	230 V, 50 Hz	R449A	0,5 K	-20 ... 40 °C	Unichiller® 020Tw	2.5 l	1.00
400 x 440 x 1230 mm	440 mm	1230 mm	400 mm	IP 20	40 °C	400 V	2.5 l	-20 °C	Touchscreen	9.859 320	400 V, 50 Hz	R449A	0,5 K	-20 ... 40 °C	Unichiller® 030Tw	2.5 l	1.00
