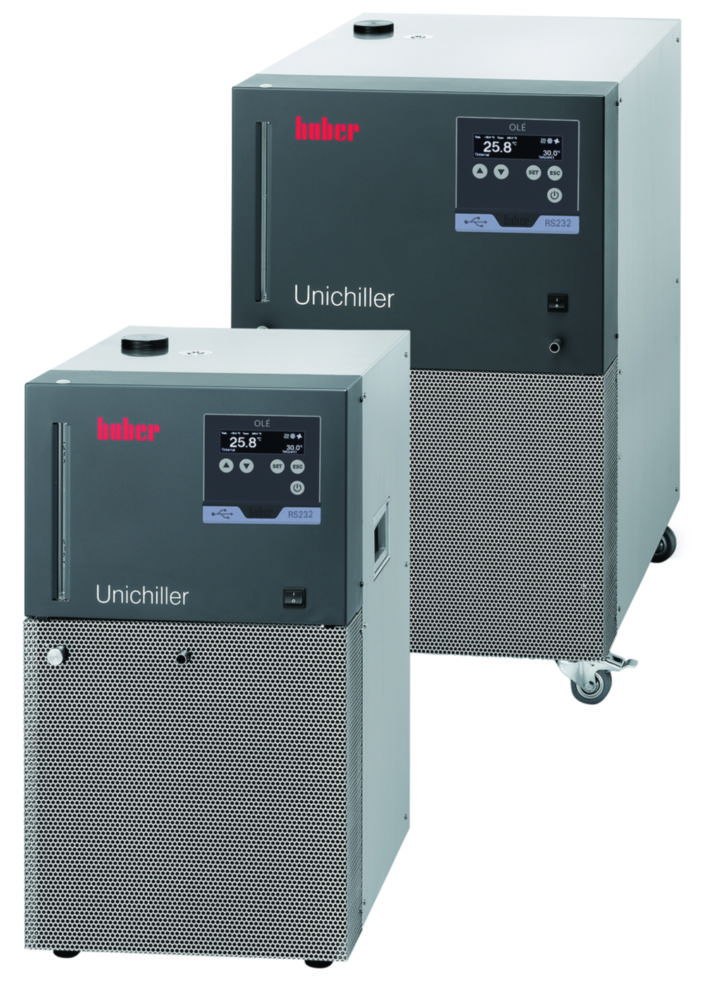

Unichiller® with Pilot ONE controller

High performance Unichiller with Pilot ONE controller for standard applications. The Unichiller offers cooling powers up to 2,5 kW. The chiller is ideal for standard cooling applications in the laboratory or in industry. The energy efficient function of the chiller reduces the water consumption for many applications, helping to protect the environment and reducing operating costs. The models are fitted with the Pilot ONE controller including 5.7″ colour touch screen and 2 x USB, Ethernet and RS232 connections. P-models include circulating pumps with a high discharge pressure for applications with high pressure drops.

Cooling power up to 2.5 kW
Air- and watercooled models
Compact, robust stainless steel housings
Fitted with wheels for easy handling
Optional heating up to +100°C

Toote variatsioonid

Catalog number	PK	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	IP code	Max. temperature	Max. voltage	Min. temperature	Min. voltage	Operation	Power supply	Refrigerant	Temp. Stability	Temperature	Type	Type of display	Weight
4.675 328	1.00	350 x 496 x 622 mm	496 mm	622 mm	350 mm	IP 20	40 °C	240 V	-20 °C	208 V	Touchscreen	208 ... 240 V, 50/60 Hz	R449A	±0,5 K	-20 ... 40 °C	Unichiller® P007w	TFT	56 kg
4.675 327	1.00	350 x 496 x 622 mm	496 mm	622 mm	350 mm	IP 20	40 °C	240 V	-20 °C	208 V	Touchscreen	208 ... 240 V, 50/60 Hz	R449A	±0,5 K	-20 ... 40 °C	Unichiller® P007	TFT	57 kg
4.675 322	1.00	420 x 487 x 579 mm	487 mm	579 mm	420 mm	IP 20	40 °C	240 V	-20 °C	220 V	Touchscreen	220 ... 240 V, 50 Hz	R449A	±0,5 K	-20 ... 40 °C	Unichiller®015	TFT	61 kg
4.675 336	1.00	420 x 487 x 579 mm	487 mm	579 mm	420 mm	IP 20	40 °C	240 V	-10 °C	220 V	Touchscreen	220 ... 240 V, 50 Hz	R449A	±0,5 K	-10 ... 40 °C	Unichiller® P025w	TFT	69 kg
4.675 330	1.00	420 x 487 x 579 mm	487 mm	579 mm	420 mm	IP 20	40 °C	240 V	-20 °C	220 V	Touchscreen	220 ... 240 V, 50/60 Hz	R449A	±0,5 K	-20 ... 40 °C	Unichiller® P012	TFT	62 kg
4.675 324	1.00	460 x 590 x 743 mm	590 mm	743 mm	460 mm	IP 20	40 °C	240 V	-10 °C	220 V	Touchscreen	220 ... 240 V, 50 Hz	R449A	±0,5 K	-10 ... 40 °C	Unichiller®022	TFT	83 kg
4.675 323	1.00	350 x 496 x 622 mm	496 mm	622 mm	350 mm	IP 20	40 °C	240 V	-20 °C	220 V	Touchscreen	220 ... 240 V, 50 Hz	R449A	±0,5 K	-20 ... 40 °C	Unichiller®015w	TFT	57 kg
4.675 333	1.00	460 x 590 x 743 mm	590 mm	743 mm	460 mm	IP 20	40 °C	240 V	-10 °C	220 V	Touchscreen	220 ... 240 V, 50 Hz	R449A	±0,5 K	-10 ... 40 °C	Unichiller® P022	TFT	80 kg
4.675 329	1.00	350 x 496 x 622 mm	496 mm	622 mm	350 mm	IP 20	40 °C	240 V	-20 °C	220 V	Touchscreen	220 ... 240 V, 50/60 Hz	R449A	±0,5 K	-20 ... 40 °C	Unichiller® P010w	TFT	57 kg
7.971 768	1.00	460 x 590 x 743 mm	590 mm	743 mm	460 mm	IP 20	40 °C	240 V	-10 °C	220 V	Touchscreen	220 ... 240 V, 50 Hz	R449A	±0,5 K	-10 ... 40 °C	Unichiller®025	TFT	57 kg
6.288 870	1.00	350 x 496 x 622 mm	496 mm	622 mm	350 mm	IP 20	40 °C	240 V	-20 °C	220 V	Touchscreen	220 ... 240 V, 50/60 Hz	R449A	±0,5 K	-20 ... 40 °C	Unichiller® P012w	TFT	57 kg
4.675 334	1.00	420 x 487 x 579 mm	487 mm	579 mm	420 mm	IP 20	40 °C	240 V	-10 °C	220 V	Touchscreen	220 ... 240 V, 50 Hz	R449A	±0,5 K	-10 ... 40 °C	Unichiller® P022w	TFT	67 kg
4.675 331	1.00	420 x 487 x 579 mm	487 mm	579 mm	420 mm	IP 20	40 °C	240 V	-20 °C	220 V	Touchscreen	220 ... 240 V, 50 Hz	R449A	±0,5 K	-20 ... 40 °C	Unichiller® P015	TFT	59 kg
4.675 325	1.00	420 x 487 x 579 mm	487 mm	579 mm	420 mm	IP 20	40 °C	240 V	-10 °C	220 V	Touchscreen	220 ... 240 V, 50 Hz	R449A	±0,5 K	-10 ... 40 °C	Unichiller®022w	TFT	62 kg
4.675 335	1.00	460 x 590 x 743 mm	590 mm	743 mm	460 mm	IP 20	40 °C	240 V	-10 °C	220 V	Touchscreen	220 ... 240 V, 50 Hz	R449A	±0,5 K	-10 ... 40 °C	Unichiller® P025	TFT	81 kg
4.675 332	1.00	350 x 496 x 622 mm	496 mm	622 mm	350 mm	IP 20	40 °C	240 V	-20 °C	220 V	Touchscreen	220 ... 240 V, 50 Hz	R449A	±0,5 K	-20 ... 40 °C	Unichiller® P015w	TFT	-
6.273 296	1.00	350 x 496 x 622 mm	496 mm	622 mm	350 mm	IP 20	40 °C	240 V	-20 °C	220 V	Touchscreen	220 ... 240 V, 50/60 Hz	R449A	±0,5 K	-20 ... 40 °C	Unichiller® P010	TFT	53 kg
4.675 326	1.00	420 x 487 x 579 mm	487 mm	579 mm	420 mm	IP 20	40 °C	240 V	-10 °C	220 V	Touchscreen	220 ... 240 V, 50 Hz	R449A	±0,5 K	-10 ... 40 °C	Unichiller®025w	TFT	59 kg
