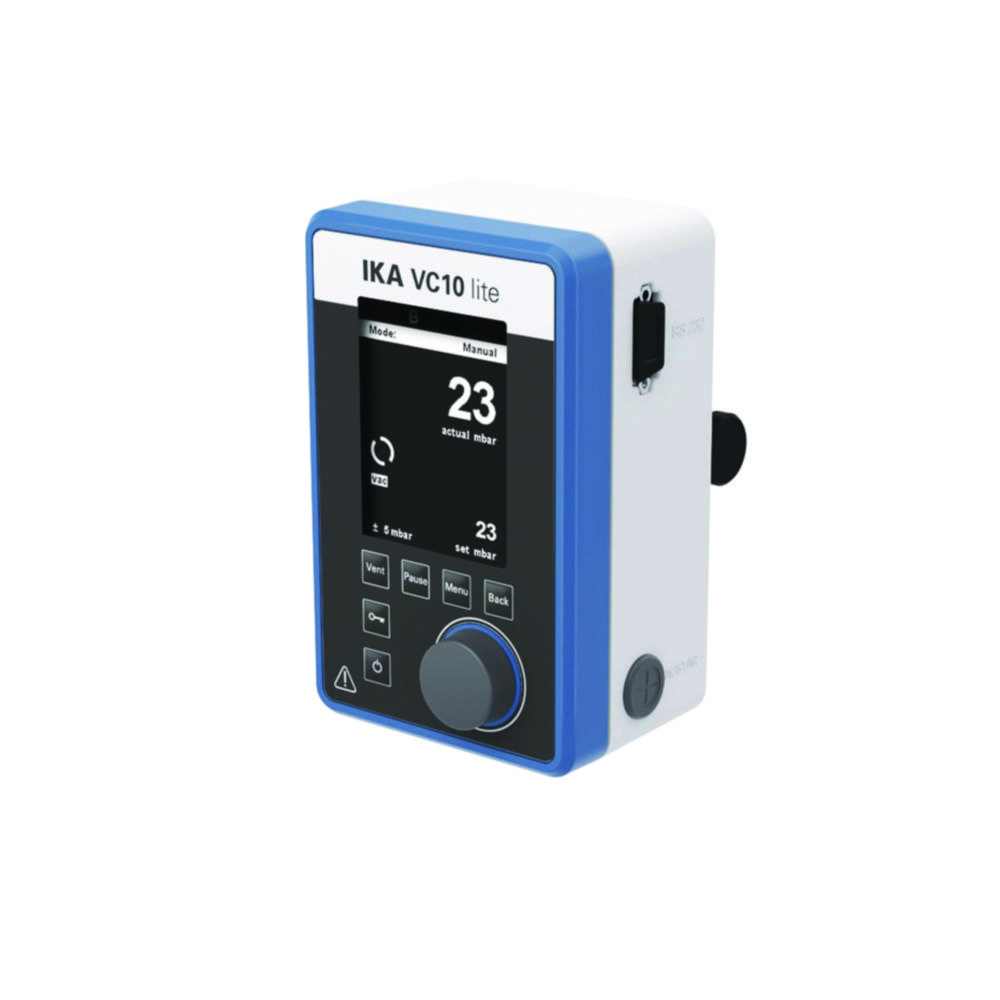

Vacuum controller VC 10 lite
Universal vacuum controller for the controlled evacuation of air (gas) from laboratory equipment, as well as for classical separation, filtration or drying tasks in the laboratory.
- Valve cleaning function for long service life
- Integrated vent valve for easy pressure equalisation and aeration with inert gas after process completion
- VENT short key button enables pressure equalisation during a running process
- Up to ten user-defined programmes with up to ten pressure/time sequences can be saved
- USB/RS232 interfaces for connection to the laboratory software labworldsoft®
- Electronic control system for improved process efficiency and higher solvent recovery rates
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Height | IP code | Max. voltage | Measured range | Min. voltage | Catalog number | Power supply | Rated capacity | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 110 mm | 95 x 110 x 150 mm | 150 mm | IP 20 | 240 V | 1 ... 1,100 mbar | 100 V | 6.325 885 | 100 ... 240 V, 50/60 Hz | 24 W | VC 10 lite | 1.3 kg | 95 mm | 1.00 |
