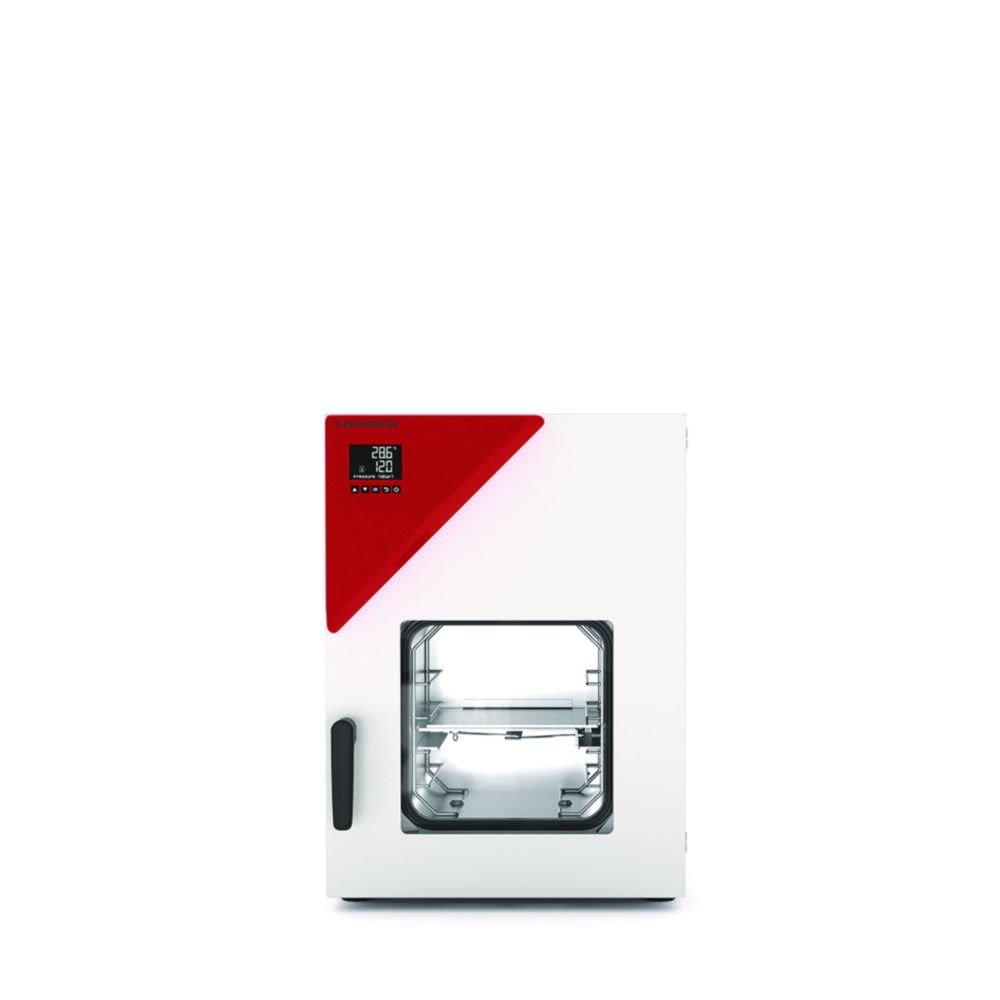

Vacuum drying ovens VD series
For gentle, fast drying without residues, incrustations or oxidation.
- Direct heat transfer through large thermal conducting plates
- Program-controlled drying monitoring with automatic ventilation at end of process
- Internal data logger, measured values can be read out in open format via USB
- Inert gas connection
- Shatterproof, spring-mounted safety glass panel
- Large viewing window
- Aluminum expansion racks, can be custom-positioned
- Ethernet interface
- For non-flammable solvents
- Controller with digital display of pressure and temperature
- Access port DN 16
Toote variatsioonid
Depth int. | Ext. depth | Ext. height | Ext. width | Height int. | Int. width | Material inserts | Max. no. of inserts | Max. temperature | Max. voltage | Min. temperature | Min. voltage | Nominal capacity | Catalog number | Rated capacity | Temp. Stability | Temperature | Type | Weight | PK | Plug type | External dimensions (WxDxH) | Internal dimensions (WxDxH) | Power supply | Temperature | Kogus | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
295 mm | 413 mm | 698 mm | 523 mm | 285 mm | 285 mm | Aluminium | 4 | 220 °C | 230 V | +9 °C | 200 V | 24 l | 4.678 317 | 0.9 kW | ±0,1 K (100 °C) | RT | VD 23 | 64 kg | 1.00 | EU | 523 x 413 x 698 mm | 285 x 295 x 285 mm | 200 ... 230 V, 50/60 Hz | RT+9 ... 220 °C | ||
343 mm | 461 mm | 815 mm | 638 mm | 400 mm | 400 mm | Aluminium | 5 | 220 °C | 230 V | +9 °C | 200 V | 55 l | 4.678 318 | 1.4 kW | ±0,1 K (100 °C) | RT | VD 56 | 96 kg | 1.00 | EU | 638 x 461 x 815 mm | 400 x 343 x 400 mm | 200 ... 230 V, 50/60 Hz | RT+9 ... 220 °C | ||
295 mm | 413 mm | 698 mm | 523 mm | 285 mm | 285 mm | Aluminium | 4 | 220 °C | 230 V | +9 °C | 200 V | 24 l | 6.327 665 | 0.9 kW | ±0,1 K (100 °C) | RT | VD 23 | 64 kg | 1.00 | UK | 523 x 413 x 698 mm | 285 x 295 x 285 mm | 200 ... 230 V, 50/60 Hz | RT+9 ... 220 °C | ||
295 mm | 413 mm | 698 mm | 523 mm | 285 mm | 285 mm | Aluminium | 4 | 220 °C | 120 V | +9 °C | 100 V | 24 l | 4.705 641 | 0.9 kW | ±0,1 K (100 °C) | RT | VD 23UL | 64 kg | 1.00 | US | 523 x 413 x 698 mm | 285 x 295 x 285 mm | 100 ... 120 V, 50/60 Hz | RT+9 ... 220 °C | ||
343 mm | 461 mm | 815 mm | 638 mm | 400 mm | 400 mm | Aluminium | 5 | 220 °C | 120 V | +9 °C | 100 V | 55 l | 4.705 642 | 1.4 kW | ±0,1 K (100 °C) | RT | VD 56UL | 96 kg | 1.00 | US | 638 x 461 x 815 mm | 400 x 343 x 400 mm | 100 ... 120 V, 50/60 Hz | RT+9 ... 220 °C | ||
460 mm | 581 mm | 942 mm | 743 mm | 506 mm | 506 mm | Aluminium | 6 | 220 °C | 120 V | +9 °C | 100 V | 119 l | 4.705 643 | 1.6 kW | ±0,1 K (100 °C) | RT | VD 115UL | 146 kg | 1.00 | US | 743 x 581 x 942 mm | 506 x 460 x 506 mm | 100 ... 120 V, 50/60 Hz | RT+9 ... 220 °C | ||
460 mm | 581 mm | 942 mm | 743 mm | 506 mm | 506 mm | Aluminium | 6 | 220 °C | 230 V | +9 °C | 200 V | 119 l | 4.678 319 | 1.6 kW | ±0,1 K (100 °C) | RT | VD 115 | 146 kg | 1.00 | EU | 743 x 581 x 942 mm | 506 x 460 x 506 mm | 200 ... 230 V, 50/60 Hz | RT+9 ... 220 °C |
