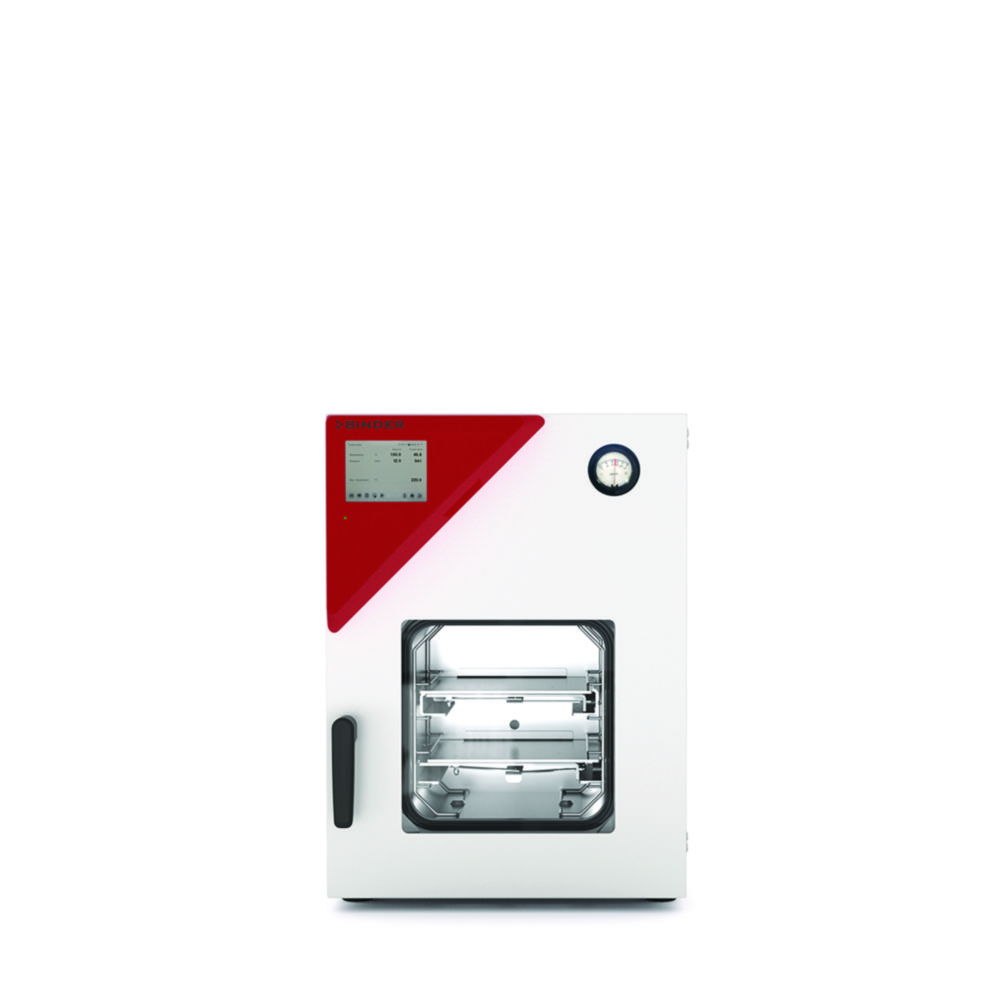

Vacuum drying ovens VDL series
For gentle, fast drying without residues, incrustations or oxidation.
- Direct heat transfer through large thermal conducting plates
- Program-controlled drying monitoring with automatic ventilation at end of process
- Internal data logger, measured values can be read out in open format via USB
- Inert gas connection
- Shatterproof, spring-mounted safety glass panel
- Large viewing window
- Aluminum expansion racks, can be custom-positioned
- Ethernet interface
- For flammable solvents
- ATEX conformity for units: EX II 2/3/- G IIB T3 Gb/Gc/- X
- Intuitive touchscreen controller with graphical pressure and temperature display
- Pressure control device for heating activated from <100 mbar
Toote variatsioonid
| Depth int. | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Height int. | Internal dimensions (WxDxH) | Int. width | Material inserts | Max. no. of inserts | Max. temperature | Max. voltage | Min. temperature | Min. voltage | Nominal capacity | Catalog number | Power supply | Rated capacity | Temp. Stability | Temperature | Temperature | Type | Weight | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 295 mm | 523 x 413 x 698 mm | 413 mm | 698 mm | 523 mm | 285 mm | 285 x 295 x 285 mm | 285 mm | Aluminium | 4 | 110 °C | 120 V | +9 °C | 100 V | 24 l | 4.705 644 | 100 ... 120 V, 50/60 Hz | 0.9 kW | ±0,1 K (100 °C) | RT | RT+9 ... 110 °C | VDL 23 | 72 kg | 1.00 | ||
| 343 mm | 638 x 461 x 815 mm | 461 mm | 815 mm | 638 mm | 400 mm | 400 x 343 x 400 mm | 400 mm | Aluminium | 5 | 110 °C | 230 V | +9 °C | 200 V | 55 l | 4.678 321 | 200 ... 230 V, 50/60 Hz | 1.4 kW | ±0,1 K (100 °C) | RT | RT+9 ... 110 °C | VDL 56 | 104 kg | 1.00 | ||
| 460 mm | 743 x 581 x 942 mm | 581 mm | 942 mm | 743 mm | 506 mm | 506 x 460 x 506 mm | 506 mm | Aluminium | 6 | 110 °C | 230 V | +9 °C | 200 V | 119 l | 4.678 322 | 200 ... 230 V, 50/60 Hz | 1.6 kW | ±0,1 K (100 °C) | RT | RT+9 ... 110 °C | VDL 115 | 158 kg | 1.00 | ||
| 295 mm | 523 x 413 x 698 mm | 413 mm | 698 mm | 523 mm | 285 mm | 285 x 295 x 285 mm | 285 mm | Aluminium | 4 | 110 °C | 230 V | +9 °C | 200 V | 24 l | 4.710 129 | 200 ... 230 V, 50/60 Hz | 0.9 kW | ±0,1 K (100 °C) | RT | RT+9 ... 110 °C | VDL 23 | 72 kg | 1.00 | ||
| 295 mm | 523 x 413 x 698 mm | 413 mm | 698 mm | 523 mm | 285 mm | 285 x 295 x 285 mm | 285 mm | Aluminium | 4 | 110 °C | 230 V | +9 °C | 200 V | 24 l | 4.678 320 | 200 ... 230 V, 50/60 Hz | 0.9 kW | ±0,1 K (100 °C) | RT | RT+9 ... 110 °C | VDL 23 | 72 kg | 1.00 | ||
| 460 mm | 743 x 581 x 942 mm | 581 mm | 942 mm | 743 mm | 506 mm | 506 x 460 x 506 mm | 506 mm | Aluminium | 6 | 110 °C | 120 V | +9 °C | 100 V | 119 l | 4.705 646 | 100 ... 120 V, 50/60 Hz | 1.6 kW | ±0,1 K (100 °C) | RT | RT+9 ... 110 °C | VDL 115 | 158 kg | 1.00 | ||
| 343 mm | 638 x 461 x 815 mm | 461 mm | 815 mm | 638 mm | 400 mm | 400 x 343 x 400 mm | 400 mm | Aluminium | 5 | 110 °C | 120 V | +9 °C | 100 V | 55 l | 4.705 645 | 100 ... 120 V, 50/60 Hz | 1.4 kW | ±0,1 K (100 °C) | RT | RT+9 ... 110 °C | VDL 56 | 104 kg | 1.00 |
