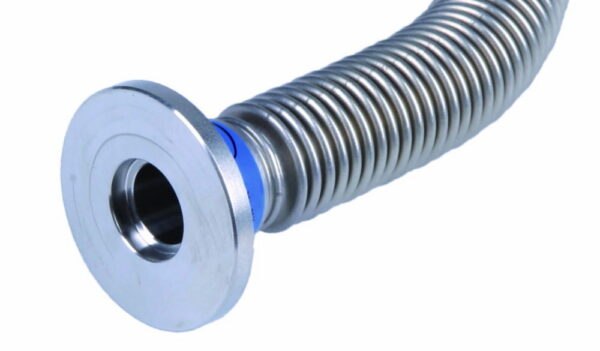

Vacuum fittings, flexible metal tubing, concertina
Flanged at both ends. For Type KF small flange.
B1 = Minimum radius for one-off bending.
B2 = Minimum radius for repeated bending.
Toote variatsioonid
| Size | Length mm | B1 | B2 | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|
| DN 10 | 750 | 18 | 50 | 9.882 594 | 1.00 | ||
| DN 25 | 1000 | 35 | 100 | 9.882 603 | 1.00 | ||
| DN 16 | 750 | 25 | 75 | 9.882 599 | 1.00 | ||
| DN 16 | 500 | 25 | 75 | 9.882 597 | 1.00 | ||
| DN 40 | 750 | 60 | 150 | 9.882 609 | 1.00 | ||
| DN 25 | 500 | 35 | 100 | 9.882 602 | 1.00 | ||
| DN 10 | 500 | 18 | 50 | 9.882 592 | 1.00 | ||
| DN 10 | 1000 | 18 | 50 | 9.882 593 | 1.00 | ||
| DN 10 | 250 | 18 | 50 | 9.882 591 | 1.00 | ||
| DN 16 | 250 | 25 | 75 | 9.882 596 | 1.00 | ||
| DN 25 | 750 | 35 | 100 | 9.882 604 | 1.00 | ||
| DN 25 | 250 | 35 | 100 | 9.882 601 | 1.00 | ||
| DN 16 | 1000 | 25 | 75 | 9.882 598 | 1.00 | ||
| DN 40 | 1000 | 60 | 150 | 9.882 608 | 1.00 | ||
| DN 40 | 500 | 60 | 150 | 9.882 607 | 1.00 | ||
| DN 40 | 250 | 60 | 150 | 9.882 606 | 1.00 |
