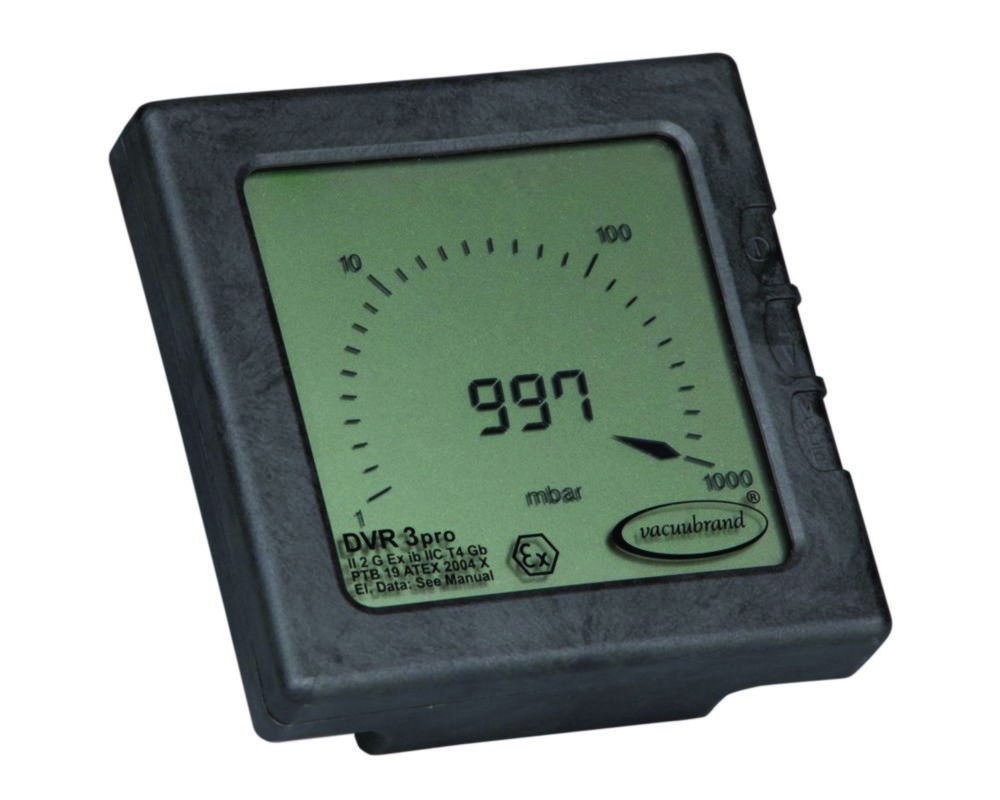

Vacuum measuring instrument DVR 3 pro
Fully electronic, versatile vacuum gauge with ATEX approval for use in areas with potentially explosive atmospheres (ATEX category 2). High degree of immunity to electromagnetic interference, suitable for use in industrial environments.
- Integrated vacuum sensor made of alumina ceramic with excellent chemical resistance
- Display with large analogue display and digital measured value
- Low EMI emission level near detection limit
- Adjustable duty cycle and measurement frequency for particularly battery-friendly operation
- Acc. to PTB 19 ATEX 2004 X: II 2G EX ib IIC T4 Gb
- Measurement principle: capacitive, gas type-independent absolute pressure measurement
Scope of supply: Vacuum measuring instrument, integrated vacuum sensor, connecting parts, hex key, battery, manual
Toote variatsioonid
| Accuracy Number | Battery/rechargeable battery | Depth | Dimensions (WxDxH) | Height | IP code | Measured range | Catalog number | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 V, AlMn | 117 mm | 117 x 117 x 91 mm | 91 mm | IP 40 | 1 ... 1,060 mbar | 6.314 573 | DVR 3 pro | 400 g | 117 mm | 1.00 |
