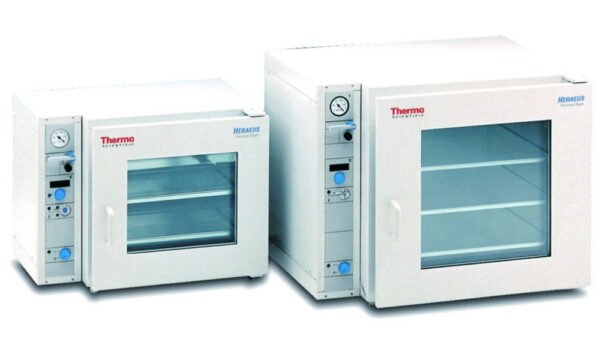

Vacuum oven Vacutherm™ VT 6000 P, heated shelves
Tubular heating elements in the shelves heat the sample directly, providing rapid heat-up and processing times. With individual shelf temperature control, a common temperature value is set for all plates. With Digicon® electronic temperature controller.
Fully equipped vacuum pump control station Vacucenter available as an accessory for Vacutherm™ 6060 and 6130 ovens. Choice of 3 different vacuum pumps available according to operating conditions.
Toote variatsioonid
| Depth int. | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Height int. | Internal dimensions (WxDxH) | Int. width | IP code | Material interior | Max. no. of inserts | Max. temperature | Max. voltage | Min. temperature | Nominal capacity | Catalog number | Power supply | Rated capacity | Temperature | Temperature | Type | Ultimate vacuum | Weight | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 371 mm | 744 x 570 x 576 mm | 570 mm | 576 mm | 744 mm | 345 mm | 415 x 371 x 345 mm | 415 mm | IP 20 | Stainless steel 1.4404 | 2 | 300 °C | 230 V | -10 °C | 53 l | 9.883 513 | 230 V, 50...60 Hz | 1600 W | RT | RT+10 ... 300 °C | VT 6060 P | 0.01 mbar | 90 kg | 1.00 | ||
| 529 mm | 895 x 750 x 720 mm | 750 mm | 720 mm | 895 mm | 489 mm | 495 x 529 x 489 mm | 495 mm | IP 20 | Stainless steel 1.4404 | 3 | 300 °C | 230 V | -10 °C | 128 l | 9.883 514 | 230 V, 50...60 Hz | 3000 W | RT | RT+10 ... 300 °C | VT 6130 P | 0.01 mbar | 164 kg | 1.00 |
