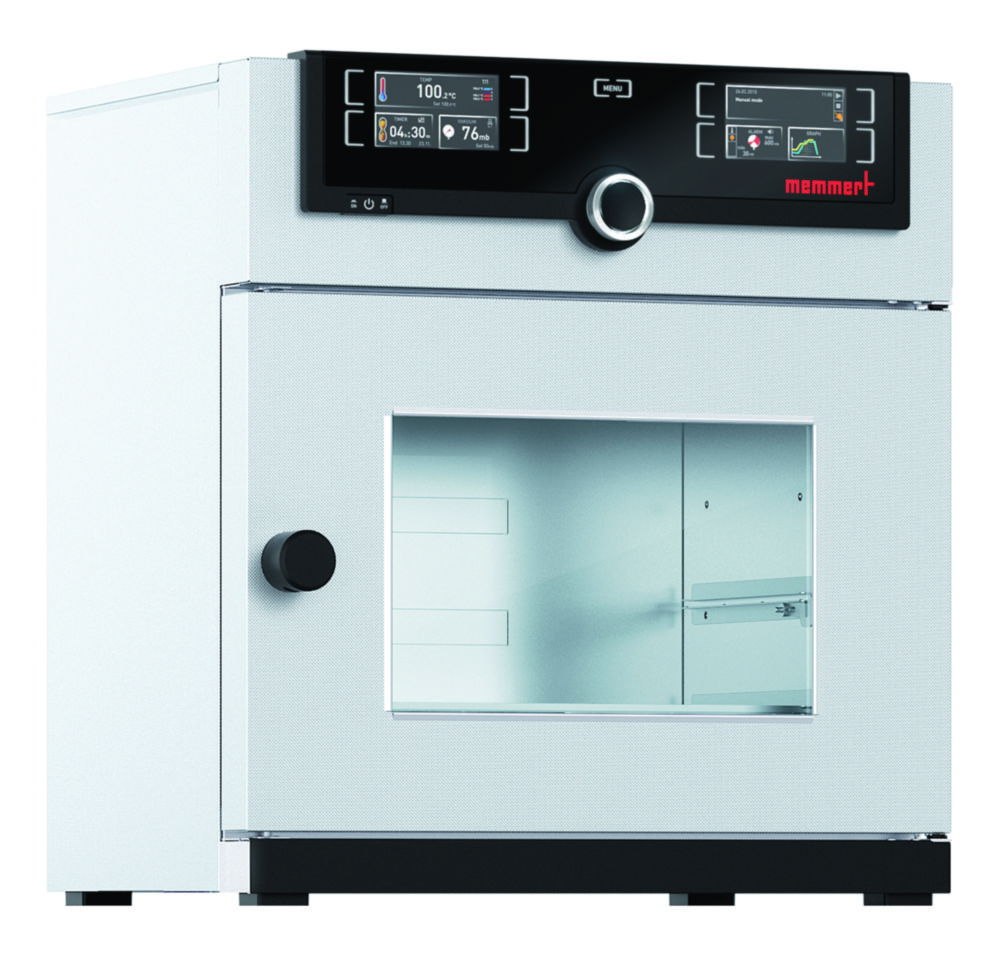

Vacuum Ovens VO
Reliable, comfortable and energy-efficient – that’s how vacuum drying works today. Separately adjustable and directly heated thermoshelves ensure precise temperature control and, thanks to the digital pressure control, the chamber load is not only dried at high speed but also extremely gently in our powerful and robust vacuum drying oven.
- Safety glass door with armoured glass on the inside and splinter shield on the outside
- Digital pressure control
- Directly heated and individually controllable thermoshelves
- With 2 thermoshelf connections
- Optional: Pump base cabinet and energy-efficient vacuum pump
Model variant TwinDISPLAY: ControlCOCKPIT with two colour displays
You can find a detailed description of the “TwinDISPLAY” model at www.memmert.com
Scope of supply: Vacuum drying oven, 1 aluminium thermoshelf, calibration certificate (for 160 °C at 20 mbar), software AtmoCONTROL
Toote variatsioonid
| Depth int. | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Height int. | Internal dimensions (WxDxH) | Int. width | Material inserts | Material interior | Max. no. of inserts | Max. temperature | Max. voltage | Min. temperature | Nominal capacity | Catalog number | Power supply | Rated capacity | Temperature | Temperature | Type | Ultimate vacuum | Weight | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 250 mm | 550 x 400 x 607 mm | 400 mm | 607 mm | 550 mm | 305 mm | 385 x 250 x 305 mm | 385 mm | Aluminium | Stainless steel 1.4404 | 2 | 200 °C | 230 V | 5 °C | 29 l | 4.663 352 | 230 V, 50...60 Hz | 820 W | RT | RT+5 ... 200 °C | VO29 | 0.01 mbar | 55 kg | Yes | 1.00 | ||
| 400 mm | 710 x 550 x 767 mm | 550 mm | 767 mm | 710 mm | 465 mm | 545 x 400 x 465 mm | 545 mm | Aluminium | Stainless steel 1.4404 | 2 | 200 °C | 230 V | 5 °C | 101 l | 4.663 354 | 230 V, 50...60 Hz | 2420 W | RT | RT+5 ... 200 °C | VO101 | 0.01 mbar | 110 kg | Yes | 1.00 | ||
| 350 mm | 550 x 480 x 687 mm | 480 mm | 687 mm | 550 mm | 385 mm | 385 x 350 x 385 mm | 385 mm | Aluminium | Stainless steel 1.4404 | 2 | 200 °C | 230 V | 5 °C | 49 l | 4.663 353 | 230 V, 50...60 Hz | 2020 W | RT | RT+5 ... 200 °C | VO49 | 0.01 mbar | 83 kg | Yes | 1.00 |
