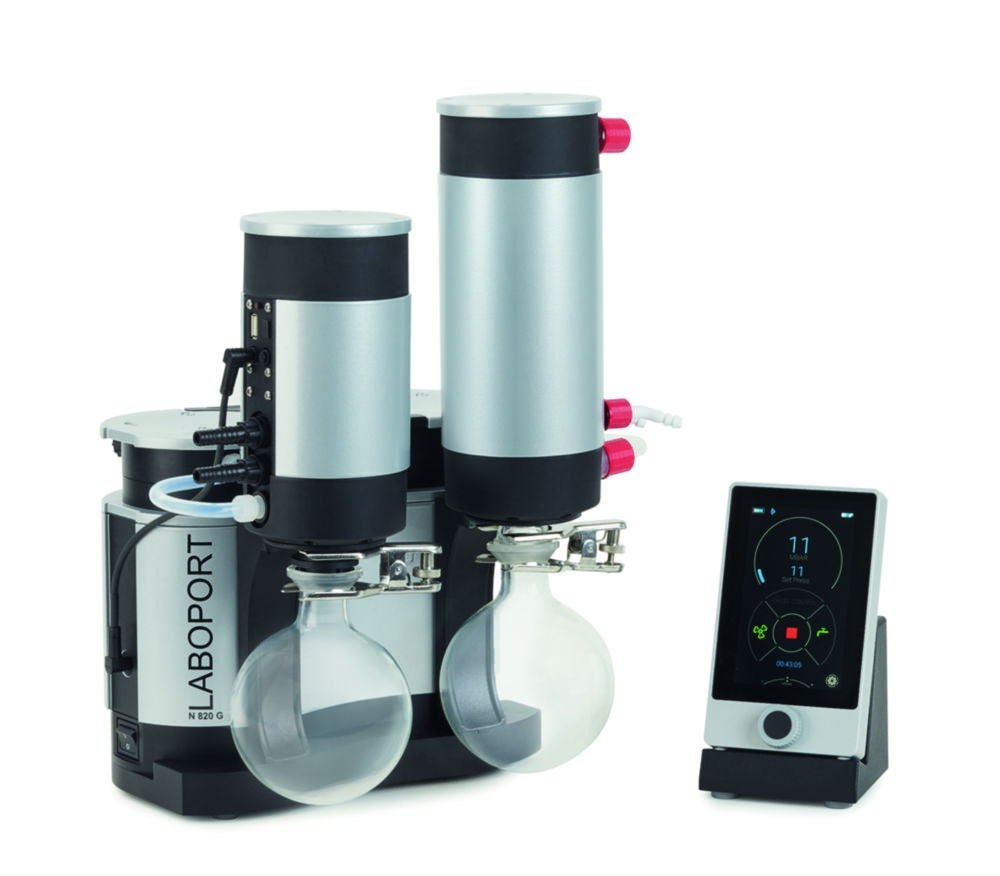

Vacuum pump systems LABOPORT® SC 820 G / SC 840 G
Vacuum pump systems consisting of chemically resistant diaphragm vacuum pump, base plate, separator on suction side, high performance condenser on pressure side and vacuum controller for rotary evaporations, distillations and vacuum ovens. Automatic, accurate recognition and monitoring of the boiling point using the integrated ramp function.
- High recovery rates
- Wireless controller via Bluetooth for safe operation from outside closed fume hoods
- Easy, intuitive control via touchscreen display and rotation knob
- Integrated gas ballast valve
- Four operating modes
- Integrated speed control
- ATEX compliant to (Ex) II 3/-G Ex h IIB+H2 T3 Gc internal atmosphere only
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | IP code | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Rated capacity | Type | Ultimate vacuum | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 274 mm | 366 x 274 x 416 mm | 34 l/min | 416 mm | IP 30 | 240 V | 100 V | 4.686 318 | EU/UK/CH | 100 ... 240 V | 100 W | SC 840 G | 6 mbar | 15.75 kg | 366 mm | 1.00 | ||
| 260 mm | 347 x 260 x 416 mm | 20 l/min | 416 mm | IP 30 | 240 V | 100 V | 4.686 317 | EU/UK/CH | 100 ... 240 V | 60 W | SC 820 G | 6 mbar | 13.35 kg | 347 mm | 1.00 |
