Vacuum pump systems LABOPORT® SH 820 G / SH 840 G

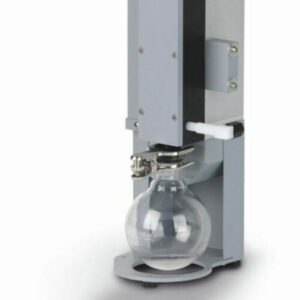

Vacuum pump systems consisting of chemically resistant diaphragm vacuum pump, base plate, inlet separator and outlet condensor for solvent recovery. The PTFE pump head and the PTFE-coated diaphragm make the vacuum systems suitable for aggressive / corrosive gases and vapours.
- 100 % oil-free transfer
- High level of vapor and condensate compatibility
- Integrated gas ballast valve
- 3-color status display (in operation / stand-by / error)
- Integrated speed control
- Start against ultimate vacuum of the pump
- Modular expandable
Toote variatsioonid
| Catalog number | PK | Depth | Dimensions (WxDxH) | Flow rate | Height | IP code | Max. voltage | Min. voltage | Plug type | Power supply | Rated capacity | Type | Ultimate vacuum | Weight | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.684 034 | 1.00 | 274 mm | 340 x 274 x 416 mm | 34 l/min | 416 mm | IP 30 | 240 V | 100 V | EU | 100 ... 240 V, 50/60 Hz | 100 W | SH 840 G | 6 mbar | 14.1 kg | 340 mm | ||
| 4.684 033 | 1.00 | 260 mm | 323 x 260 x 416 mm | 20 l/min | 416 mm | IP 30 | 240 V | 100 V | EU | 100 ... 240 V, 50/60 Hz | 60 W | SH 820 G | 6 mbar | 11.7 kg | 323 mm | ||
| 4.686 734 | 1.00 | 274 mm | 340 x 274 x 416 mm | 34 l/min | 416 mm | IP 30 | 115 V | - | US | 115 V, 60 Hz | 100 W | U SH 840 G | 6 mbar | 14.1 kg | 340 mm | ||
| 4.686 735 | 1.00 | 260 mm | 323 x 260 x 416 mm | 20 l/min | 416 mm | IP 30 | 115 V | - | US | 115 V, 60 Hz | 60 W | U SH 820 G | 6 mbar | 11.7 kg | 323 mm |
