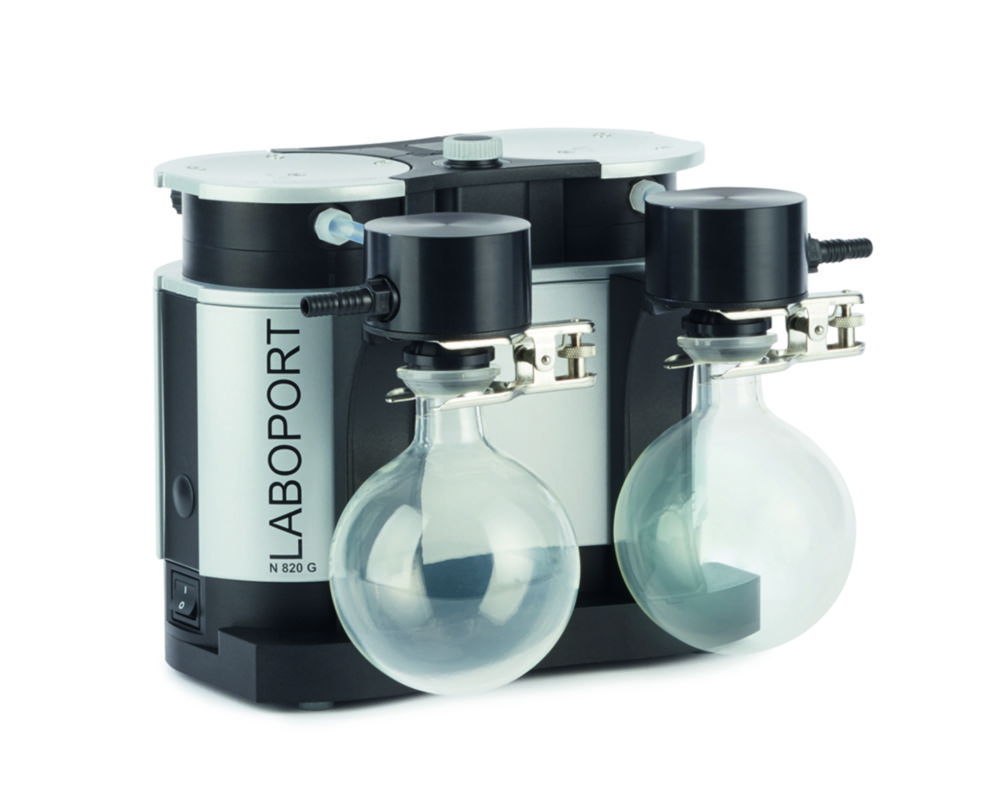

Vacuum pump systems LABOPORT® SR 820 G / SR 840 G
Vacuum pump system, consisting of chemically resistant diaphragm vacuum pump, base plate and two separator flasks on suction and pressure side, for filtrations, degassings fluid aspirations centrifugal concentrations and vacuum ovens. The PTFE pump head and the PTFE-coated diaphragm make the vacuum systems suitable for aggressive / corrosive gases and vapours.
- 100 % oil-free transfer
- High level of vapor and condensate compatibility
- Integrated gas ballast valve
- 3-colour status display (in operation / stand-by / error)
- Integrated speed control
- Start against ultimate vacuum of the pump
- Modular expandable
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | IP code | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Rated capacity | Type | Ultimate vacuum | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 260 mm | 282 x 260 x 234 mm | 20 l/min | 234 mm | IP 30 | 240 V | 100 V | 4.684 031 | EU/UK/CH | 100 ... 240 V | 60 W | SR 820 G | 6 mbar | 10.7 kg | 282 mm | 1.00 | ||
| 260 mm | 282 x 260 x 234 mm | 20 l/min | 234 mm | IP 30 | 115 V | - | 4.686 733 | US | 115 V | 60 W | U SR 820 G | 6 mbar | 10.7 kg | 282 mm | 1.00 | ||
| 274 mm | 299 x 274 x 250 mm | 34 l/min | 250 mm | IP 30 | 240 V | 100 V | 4.684 032 | EU/UK/CH | 100 ... 240 V | 100 W | SR 840 G | 6 mbar | 13.1 kg | 299 mm | 1.00 | ||
| 274 mm | 299 x 274 x 250 mm | 34 l/min | 250 mm | IP 30 | 115 V | - | 4.686 732 | US | 115 V | 100 W | U SR 840 G | 6 mbar | 13.1 kg | 299 mm | 1.00 |
