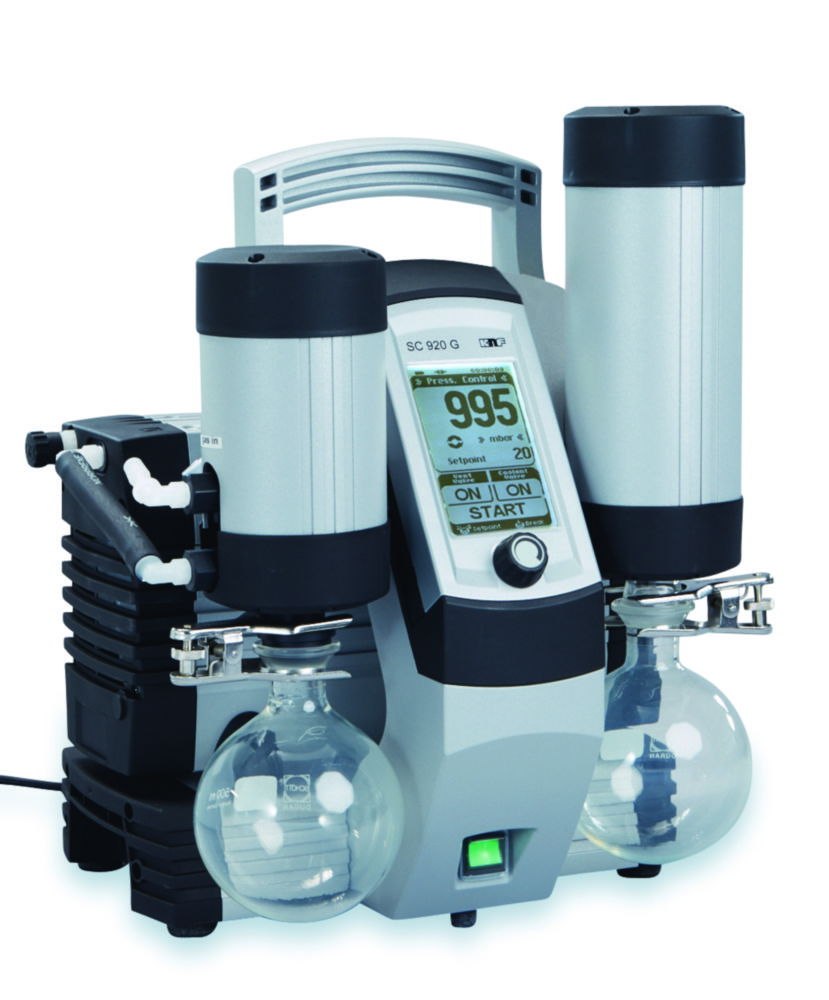

Vacuum system SC 920 G
Vacuum system for 1 rotary evaporator.
- Application: Rotary evaporation, distillation, central vacuum supply
- Flow rate up to 1.21 m³/h / Ultimate vacuum 2 mbar abs.
- Automatic, precise boiling point detection and boiling point tracking using an integrated ramp function
- PPS pump heads in combination with PTFE-coated diaphragms are ideal for aggressive/corrosive gases and vapours
- Speed controlled
- Integrated gas ballast valve
- Connectors for tube: pneumatic ID10 mm, coolants ID8 mm, inert gas ID6 mm
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | Max. voltage | Catalog number | Plug type | Power supply | Type | Ultimate vacuum | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 294 mm | 366 x 294 x 423 mm | 21 l/min | 423 mm | 240 V | 4.658 071 | EU | 240 V, 50/60 Hz | SC 920 G | 2 mbar | 366 mm | 1.00 | ||
| 294 mm | 366 x 294 x 423 mm | 21 l/min | 423 mm | 240 V | 6.319 732 | UK | 240 V, 50/60 Hz | SC 920 G | 2 mbar | 366 mm | 1.00 | ||
| 294 mm | 366 x 294 x 423 mm | 21 l/min | 423 mm | 115 V | 4.686 726 | US | 115 V, 60 Hz | U SC 920 G | 2 mbar | 366 mm | 1.00 |
