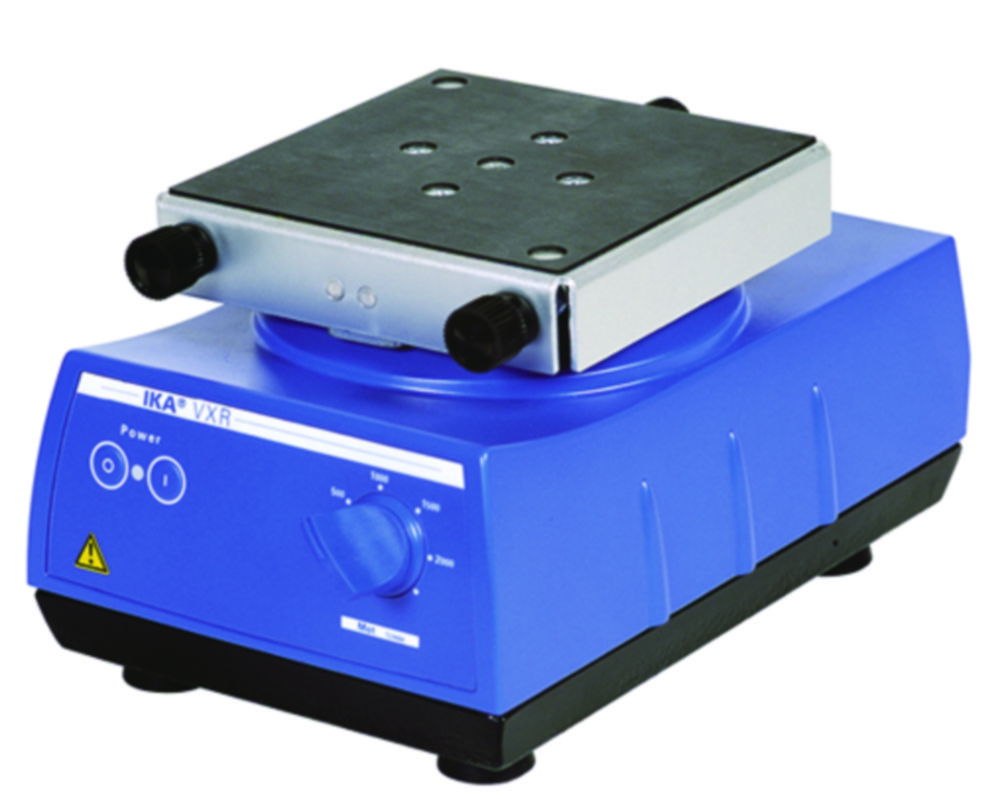

Vibrating shaker, VXR basic Vibrax®
Optoelectronically controlled small shaker with a very wide speed range.
- Suitable for continuous operation
- New design and improved drive system
- Circular shaking motions
- Slow speeds are well maintained
- Attachments are interchangeable
Please order the required shaker attachment separately.
Optional accessories: Attachements: VX 1, VX 2, VX 2E, VX 7, VX 8, VX 11, VX 11.1, VX11.2, VX 11.3, VX 11.4
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Height | IP code | Max. speed | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Rated capacity | Shaking stroke | Speed | Type | Type of movement | Weight | Width | With timer | With touch operation | PK | Min. speed | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 247 mm | 157 x 247 x 130 mm | 130 mm | IP 21 | 2200 1/min | 240 V | 220 V | 6.202 467 | UK | 220 ... 240 V, 50/60 Hz | 45 W | 4 mm | 100 ... 2,200 1/min | VXR basic | Orbital | 6.1 kg | 157 mm | No | No | 1.00 | 100 1/min | ||
| 247 mm | 157 x 247 x 130 mm | 130 mm | IP 21 | 2200 1/min | 240 V | 220 V | 9.729 900 | EU | 220 ... 240 V, 50/60 Hz | 45 W | 4 mm | 100 ... 2,200 1/min | VXR basic | Orbital | 6.1 kg | 157 mm | No | No | 1.00 | 100 1/min | ||
| 247 mm | 157 x 247 x 130 mm | 130 mm | IP 21 | 2200 1/min | 120 V | 100 V | 4.007 985 | - | 100 ... 120 V, 50/60 Hz | 45 W | 4 mm | 100 ... 2,200 1/min | VXR basic | Orbital | 6.1 kg | 157 mm | No | No | 1.00 | 100 1/min | ||
| 247 mm | 157 x 247 x 130 mm | 130 mm | IP 21 | 2200 1/min | 240 V | 220 V | 6.240 796 | CH | 220 ... 240 V, 50/60 Hz | 45 W | 4 mm | 100 ... 2,200 1/min | VXR basic | Orbital | 6.1 kg | 157 mm | No | No | 1.00 | 100 1/min |
