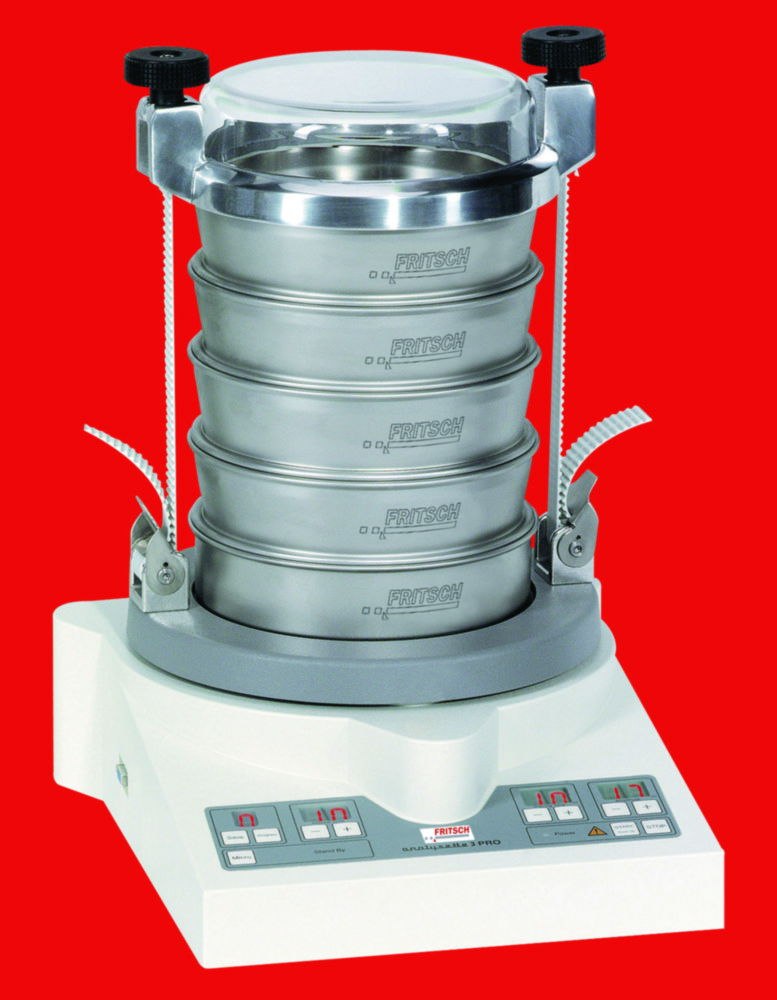

Vibratory sieve shaker ANALYSETTE 3 PRO and SPARTAN
For quantitative particle size analysis of dry samples and suspensions of all kind by dry and wet sieving with woven test sieves. FRITSCH Sieve Shakers satisfy all requirements for accurate and reproducible sieving analysis and perform automatic sieve analysis with the control and evaluation software AUTOSIEVE, which is delivered as trial version for 90 days. The top model ANALYSETTE 3 PRO guarantees absolutely reproducible sieving results due to automatic amplitude control, programme selection, can be integrated as testing device into any quality management systems, has an RS232-interface, to mention only some of its innovative and practical features.
Toote variatsioonid
| Width | Power supply | Catalog number | Amplitude | Depth | Dimensions (WxDxH) | PK | Height | Max. amplitude | Max. feed quantity | Max. measurand | Max. sieve stack mass | Max. voltage | Measurand range | Min. amplitude | Min. measurand | Min. voltage | Plug type | Rated capacity | Type | Type of sieving | Weight | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 370 mm | 100 ... 240 V, 50/60 Hz | 9.826 402 | 0.1 ... 3 mm | 400 mm | 370 x 400 x 200 mm | 1.00 | 200 mm | 3 mm | 2000 g | 63 mm | 3 kg | 240 V | 0.02 ... 63 mm | 0.1 mm | 0.02 mm | 100 V | EU | 50 W | ANALYSETTE 3 PRO | Dry/wet sieving | 21 kg | ||
| 370 mm | 100 ... 240 V, 50/60 Hz | 9.826 403 | 0.5 ... 3 mm | 400 mm | 370 x 400 x 200 mm | 1.00 | 200 mm | 3 mm | 2000 g | 63 mm | 3 kg | 240 V | 0.02 ... 63 mm | 0.5 mm | 0.02 mm | 100 V | EU | 50 W | ANALYSETTE 3 SPARTAN | Dry/wet sieving | 21 kg |
