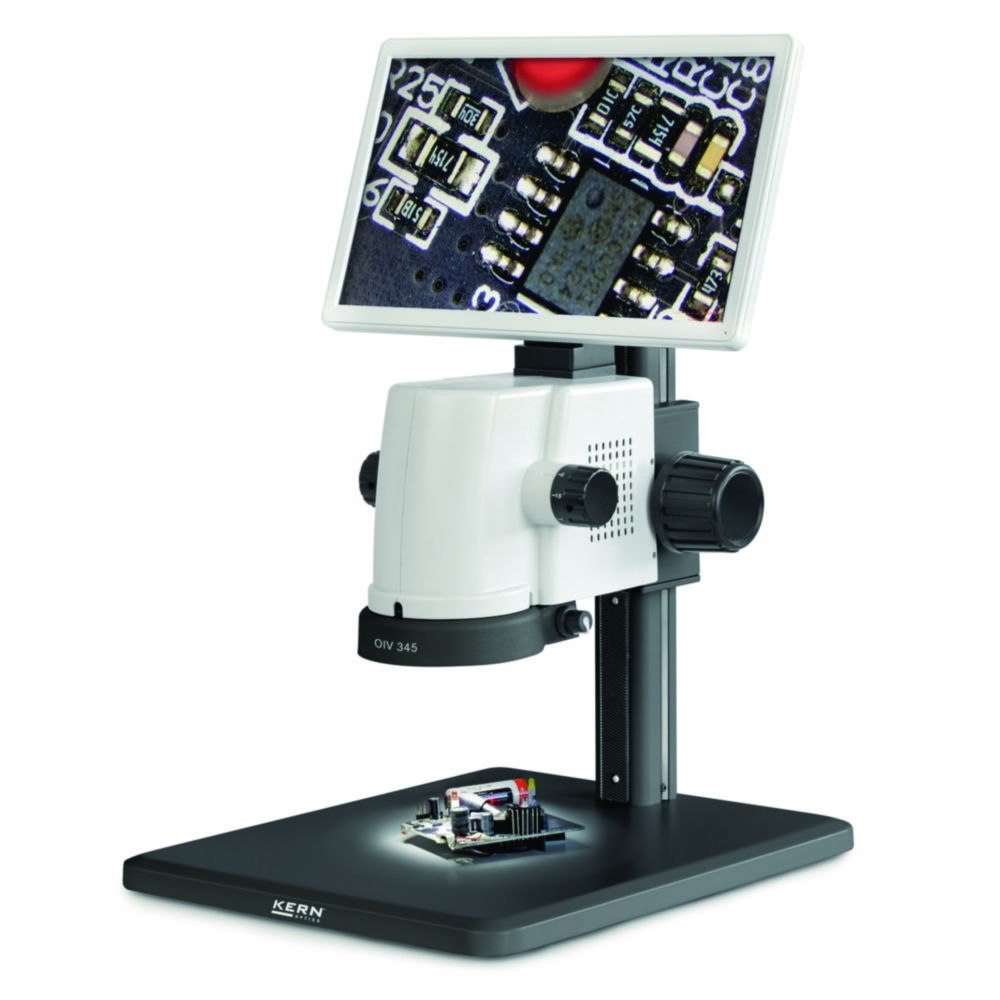

Video microscope OIV-3
The powerful 5.0 megapixel camera of the microscope without eyepieces offers, thanks to the HDMI output, smooth live monitoring of the samples from the HD monitor. An additional HDMI interface makes it possible to connect an external monitor.
- Optical system: Axial
- 3 W LED incident illumination unit (ring)
- OIV 355 additionally with 5W transmitted light illumination
- Dimmable lighting
- Large working surface
- Stand mechanic
- Zoom wheels with integrated click-stop
- Screen: 12“, 1920×1080 HD
- Data storage: External using USB (max. 128 GB)
Scope of supply: Video microscope, software for image and video recording and documentation, USB mouse, USB stick, dust cover, user instructions
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Height | Interfaces | Light type | Max. voltage | Catalog number | Plug type | Power supply | Sensor | Type | Weight | Width | Working distance | PK | Min. voltage | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 260 mm | 320 x 260 x 450 mm | 450 mm | USB 2.0, HDMI | LED | 240 V | 4.691 086 | EU | 100 ... 240 V, 50/60 Hz | Sony CMOS 1/2.8" | OIV 345 | 4.4 kg | 320 mm | 100 mm | 1.00 | 100 V |
