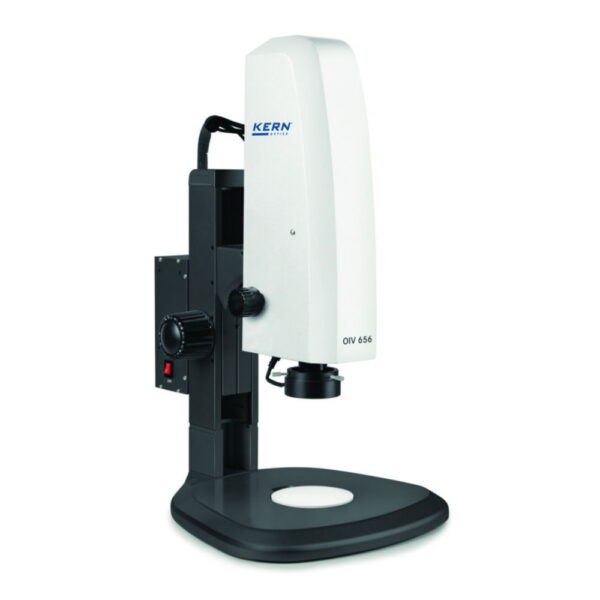

Video microscope OIV-6
The powerful 2.0 megapixel camera of the microscope without eyepieces offers, thanks to the HDMI output, live monitoring of the samples on an external monitor (not included with delivery). Through the integrated auto-focus, the focus level can also be optimised within a defined image section.
- Optical system: Axial
- 3 W LED incident illumination unit (ring)
- Dimmable lighting
- Large working surface
- Stand mechanic
- Data storage: External using USB (max. 128 GB)
Scope of supply:
Video microscope, software for image and video recording and documentation, USB mouse, USB stick, user instructions
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Height | Interfaces | Light type | Max. voltage | Objective system | Catalog number | Plug type | Power supply | Sensor | Type | Weight | Width | Working distance | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 285 mm | 372 x 285 x 482 mm | 482 mm | USB 2.0, HDMI | LED | 230 V | Zoom | 4.691 087 | EU | 230 V, 50 Hz | CMOS 1/2,8" | OIV 656 | 7 kg | 372 mm | 91 mm | 1.00 |
