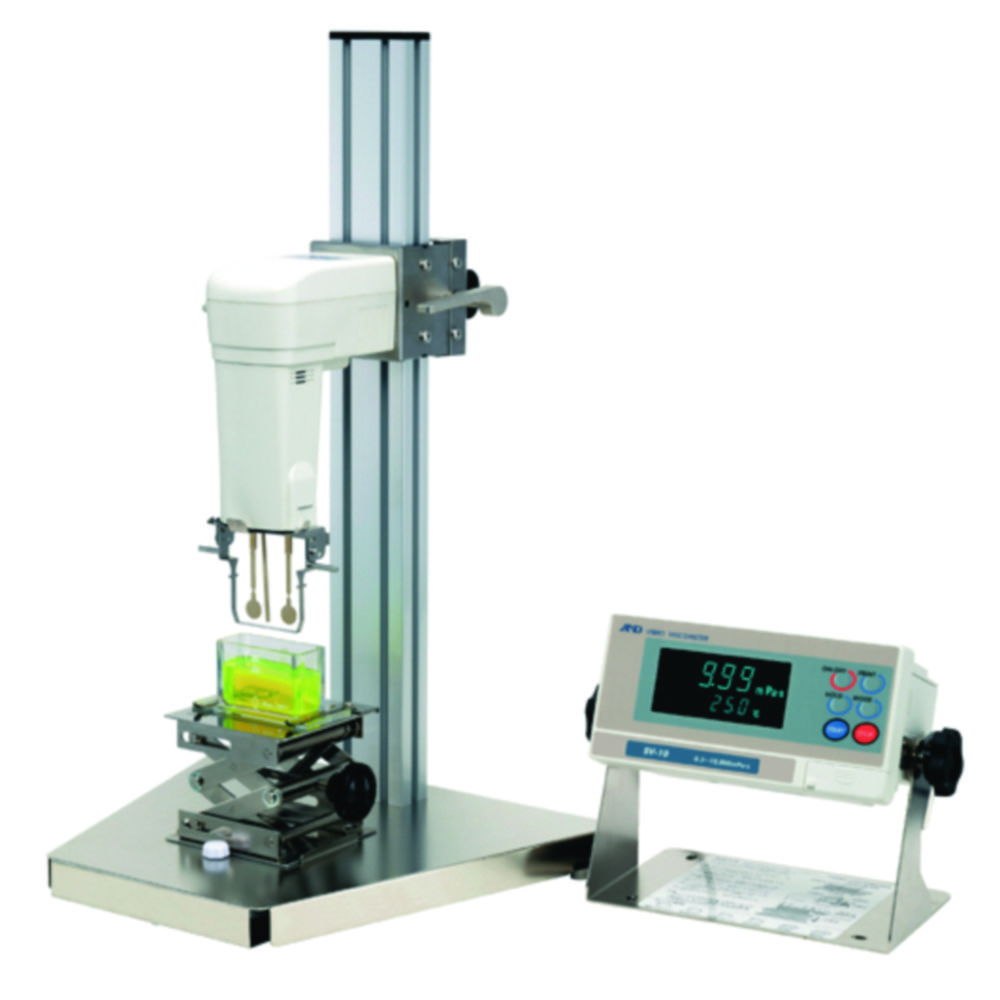

Viscometer SV-10 / SV-100
Sine-wave Vibro Viscometer SV-10/SV-100 measures viscosity by detecting the driving electric current necessary to resonate the two sensor plates at constant frequency of 30 Hz and amplitude of less than 1 mm.
- Wide range of measurements
- Temperature measurements: 0 to 160 °C
- High accuracy: ±1% of measured value
- Small sample size of 35 ml and optional 10 ml sample vial or 13 ml quartz glass vial
- Easy cleaning of stainless steel sensor plates and temperature sensor (all gold plated)
- WinCT-Viscosity is software to import the measured data of viscosity and temperature to a PC and graphically display the changes in real-time for your analysis
- Easy calibration with distilled water (SV-10)
- Sample heating or cooling with “Water Jacket”
- Approved measuring method acc. to JCSS (Japan Calibration Service Systems)
Toote variatsioonid
| Catalog number | PK | Max. temperature | Max. Viscosity | Min. temperature | Min. viscosity | Temperature | Type | Viscosity | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9.901 561 | 1.00 | 160 °C | 100 Pa·s | 0 °C | 1 Pa·s | 0 ... 160 °C | SV-100 | 1 ... 100 Pa·s | ||
| 9.901 560 | 1.00 | 160 °C | 10000 mPa·s | 0 °C | 0.3 mPa·s | 0 ... 160 °C | SV-10 | 0.3 ... 10,000 mPa·s |
