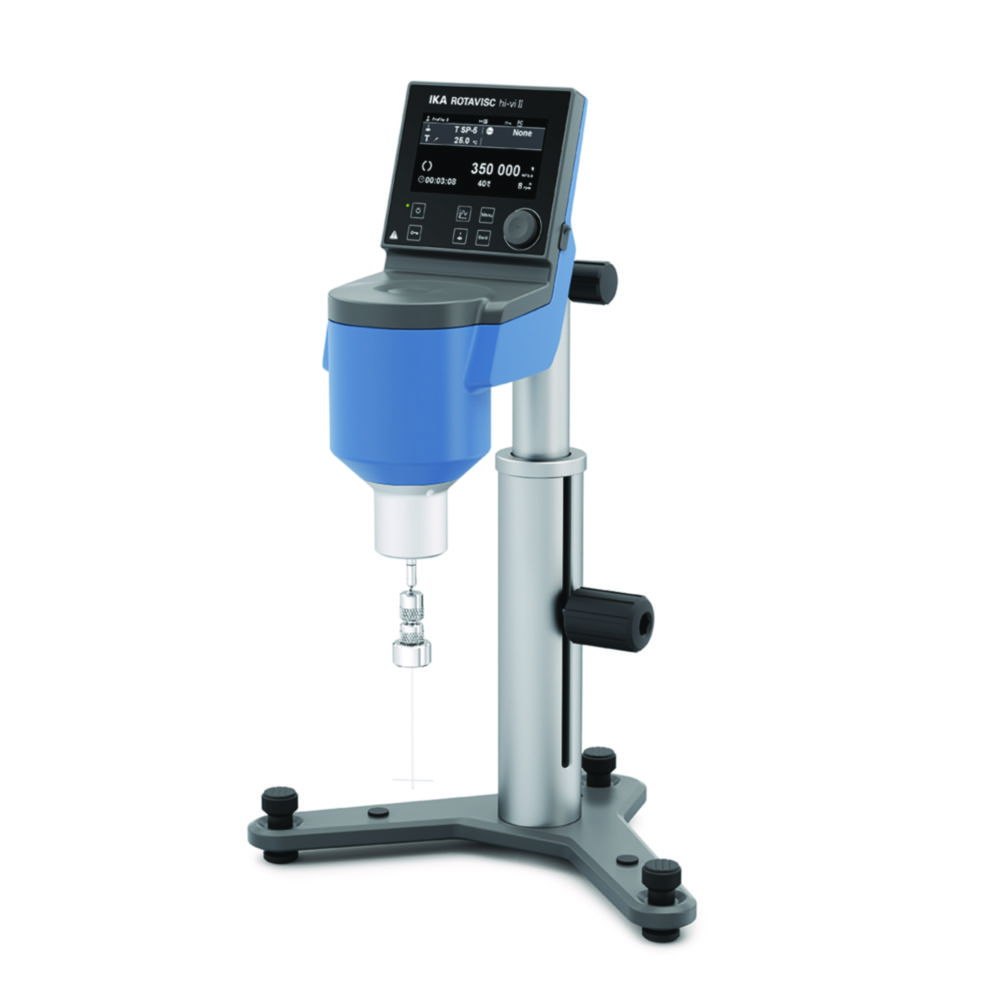

Viscometers ROTAVISC Complete
Scope of supply: Viscometers, stand ROTASTAND, spindles SP set-2, temperature sensor PT 100.8, protective bracket
Toote variatsioonid
| Depth | Height | Interfaces | IP code | Max. speed | Max. voltage | Min. speed | Min. voltage | Catalog number | Plug type | Reproducibility | Type | Weight | Width | PK | Max. torque | Max. Viscosity | Min. viscosity | Dimensions (WxDxH) | Power supply | Speed | Torque | Viscosity | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 372 mm | 629 mm | RS 232, USB | IP 40 | 200 1/min | 240 V | 0.01 1/min | 100 V | 4.700 203 | EU/UK/CH | 0,2 % | ROTAVISC hi-vi I Complete | 7.1 kg | 351 mm | 1.00 | 1.4374 mNm | 80000000 mPa·s | 200 mPa·s | 351 x 372 x 629 mm | 100 ... 240 V, 50/60 Hz | 0.01 ... 200 1/min | 1.4374 mNm | 200 ... 80000000 mPa·s | ||
| 372 mm | 629 mm | RS 232, USB | IP 40 | 200 1/min | 240 V | 0.01 1/min | 100 V | 6.521 075 | EU/UK/CH | 0,2 % | ROTAVISC me-vi Complete | 7.1 kg | 351 mm | 1.00 | 0.7187 mNm | 40000000 mPa·s | 100 mPa·s | 351 x 372 x 629 mm | 100 ... 240 V, 50/60 Hz | 0.01 ... 200 1/min | 0.7187 mNm | 100 ... 40000000 mPa·s | ||
| 372 mm | 629 mm | RS 232, USB | IP 40 | 200 1/min | 240 V | 0.01 1/min | 100 V | 4.700 205 | EU/UK/CH | 0,2 % | ROTAVISC hi-vi II Complete | 7.1 kg | 351 mm | 1.00 | 5.7496 mNm | 320000000 mPa·s | 800 mPa·s | 351 x 372 x 629 mm | 100 ... 240 V, 50/60 Hz | 0.01 ... 200 1/min | 5.7496 mNm | 800 ... 320000000 mPa·s |
