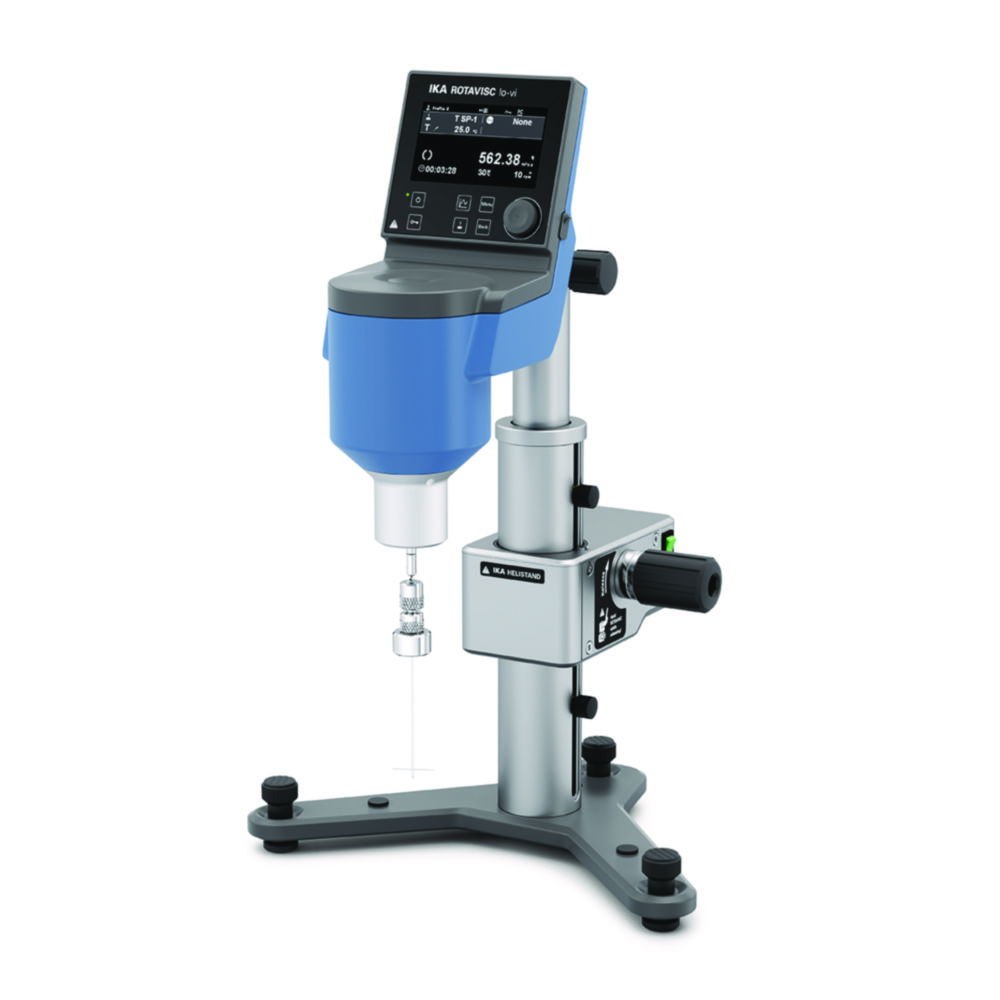

Viscometers ROTAVISC lo-vi HELI Complete
Scope of supply: Viscometers, stand HELISTAND, spindles SP set-1 and T-SP-SET, temperature sensor PT 100.8, protective bracket
- Specifications
- Rotation speed: 0.01 … 200 rpm
- Temperature range: -100 … 300 °C
- Accuracy: 1 %
- Repeatability: 0,2 %
- Stroke max.: 142 mm
- Dimensions stand (L x W x H): 351 x 372 x 629 mm
- Weight: 7.1 kg
- Power supply: 100 … 240 V, 50/60 Hz
- Protection class acc. to DIN EN 60529: IP 40
Toote variatsioonid
| Viscosity range mPas | Torque mNm | Depth | Dimensions (WxDxH) | Height | Interfaces | IP code | Max. speed | Max. voltage | Min. speed | Min. voltage | Catalog number | Plug type | Power supply | Reproducibility | Speed | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 ... 6000000 | 0.0673 | 372 mm | 351 x 372 x 629 mm | 629 mm | RS 232, USB | IP 40 | 200 1/min | 240 V | 0.01 1/min | 100 V | 4.697 055 | CH | 100 ... 240 V, 50/60 Hz | 0,2 % | 0.01 ... 200 1/min | ROTAVISC lo-vi HELI Complete | 7.1 kg | 351 mm | 1.00 | ||
| 15 ... 6000000 | 0.0673 | 372 mm | 351 x 372 x 629 mm | 629 mm | RS 232, USB | IP 40 | 200 1/min | 240 V | 0.01 1/min | 100 V | 4.697 053 | EU | 100 ... 240 V, 50/60 Hz | 0,2 % | 0.01 ... 200 1/min | ROTAVISC lo-vi HELI Complete | 7.1 kg | 351 mm | 1.00 | ||
| 15 ... 6000000 | 0.0673 | 372 mm | 351 x 372 x 629 mm | 629 mm | RS 232, USB | IP 40 | 200 1/min | 240 V | 0.01 1/min | 100 V | 4.697 054 | UK | 100 ... 240 V, 50/60 Hz | 0,2 % | 0.01 ... 200 1/min | ROTAVISC lo-vi HELI Complete | 7.1 kg | 351 mm | 1.00 |
