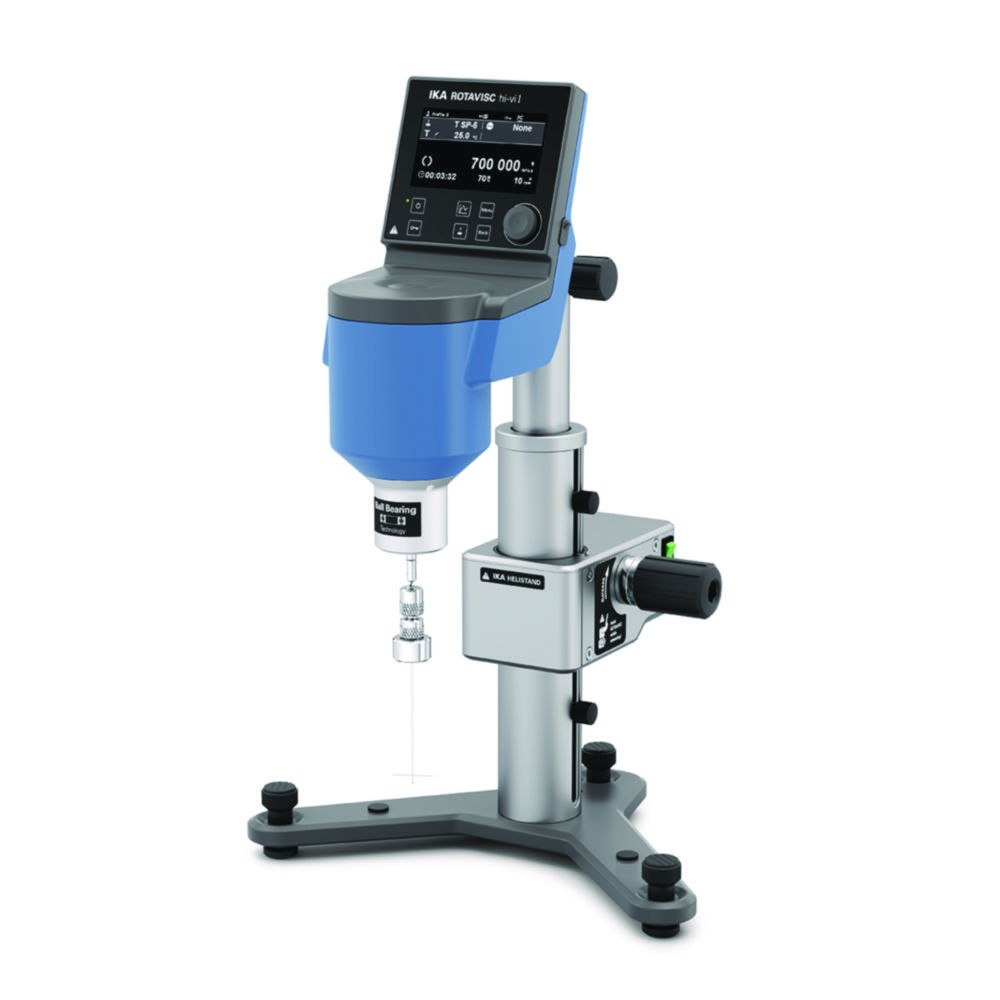

Viscometers ROTAVISC SBS HELI Complete
Equipped with advanced ball bearing technology for demanding applications such as high sample throughput or frequent spindle changes
Scope of supply: Viscometers, stand HELISTAND, spindles SP set-2 and T-SP-SET, temperature sensor PT 100.8, protective bracket
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Height | Interfaces | IP code | Max. speed | Max. torque | Max. Viscosity | Max. voltage | Min. speed | Min. viscosity | Min. voltage | Catalog number | Plug type | Power supply | Reproducibility | Speed | Torque | Type | Viscosity | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 372 mm | 351 x 372 x 629 mm | 629 mm | RS 232, USB | IP 40 | 200 1/min | 0.7187 mNm | 40000000 mPa·s | 240 V | 0.01 1/min | 100 mPa·s | 100 V | 4.697 066 | UK | 100 ... 240 V, 50/60 Hz | 0,2 % | 0.01 ... 200 1/min | 0.7187 mNm | ROTAVISC SBS me-vi HELI Complete | 100 ... 40000000 mPa·s | 7.1 kg | 351 mm | 1.00 | ||
| 372 mm | 351 x 372 x 629 mm | 629 mm | RS 232, USB | IP 40 | 200 1/min | 0.7187 mNm | 40000000 mPa·s | 240 V | 0.01 1/min | 100 mPa·s | 100 V | 4.697 067 | CH | 100 ... 240 V, 50/60 Hz | 0,2 % | 0.01 ... 200 1/min | 0.7187 mNm | ROTAVISC SBS me-vi HELI Complete | 100 ... 40000000 mPa·s | 7.1 kg | 351 mm | 1.00 | ||
| 372 mm | 351 x 372 x 629 mm | 629 mm | RS 232, USB | IP 40 | 200 1/min | 0.7187 mNm | 40000000 mPa·s | 240 V | 0.01 1/min | 100 mPa·s | 100 V | 4.697 065 | EU | 100 ... 240 V, 50/60 Hz | 0,2 % | 0.01 ... 200 1/min | 0.7187 mNm | ROTAVISC SBS me-vi HELI Complete | 100 ... 40000000 mPa·s | 7.1 kg | 351 mm | 1.00 | ||
| 372 mm | 351 x 372 x 629 mm | 629 mm | RS 232, USB | IP 40 | 200 1/min | 5.7496 mNm | 320000000 mPa·s | 240 V | 0.01 1/min | 800 mPa·s | 100 V | 4.697 072 | UK | 100 ... 240 V, 50/60 Hz | 0,2 % | 0.01 ... 200 1/min | 5.7496 mNm | ROTAVISC SBS hi-vi II HELI Complete | 800 ... 320000000 mPa·s | 7.1 kg | 351 mm | 1.00 | ||
| 372 mm | 351 x 372 x 629 mm | 629 mm | RS 232, USB | IP 40 | 200 1/min | 1.4374 mNm | 80000000 mPa·s | 240 V | 0.01 1/min | 200 mPa·s | 100 V | 4.697 070 | CH | 100 ... 240 V, 50/60 Hz | 0,2 % | 0.01 ... 200 1/min | 1.4374 mNm | ROTAVISC SBS hi-vi I HELI Complete | 200 ... 80000000 mPa·s | 7.1 kg | 351 mm | 1.00 | ||
| 372 mm | 351 x 372 x 629 mm | 629 mm | RS 232, USB | IP 40 | 200 1/min | 5.7496 mNm | 320000000 mPa·s | 240 V | 0.01 1/min | 800 mPa·s | 100 V | 4.697 071 | EU | 100 ... 240 V, 50/60 Hz | 0,2 % | 0.01 ... 200 1/min | 5.7496 mNm | ROTAVISC SBS hi-vi II HELI Complete | 800 ... 320000000 mPa·s | 7.1 kg | 351 mm | 1.00 | ||
| 372 mm | 351 x 372 x 629 mm | 629 mm | RS 232, USB | IP 40 | 200 1/min | 5.7496 mNm | 320000000 mPa·s | 240 V | 0.01 1/min | 800 mPa·s | 100 V | 4.697 073 | CH | 100 ... 240 V, 50/60 Hz | 0,2 % | 0.01 ... 200 1/min | 5.7496 mNm | ROTAVISC SBS hi-vi II HELI Complete | 800 ... 320000000 mPa·s | 7.1 kg | 351 mm | 1.00 | ||
| 372 mm | 351 x 372 x 629 mm | 629 mm | RS 232, USB | IP 40 | 200 1/min | 1.4374 mNm | 80000000 mPa·s | 240 V | 0.01 1/min | 200 mPa·s | 100 V | 4.697 069 | UK | 100 ... 240 V, 50/60 Hz | 0,2 % | 0.01 ... 200 1/min | 1.4374 mNm | ROTAVISC SBS hi-vi I HELI Complete | 200 ... 80000000 mPa·s | 7.1 kg | 351 mm | 1.00 | ||
| 372 mm | 351 x 372 x 629 mm | 629 mm | RS 232, USB | IP 40 | 200 1/min | 1.4374 mNm | 80000000 mPa·s | 240 V | 0.01 1/min | 200 mPa·s | 100 V | 4.697 068 | EU | 100 ... 240 V, 50/60 Hz | 0,2 % | 0.01 ... 200 1/min | 1.4374 mNm | ROTAVISC SBS hi-vi I HELI Complete | 200 ... 80000000 mPa·s | 7.1 kg | 351 mm | 1.00 |
