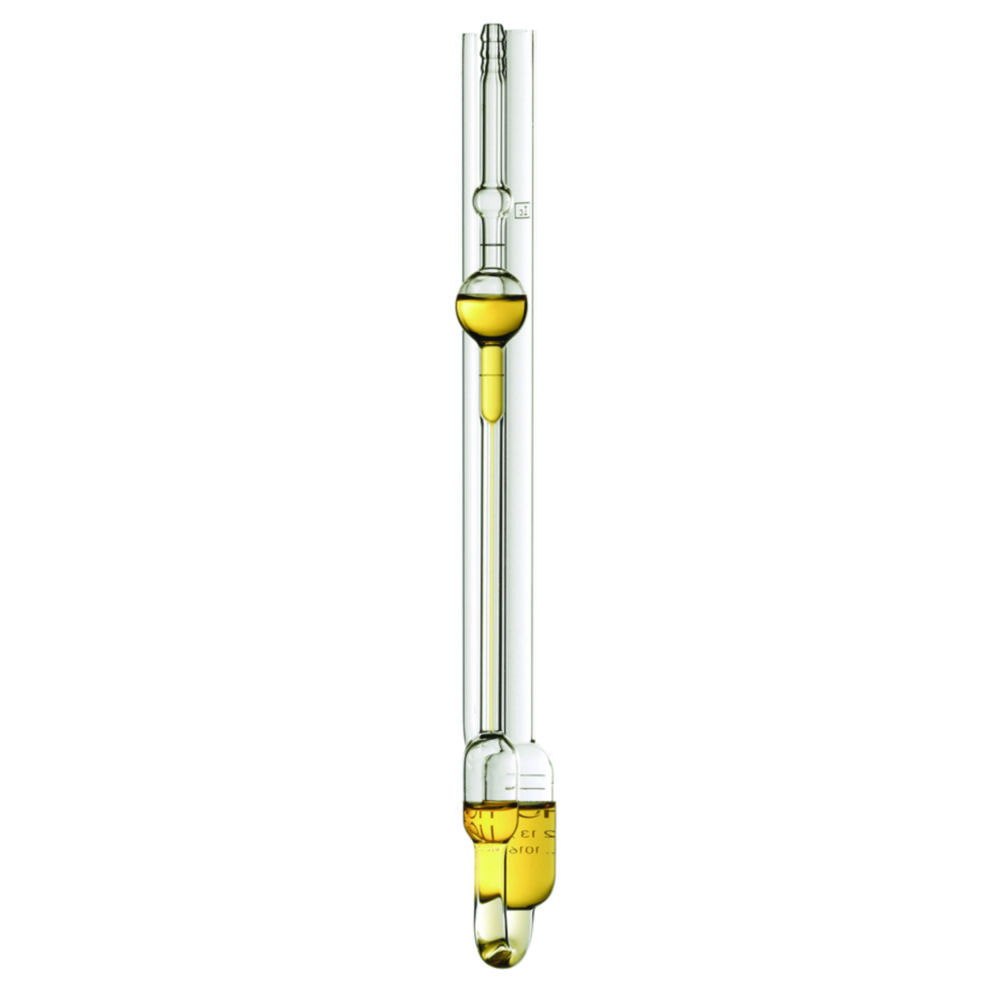

Viscometers Ubbelohde, glass, kinematic

ISO 3105, DIN 51562.
For manual (type 501 ..) or automatic (type 532 ..) measurements.
Constants documented in manufacturer’s certificate.

Toote variatsioonid

Calibration	Capacity	Constant	Int. Ø	Length	Measured range	Measurement	No. of capillary	Catalog number	Standard	Type	PK
Yes	15 ... 20 ml	10	3.60 mm	290 mm	1,000 ... 10,000 mm²/s	Automatical	IV	9.268 240	ISO 3105, DIN 51562	532 40	1.00
Yes	15 ... 20 ml	0.001	0.36 mm	290 mm	0.3 ... 1 mm²/s	Automatical	141237	7.023 176	ISO 3105, DIN 51562	532 00	1.00
Yes	15 ... 20 ml	0.5	1.69 mm	290 mm	50 ... 500 mm²/s	Automatical	IIa	7.023 178	ISO 3105, DIN 51562	532 21	1.00
Yes	15 ... 20 ml	3	2.65 mm	290 mm	300 ... 3,000 mm²/s	Automatical	IIIc	9.268 233	ISO 3105, DIN 51562	532 33	1.00
Yes	15 ... 20 ml	0.05	0.95 mm	290 mm	5 ... 50 mm²/s	Automatical	Ia	7.023 177	ISO 3105, DIN 51562	532 11	1.00
Yes	15 ... 20 ml	0.1	1.13 mm	290 mm	10 ... 100 mm²/s	Automatical	II	9.268 220	ISO 3105, DIN 51562	532 20	1.00
Yes	15 ... 20 ml	1	2.01 mm	290 mm	100 ... 1,000 mm²/s	Automatical	III	9.268 230	ISO 3105, DIN 51562	532 30	1.00
Yes	15 ... 20 ml	0.3	1.50 mm	290 mm	30 ... 300 mm²/s	Automatical	IIc	9.268 223	ISO 3105, DIN 51562	532 23	1.00
Yes	15 ... 20 ml	5	3.00 mm	290 mm	500 ... 5,000 mm²/s	Automatical	IIIa	7.023 179	ISO 3105, DIN 51562	532 31	1.00
Yes	15 ... 20 ml	0.03	0.84 mm	290 mm	3 ... 30 mm²/s	Automatical	Ic	9.268 213	ISO 3105, DIN 51562	532 13	1.00
Yes	15 ... 20 ml	0.5	1.69 mm	290 mm	50 ... 500 mm²/s	Manual	IIa	9.268 121	ISO 3105, DIN 51562	501 21	1.00
Yes	15 ... 20 ml	5	3.00 mm	290 mm	500 ... 5,000 mm²/s	Manual	IIIa	9.268 131	ISO 3105, DIN 51562	501 31	1.00
Yes	15 ... 20 ml	10	3.60 mm	290 mm	1,000 ... 10,000 mm²/s	Manual	IV	9.268 140	ISO 3105, DIN 51562	501 40	1.00
Yes	15 ... 20 ml	0.003	0.47 mm	290 mm	0.5 ... 3 mm²/s	Manual	0c	9.268 103	ISO 3105, DIN 51562	501 03	1.00
Yes	15 ... 20 ml	0.03	0.84 mm	290 mm	3 ... 30 mm²/s	Manual	Ic	9.268 113	ISO 3105, DIN 51562	501 13	1.00
Yes	15 ... 20 ml	3	2.65 mm	290 mm	300 ... 3,000 mm²/s	Manual	IIIc	9.268 133	ISO 3105, DIN 51562	501 33	1.00
Yes	15 ... 20 ml	0.005	0.53 mm	290 mm	0.8 ... 5 mm²/s	Automatical	0a	9.268 201	ISO 3105, DIN 51562	532 01	1.00
Yes	15 ... 20 ml	0.05	0.95 mm	290 mm	5 ... 50 mm²/s	Manual	Ia	9.268 111	ISO 3105, DIN 51562	501 11	1.00
Yes	15 ... 20 ml	0.01	0.63 mm	290 mm	1.2 ... 10 mm²/s	Automatical	I	9.268 210	ISO 3105, DIN 51562	532 10	1.00
Yes	15 ... 20 ml	0.001	0.36 mm	290 mm	0.3 ... 1 mm²/s	Manual	141237	9.268 100	ISO 3105, DIN 51562	501 00	1.00
Yes	15 ... 20 ml	1	2.01 mm	290 mm	100 ... 1,000 mm²/s	Manual	III	9.268 130	ISO 3105, DIN 51562	501 30	1.00
Yes	15 ... 20 ml	0.3	1.50 mm	290 mm	30 ... 300 mm²/s	Manual	IIc	9.268 123	ISO 3105, DIN 51562	501 23	1.00
Yes	15 ... 20 ml	0.005	0.53 mm	290 mm	0.8 ... 5 mm²/s	Manual	0a	9.268 101	ISO 3105, DIN 51562	501 01	1.00
Yes	15 ... 20 ml	0.003	0.47 mm	290 mm	0.5 ... 3 mm²/s	Automatical	0c	9.268 203	ISO 3105, DIN 51562	532 03	1.00
Yes	15 ... 20 ml	0.01	0.63 mm	290 mm	1.2 ... 10 mm²/s	Manual	I	9.268 110	ISO 3105, DIN 51562	501 10	1.00
Yes	15 ... 20 ml	0.1	1.13 mm	290 mm	10 ... 100 mm²/s	Manual	II	9.268 120	ISO 3105, DIN 51562	501 20	1.00
