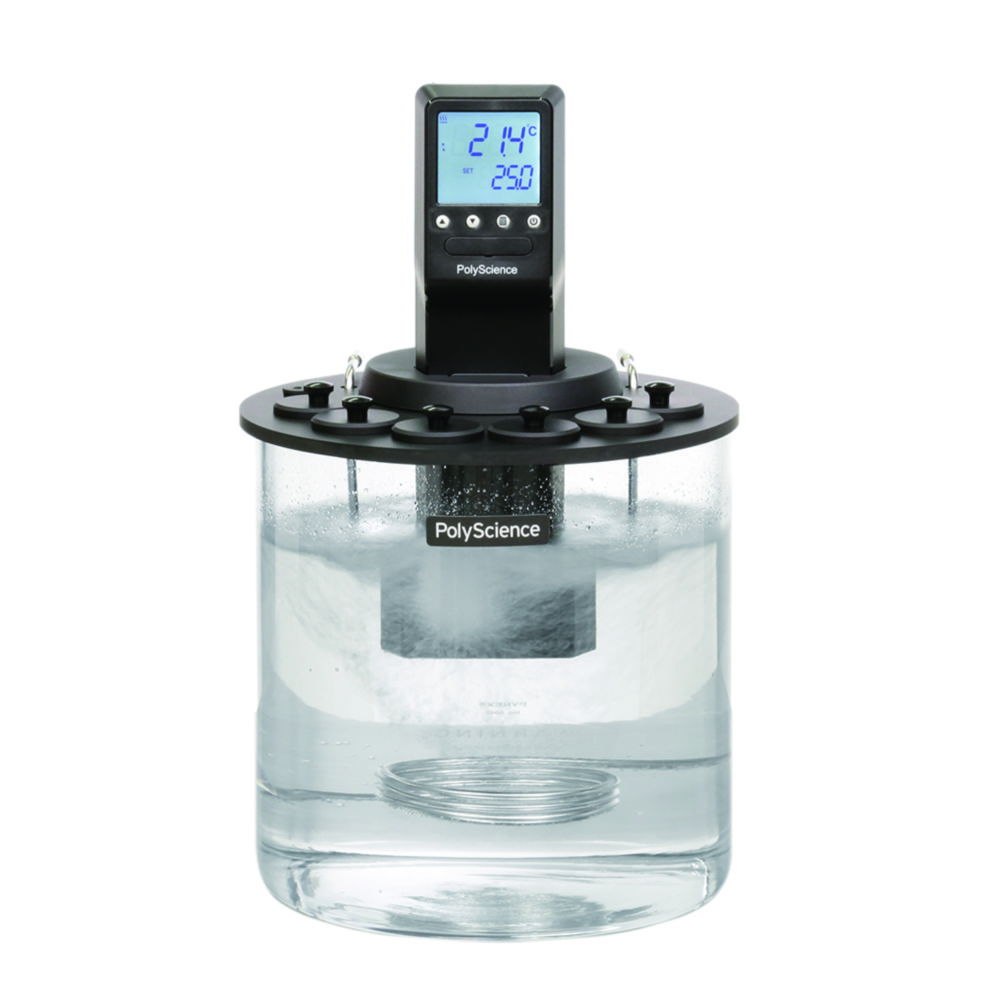

Viscosity baths MX
Viscosity baths are suitable for precise temperature control tasks and have been specially designed for viscosity tests with all common capillary viscometers including ASTM D0445. 6 viscosimeter openings (Ø 51 mm) are located in the insulating and chemical-resistant DuraTop™ bath top. The devices are additionally equipped with a tap water cooling coil and an over-temperature protection.
- Round glass tank
- MX temperature controller
- Pump with 1 speed and external circulation in closed loop
- Single-point calibration capability
Toote variatsioonid
| Catalog number | PK | Bath depth | Ext. height | Heating capacity | Max. flow rate | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | Temp. Stability | Temperature | Type | Type of display | Weight | Ext. Ø | Power supply | Temperature | Volume bath | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.982 747 | 1.00 | 279 mm | 521 mm | 1100 W | 135 °C | 240 V·AC | 17 l | -10 °C | ±0,07 °C | RT | MX17 | LCD | 15.9 kg | 318 mm | 240 V·AC, 50 Hz | RT+10 ... 135 °C | 17 l |
