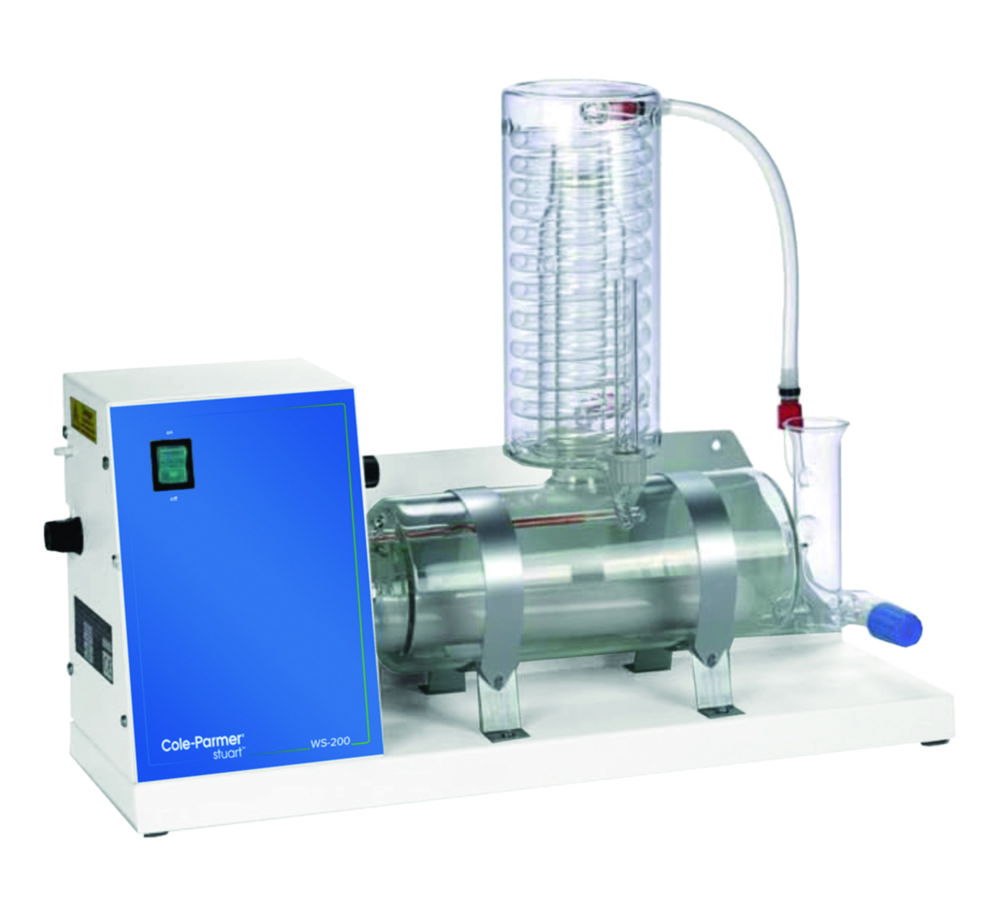

Water stills WS-100-4 / WS-200-4-220

For economic production of high purity distilled water. The devices are eqipped with 2 independent safety thermostats that prevent from overheating in the event of failure of the water supply. With built in acid addition funnel and stopcock for easy descaling without dismantling. Screwthreads are incorporated on all water connections so hoses can be fitted and removed easily and safely without risk of breakage. The condenser design ensures that the droplets of distilled water stay in contact with the cooling coil as long as possible for providing cold distilled water.

• Glass construction
• Automatic switch-off prevents overflow
• Pre-drilled stand for easy wall mounting
• With metal/silica sheated metal heaters

• Specifications WS-100-4 // WS-200-4-220
• pH range: 5.0…6.5
• Conductivity: 3.0…4.0 µS/cm // 1.0…2.0 µS/cm
• Resistance: 0.25…0.3 mΩ/cm // 0.5…1.0 mΩ/cm
• Water consumption:
  Output: approx. 60 l/h
  4 l/h
• Power consumption:
  Dimensions MERIT (W x T x H):
  Dimensions DISTINCTION (W x T x H): 3000 W
  500 x 150 x 450 mm
  540 x 160 x 410 mm
• Power supply: 220-240 V, 50-60 Hz
