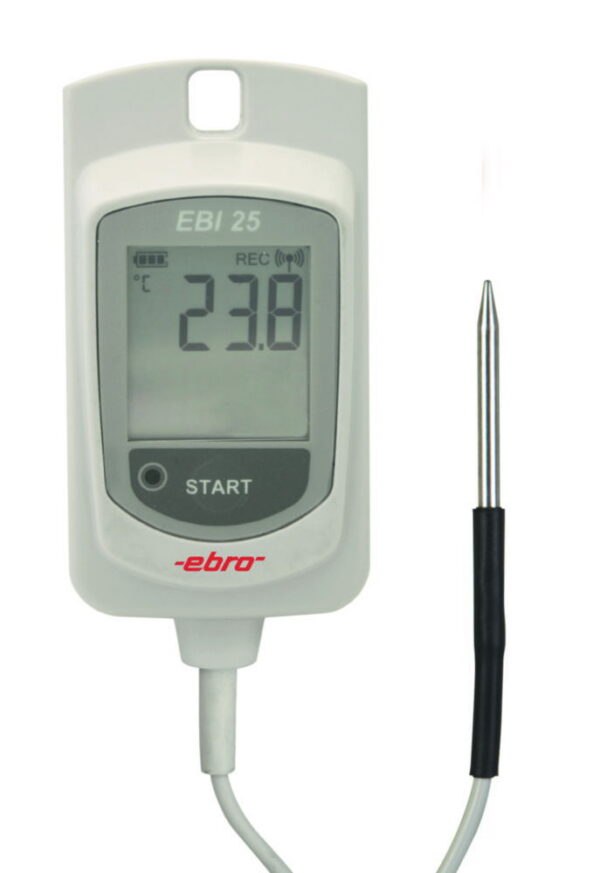

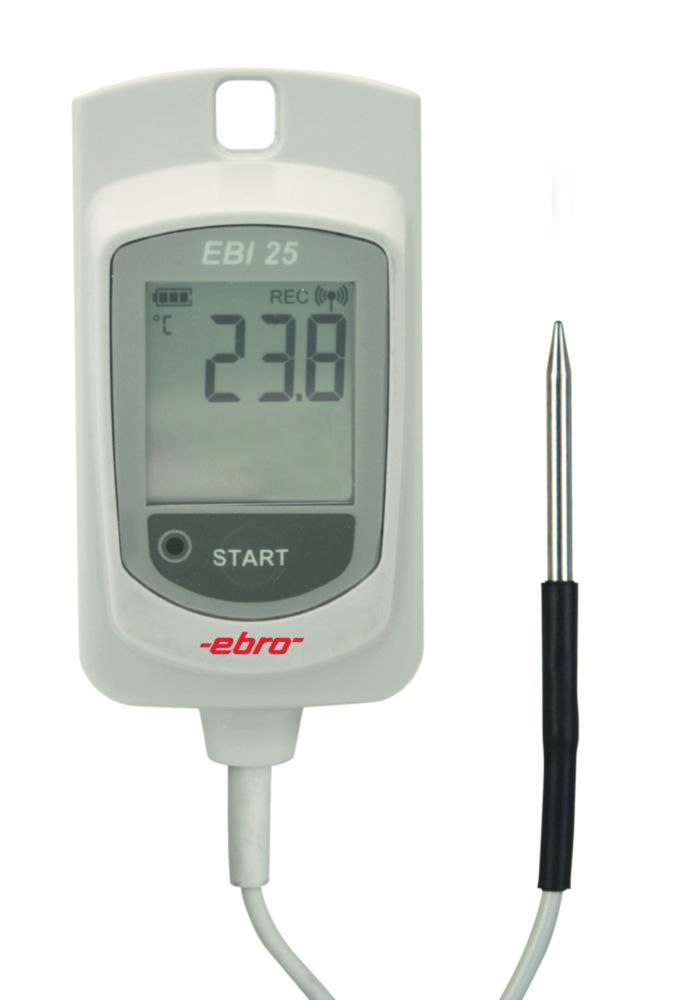

Wireless temperature data loggers with external NTC temperature sensor EBI 25-TE

Wireless temperature data loggers for storage rooms and refrigerated cabinets.

• Readout via wireless interface
• Replaceable battery
• High protection class IP67
• LCD display
• Memory for 288 values

The IF 400 base station and the Winlog.web/Winlog.wave PC software are required for programming and evaluating the EBI 25-TE data loggers.

Scope of supply: Temperature data logger, operating manual

• Specifications
• Sensor:
  Channels:
  Measuring cycle: NTC
  1
  1 min. … 24 Hrs. user definable
• Measuring range EBI 25-T:
  Measuring range EBI 25-TE: -30 … 60 °C
  -40 … 85 °C
• Accuracy EBI 25-T (±1 digit): ±0.5 °C (-20 … 40 °C)
  ±0.8 °C (40.1 … 60 °C)
• Accuracy EBI 25-TE (±1 digit): ±0.5 °C (-20 °C … 40 °C)
  ±0.8 °C (-30 °C … -20 °C; 40 °C … 60 °C)
  ±1.5 °C (-40 °C … -30 °C; 60 °C … 85 °C)
• Resolution: 0.1 °C
• IP code: IP 67
• Battery life: approx. 2 years
• Operation and storage temperature: -30 … 60 °C / -40 … 85 °C
• Dimensions (W x D x H): 48 x 27 x 95 mm
• Power supply: 1 x Lithium battery 3.6 V, replaceable
