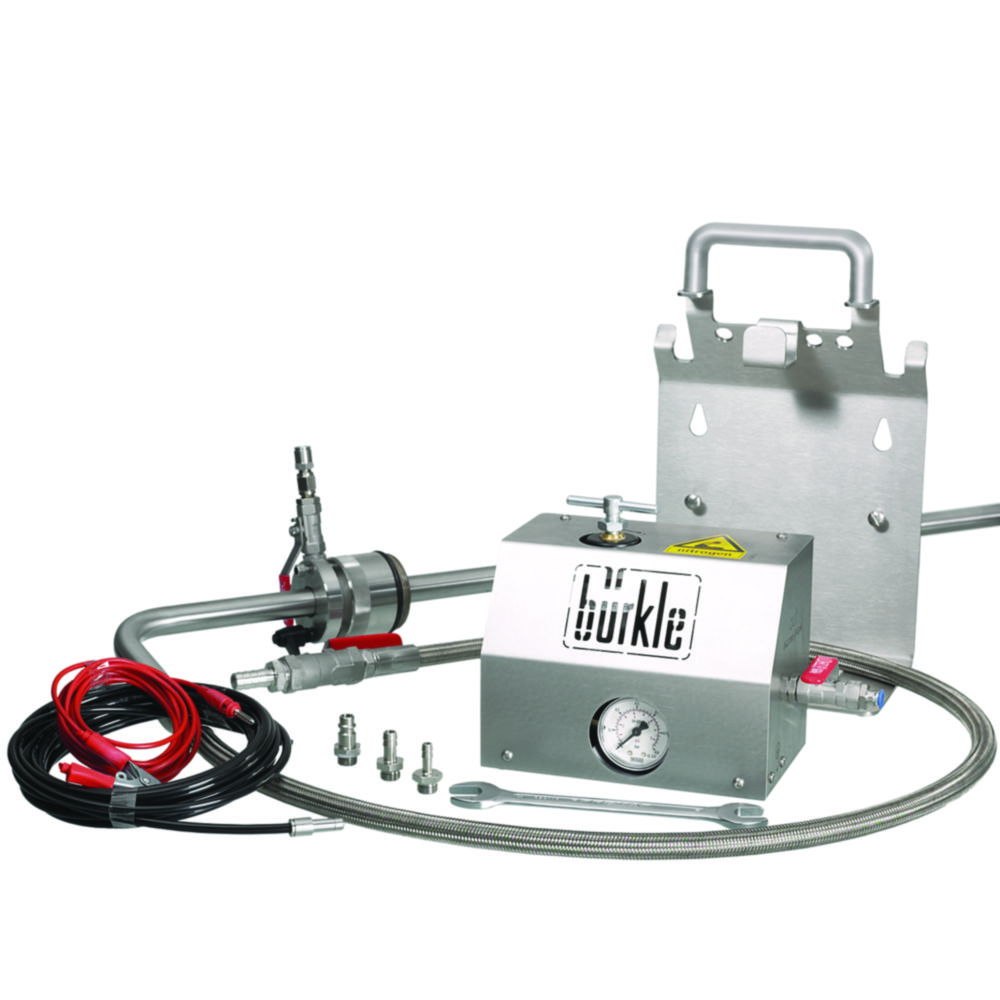

Withdrawal systems for solvents, stainless steel, with discharge hose

Operation with compressed air or inert gas (e.g. nitrogen), which creates an overpressure in the container. Hazardous media can be safely dispensed and accurately metered using the stopcock.

• For UN tanks and barrels (test pressure at least 150 kpa)
• Variable inlet pressure between 3 and max. 10 bar
• No escape of vapours containing solvents due to stopcocks
• Wetted parts are made of stainless steel and PTFE
• Transportable or permanently mountable

Caution! When working with combustible liquids, the tank, pump and pressure regulating unit must be earthed! Use antistatic set in addition for pump!

Scope of supply: Transport stand, key, grounding cable, pressure regulation unit, connecting tubing, adapter for compressed air supply
