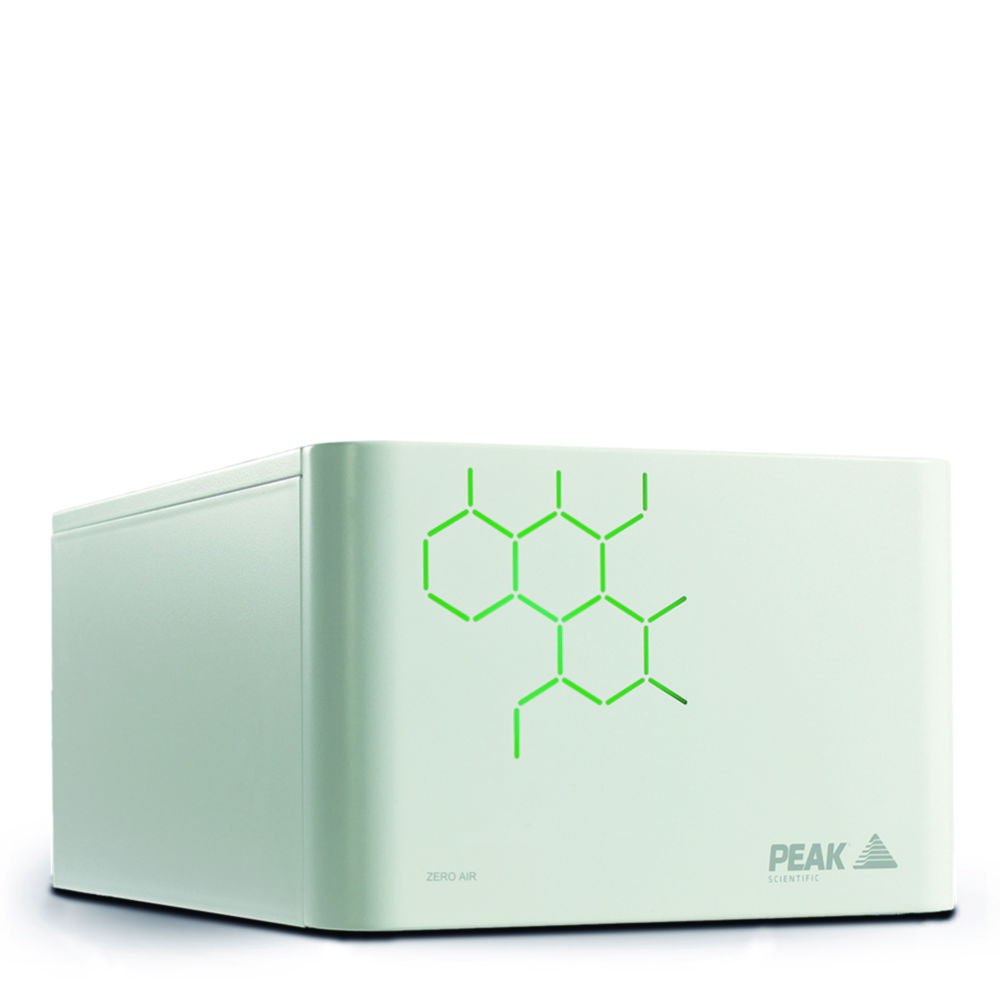

Zero Air generators Precision Zero Air
Generates clean, dry and hydrocarbon-free air for FIDs in GC. Also meets the purity requirements for trace analysis.
- Fail-safe, continuous generation of zero air
- Hydrocarbon content <0.05 ppm
- Modular design and combination option with other PEAK Precision devices
- Minimal maintenance
- No replacement of the catalyst chamber required
- Compatible with the Precision Air Compressor
- Status display
Scope of supply: Zero air generator, 3 m PTFE tubing, 1/4″ compression fitting, 1/8″ compression fitting, mains power cable for EU, UK and US
- Specifications
- Hydrocarbon content: <0.05 ppm
- Permissible ambient temperature: 5 … 35 °C
- Power supply: 110/230 V, 50/60 Hz
- Warranty: 1 year
Toote variatsioonid
| Type | Pressure max. bar | Flow rate L / min. | External dimensions (W x D x H) mm | Weight kg | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|
| Precision Zero Air 7L | 5.5 (80 psi) | 7.0 | 380 x 540 x 256 | 25 | 4.669 283 | 1.00 | ||
| Precision Zero Air 18L | 5.5 (80 psi) | 18.0 | 380 x 540 x 256 | 25 | 4.669 284 | 1.00 | ||
| Precision Zero Air 30L | 6.9 (100 psi) | 30.0 | 380 x 540 x 405 | 41 | 4.669 285 | 1.00 | ||
| Precision Zero Air 3.5L | 5.5 (80 psi) | 3.5 | 380 x 540 x 156 | 16 | 4.669 282 | 1.00 | ||
| Precision Zero Air 1.5L | 5.5 (80 psi) | 1.5 | 380 x 540 x 156 | 16 | 4.669 281 | 1.00 |
