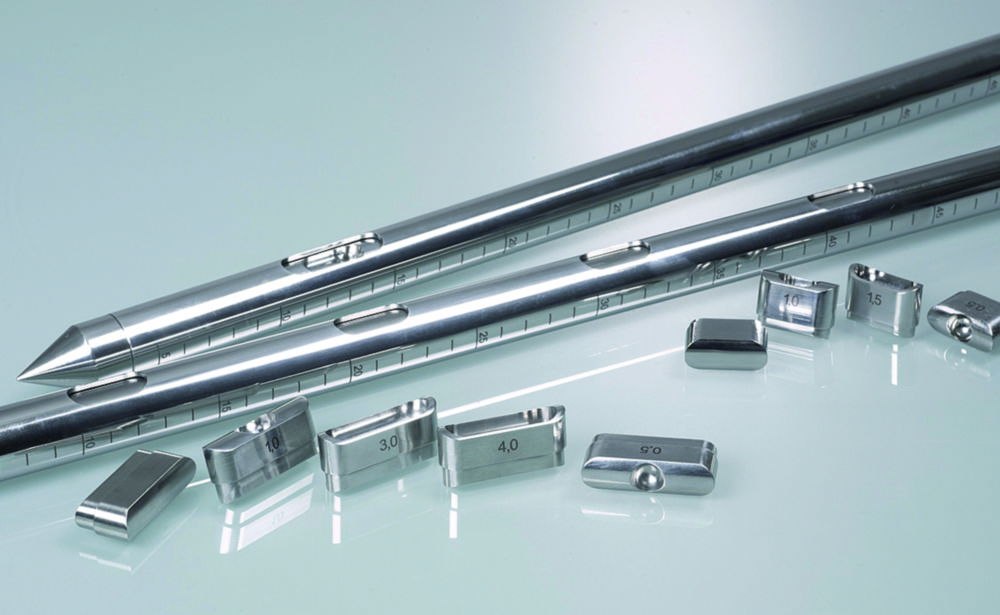

Zone samplers, Novartos Uno, stainless steel V4A
With the Novartos Uno sampler, target point samples can be taken from a predefined sample zone. Therefore the sample chambers are fitted with two or three sample inserts. It is possible to withdraw a double- or triple-sample without inserting the lance repeatedly into the bulk material. Mixing is mainly prevented in this way.
- Stainless steel V4A (1.4404 / 1.4571)
- Sampling according to FDA guidelines for Unit-Dose-Sampling
- Precision-fit, easily interchangeable sample inserts (please order separately)
- The insertion depths can easily be read from the laser-engraved depth scale
- Groove-free and electro-polished
- Food-safe
- Autoclavable
Toote variatsioonid
| Autoclavable | Ø | Food safe | Length | Material | No. of chambers | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| Yes | 25 mm | Yes | 1400 mm | Stainless steel 1.4404/1.4571 | 2 | 6.231 082 | 1.00 | ||
| Yes | 25 mm | Yes | 1400 mm | Stainless steel 1.4404/1.4571 | 3 | 4.680 870 | 1.00 | ||
| Yes | 25 mm | Yes | 1000 mm | Stainless steel 1.4404/1.4571 | 3 | 4.680 869 | 1.00 | ||
| Yes | 25 mm | Yes | 1000 mm | Stainless steel 1.4404/1.4571 | 2 | 6.258 252 | 1.00 | ||
| Yes | 25 mm | Yes | 600 mm | Stainless steel 1.4404/1.4571 | 3 | 4.680 868 | 1.00 | ||
| Yes | 25 mm | Yes | 600 mm | Stainless steel 1.4404/1.4571 | 2 | 6.291 295 | 1.00 |
